Pferd single-Twist Pencil Brush PBGS, 0.50mm
Available
The Pferd PBGS is a single-twist knotted pencil (end) brush. It has a 6mm shank and steel wire filament. The range has 2 options, all 10 x 10mm (brush diameter and cup diameter), in filament diameters of 0.35mm and 0.50mm.
The PBGS is suited to special applications that call for a particularly flexible single-knot brush. Filament diameters are 0.35mm and 0.50mm. Optimum speed is 5,000 to 7,500rpm and maximum speed is 10,000rpm. Steel wire: high tensile and bending fatigue strength, temperature resistance up to 300°C. Key features: particularly flexible single-knot brush, the knot is less likely to unravel, which gives access to hard-to-reach inside corners.
Where this product is used
- Suited to special applications that call for a particularly flexible single-knot brush
- Steel wire is highly suitable for steel and cast iron, and suitable for plastics

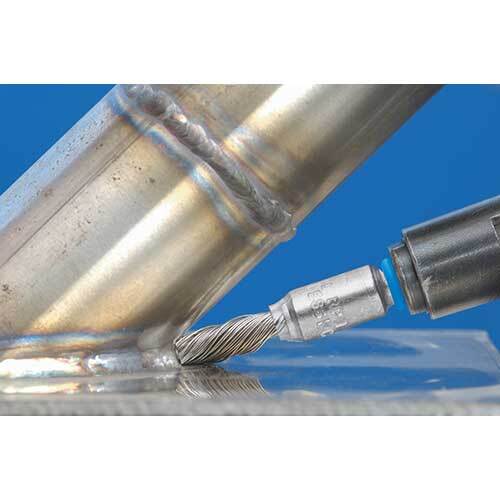

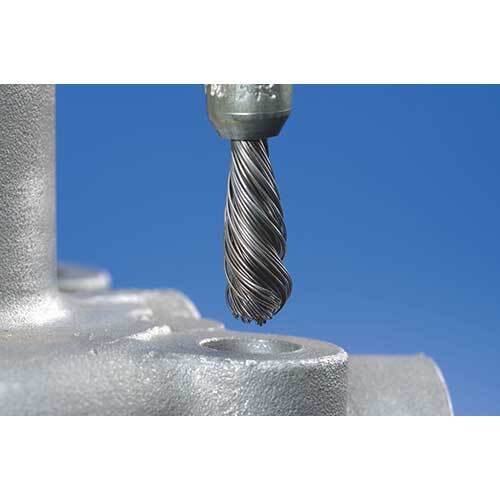

- Access to inside corners
Features
- Brush diameter and cup diameter: 10 x 10mm
- 6mm shank
- Steel wire (ST), filament diameters 0.35mm and 0.50mm
- Optimum speed 5,000 to 7,500rpm, maximum speed 10,000rpm
- Particularly flexible single-knot brush
- The knot is less likely to unravel, which gives access to hard-to-reach inside corners
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Sizes (D x DC) | 10 x 10mm |
| Brush diameter (D) | 10mm |
| Cup diameter (DC) | 10mm |
| Shank diameter (DS) | 6mm |
| Filament length (LT) | 25mm |
| Overall length (L) | 65mm |
| Filament material | Steel wire (ST) |
| Optimum speed | 5,000 to 7,500rpm |
| Maximum speed | 10,000rpm |
Choosing the right option
Match the 6mm shank to your chuck or collet. The recommended cutting speed is 5 to 15 m/s for end brushes, depending on the application and below the maximum permitted speed. Steel wire is rated not suitable for stainless steel, aluminium or non-ferrous metals. Never exceed the maximum permitted speed marked on the brush, its label and .
The same single-twist brush in stainless steel wire and in 0.20mm steel wire: Pferd Single-Twist Pencil Brush PBGS, Stainless Steel Wire, 10 x 10mm, 6mm Shank, 0.20 to 0.50mm, Pferd Single-Twist Pencil Brush PBGS, Steel Wire 0.20mm, 10 x 10mm, 6mm Shank - Pack of 10.
| Option | Part number | SKU |
|---|---|---|
| 0.35mm | 43218002 | A0155388 |
| 0.50mm | 43218003 | A0155389 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pferd Single-Twist Pencil Brush PBGS, Steel Wire, 10 x 10 mm, 6 mm Shank, 0.35 and 0.50 mm: 0.50 mm
SKU: A0155389 | Model: 43218003
Pferd 43218003: steel wire single-twist knotted pencil (end) brush, 10 x 10mm, 6mm shank. Optimum speed 5,000 to 7,500rpm.
