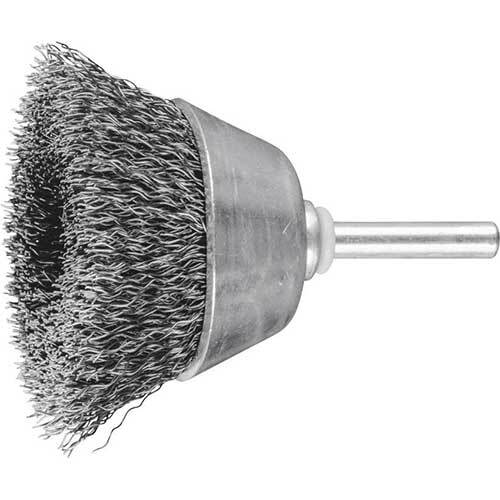

Pferd shank-Mounted Cup Brush TBU, 50 x 10mm
Available

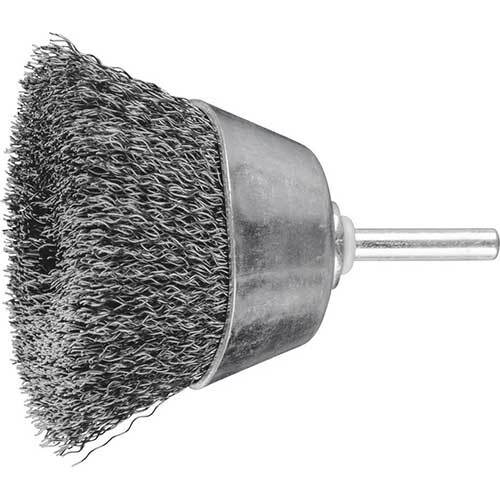

The Pferd TBU is a shank-mounted crimped cup brush. It has a 6mm shank and steel wire filament. The range has 2 options: 50 x 10mm and 60 x 15mm (brush diameter and face width).

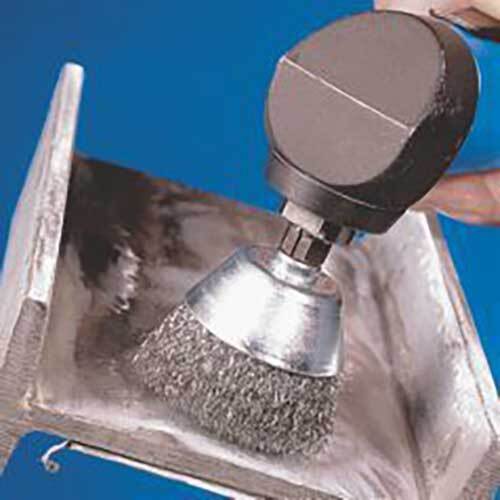

The TBU is suited to cleaning, derusting and smoothing, and removal of corrosion and paint, particularly on large, flat and easily accessible surfaces with the entire brush face applied to the workpiece. Filament diameter is 0.30mm. Optimum and maximum speeds depend on the size: maximum speeds run from 4,500 to 10,500rpm, so check the figures for the item you choose. Steel wire: high tensile and bending fatigue strength, temperature resistance up to 300°C. Key features: face-down use with the entire brush face on the workpiece, highly flexible, so it adjusts to the workpiece contour, creates fine surfaces.
Where this product is used
- Suited to cleaning, derusting and smoothing, and removal of corrosion and paint, particularly on large, flat and easily accessible surfaces with the entire brush face applied to the workpiece
- Steel wire is highly suitable for steel and cast iron, and suitable for plastics
Features
- Brush diameter and face width: 50 x 10mm and 60 x 15mm
- 6mm shank
- Steel wire (ST), filament diameter 0.30mm
- Face-down use with the entire brush face on the workpiece
- Highly flexible, so it adjusts to the workpiece contour
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Sizes (D x WF) | 50 x 10mm and 60 x 15mm |
| Shank diameter (DS) | 6mm |
| Filament length (LT) | 20mm |
| Filament diameter (DF) | 0.30mm |
| Filament material | Steel wire (ST) |
Choosing the right option
Match the 6mm shank to your chuck or collet. The recommended cutting speed is 15 to 45 m/s for cup brushes, depending on the application and below the maximum permitted speed. Steel wire is rated not suitable for stainless steel, aluminium or non-ferrous metals. Never exceed the maximum permitted speed marked on the brush, its label and .
The 50 x 10mm brush in stainless steel wire, and the universal shank-mounted cup brush: Pferd Shank-Mounted Cup Brush TBU, Stainless Steel Wire 0.30mm, 50 x 10mm - Pack of 10, Pferd Universal Shank-Mounted Cup Brush TBU, Steel Wire 0.30mm, 50 x 15mm, 6.35mm Shank (43740003).
| Option | Part number | SKU |
|---|---|---|
| 50 x 10mm | 43210001 | A0160972 |
| 60 x 15mm | 43211001 | A0160973 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pferd Shank-Mounted Cup Brush TBU, Steel Wire 0.30 mm, 6 mm Shank, 50 x 10 and 60 x 15 mm: 50 x 10 mm
SKU: A0160972 | Model: 43210001
Pferd 43210001: shank-Mounted Cup Brush TBU, 50 x 10mm. Designation: TBU 5010/6 ST 0,30. Brush diameter (D): 50mm.
