Pferd TC Cutter Set 1414 Allround - 21901414

• The 1414 ALLROUND set contains three versatile tungsten carbide burrs for use on important materials such as steel and cast steel, stainless steel (INOX), non-ferrous metals, and cast iron in the most common shapes and dimensions.

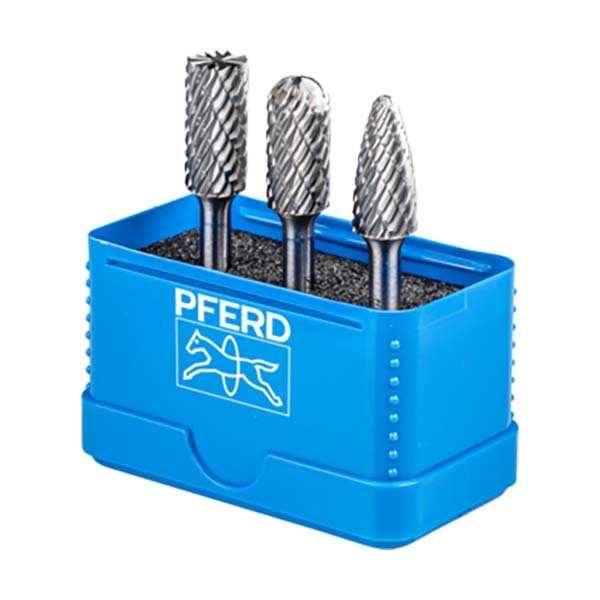

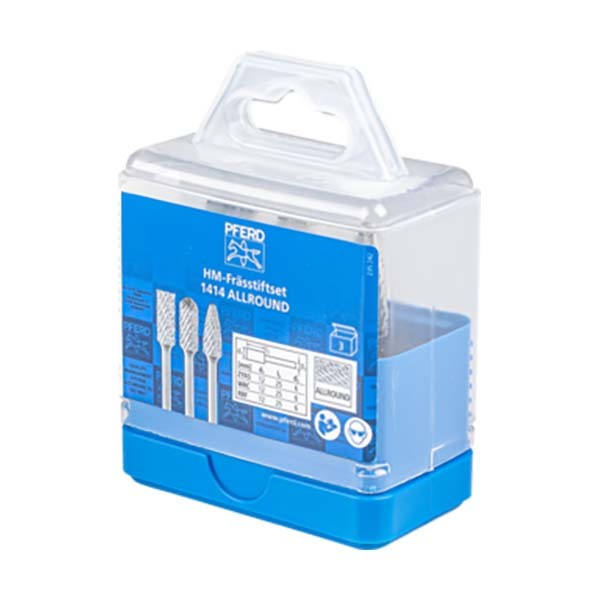

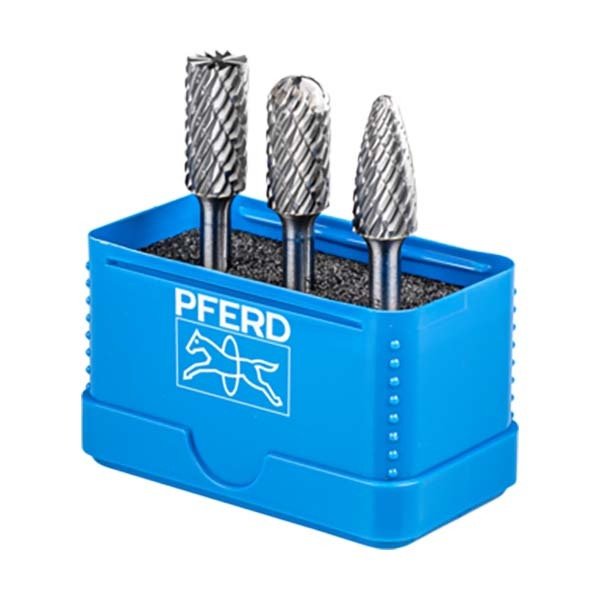

• The sturdy plastic box protects the tools from dirt and damage.
• Tungsten carbide high-performance burr set ALLROUND 3-piece burr dia. 12 mm shank dia. 6 mm universal coarse

Advantages

• Significantly better stock removal rate than burrs with a conventional cross-cut.
• Saves time and money thanks to its very high stock removal rate on key materials.
• Comfortable working thanks to reduced vibration and less noise.
• The highly accurate concentricity enables impact­free working without creating chatter marks and the drive is subject to less wear.

Safety Notes

• The very high stock removal rate can cause discolouration on the shank.
• This does not constitute a safety risk.

Materials that can be worked

• Annealed cast iron
• Black annealed cast iron (GTS, GJMB)
• Brass
• Bronze
• Case-hardened steels
• Cast iron
• Cast steel
• Copper
• Grey/nodular cast iron (GG/GJL, GGG/GJS)
• Hard aluminium alloys
• Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
• Hard non-ferrous metal
• Stainless steel (INOX)Steel
• Steel, cast steel
• Steels over 700 N/mm² (> 220 HB)
• Steels up to 1,200 N/mm² (< 38 HRC)
• Steels up to 700 N/mm² (< 220 HB)
• Titanium
• Titanium alloys
• Tool steels
• White annealed cast iron (GTW, GJMW)
• Zinc

Drive Types

• Flexible shaft drive
• Robot
• Stationary machines
• Straight grinder
• Tool machine

Recommendations for use

• To prevent vibrations, place the tools on powerful drives with an elastically supported spindle wherever possible.
• Observe the recommended rotational speeds.

Applications

• Cutting out holes
• Deburring
• Leveling
• Milling
• Milling out
• Surface work
• Work on weld seams
