INOX 304 Phillips pan head self-tapping screws, 2G / 1/4"
The price shown is for the box.
Available

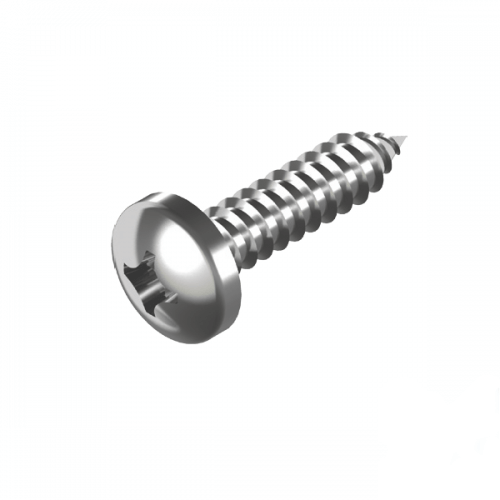

INOX Phillips Pan Head Self Tapping Screw - 304 Stainless Steel is a self-tapping screw. Made in 304 (A2) stainless steel, the Phillips Pan Head Self Tapping Screw is a pan head screw with a Phillips recess and a sharp, coarse thread that cuts its own thread in thin sheet metal, plastics and timber.
A2 stainless (grade 304) gives sound general corrosion resistance for inside work, fresh water and ordinary outdoor exposure. It is not the grade normally chosen for coastal, pool or marine work, where A4 (316) is recommended. Gauge sizes are shown as a number followed by G. You can choose from 66 variants, covering sizes 2G to 14G and lengths 1/4" to 4". Variants are supplied in packs of 100 to 200, depending on size.
Where this product is used
- Signs, furniture and fittings
- Indoor architectural and joinery work
- Kitchen, bathroom and laundry fixtures
- Bulk jobs and trade or maintenance stores buying in larger packs
- Securing panels and fittings to plastics and timber
Features
- Range covers 2G to 14G in 66 variants
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
- Supplied in packs of 100 to 200
- Cuts its own thread, so no tapping is needed in thin material
- Lengths from 1/4" to 4"
- Pan head with Phillips recess

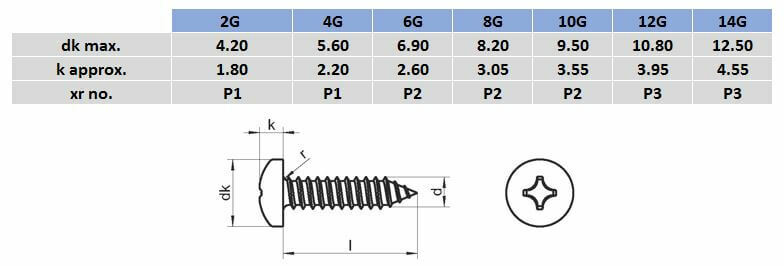

Key specifications
| Specification | Detail |
|---|---|
| Brand | INOX |
| Product | Phillips Pan Head Self Tapping Screw |
| Type | Pan head screw with a Phillips recess and a sharp, coarse thread that cuts its own thread in thin sheet metal, plastics and timber |
| Material | A2 (304) stainless steel |
| Thread system | Imperial gauge sizes |
| Environment | Indoor, fresh water and general outdoor use |
| Lengths | 1/4" to 4" |
| Sizes available | 2G to 14G |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Head type | Pan |
| Pack quantity | 100 to 200, by size |
| Magnetic response | Generally non-magnetic (austenitic), cold-worked parts can show weak magnetism |
| Variants | 66 |
| Key features | Cuts its own thread, so no tapping is needed in thin material, Pan head with Phillips recess |
| Drive | Phillips |
Choosing the right option
Drill a pilot hole sized to the screw core, and keep the speed low to avoid heat build-up, which can seize stainless steel. Gauge sizes are shown as a number followed by G. Near the coast, around pools or in marine settings, use the A4 (316) version instead: 10G x 100 (4") 316 Stainless Steel Phillips Pan Head Self Tapping Screw - Box of 100.
Other versions in this range: Phillips Pan Head Self Tapping Screw - 316 Stainless Steel.
| Option | Part number | SKU |
|---|---|---|
| 2G / 1/4" | A0073589 | |
| 2G / 3/8" | A0073590 | |
| 4G / 1 1/4" | A0073597 | |
| 4G / 1" | A0073596 | |
| 4G / 1/2" | A0073593 | |
| 4G / 1/4" | A0073591 | |
| 4G / 3/4" | A0073595 | |
| 4G / 3/8" | A0073592 | |
| 4G / 5/8" | A0073594 | |
| 6G / 1 1/2" | A0073605 | |
| 6G / 1 1/4" | A0073604 | |
| 6G / 1 3/4" | A0073606 | |
| 6G / 1" | A0073603 | |
| 6G / 1/2" | A0073600 | |
| 6G / 1/4" | A0073598 | |
| 6G / 2" | A0073607 | |
| 6G / 3/4" | A0073602 | |
| 6G / 3/8" | A0073599 | |
| 6G / 5/8" | A0073601 | |
| 8G / 1 1/2" | A0073615 | |
| 8G / 1 1/4" | A0073614 | |
| 8G / 1 3/4" | A0073616 | |
| 8G / 1" | A0073613 | |
| 8G / 1/2" | A0073610 | |
| 8G / 1/4" | A0073608 | |
| 8G / 2 1/2" | A0073618 | |
| 8G / 2" | A0073617 | |
| 8G / 3" | A0073619 | |
| 8G / 3/4" | A0073612 | |
| 8G / 3/8" | A0073609 | |
| 8G / 4" | A0073620 | |
| 8G / 5/8" | A0073611 | |
| 10G / 1 1/2" | A0073627 | |
| 10G / 1 1/4" | A0073626 | |
| 10G / 1 3/4" | A0073628 | |
| 10G / 1" | A0073625 | |
| 10G / 1/2" | A0073622 | |
| 10G / 2 1/2" | A0073630 | |
| 10G / 2" | A0073629 | |
| 10G / 3" | A0073631 | |
| 10G / 3/4" | A0073624 | |
| 10G / 3/8" | A0073621 | |
| 10G / 4" | A0073632 | |
| 10G / 5/8" | A0073623 | |
| 12G / 1 1/2" | A0073638 | |
| 12G / 1 1/4" | A0073637 | |
| 12G / 1 3/4" | A0073639 | |
| 12G / 1" | A0073636 | |
| 12G / 1/2" | A0073633 | |
| 12G / 2 1/2" | A0073641 | |
| 12G / 2" | A0073640 | |
| 12G / 3" | A0073642 | |
| 12G / 3/4" | A0073635 | |
| 12G / 4" | A0073643 | |
| 12G / 5/8" | A0073634 | |
| 14G / 1 1/2" | A0073649 | |
| 14G / 1 1/4" | A0073648 | |
| 14G / 1 3/4" | A0073650 | |
| 14G / 1" | A0073647 | |
| 14G / 1/2" | A0073644 | |
| 14G / 2 1/2" | A0073652 | |
| 14G / 2" | A0073651 | |
| 14G / 3" | A0073653 | |
| 14G / 3/4" | A0073646 | |
| 14G / 4" | A0073654 | |
| 14G / 5/8" | A0073645 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Phillips Pan Head Self Tapping Screw - 304 Stainless Steel: 2G / 1/4"
SKU: A0073589 | Model: PSTA22GX6
PSTA22GX6: 2G x 1/4" Phillips pan head self-tapping screw, 304 Stainless Steel. Sold in a box of 200. Suits fixing sheet metal, trim and brackets.
