EasyRoll pneumatic wheel, 1" / 4.00 x 8
Available

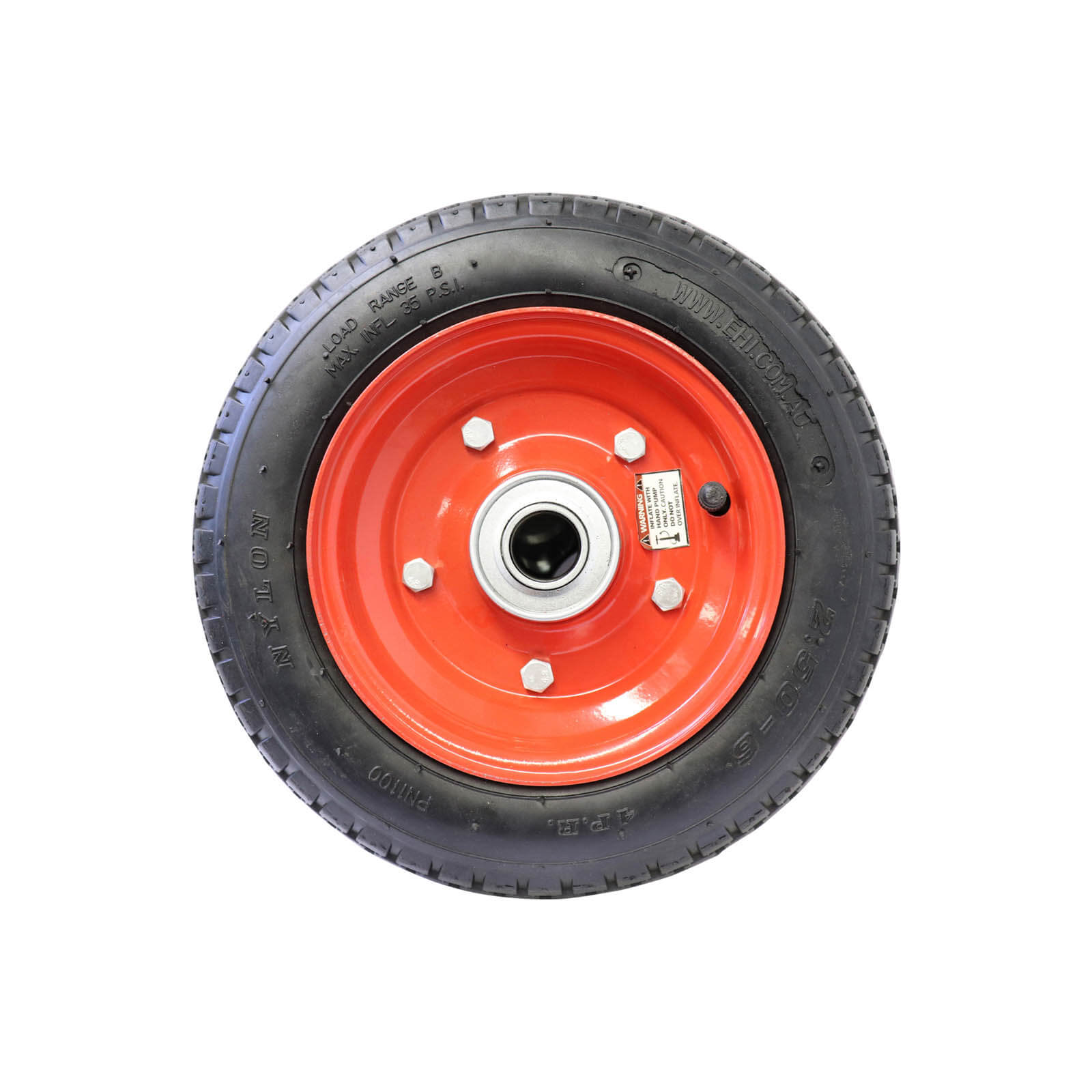

The EasyRoll pneumatic wheel is an air-filled wheel with a red steel centre and ball bearings, in 2.50 x 4 to 5.00 x 6" tyre sizes. The tread is 54 to 108mm wide and the load capacity is 140 to 220kg per wheel, depending on the size.
The pneumatic wheels are perfect for use on uneven or unsealed ground, with a thick and chunky tread for extra grip that cushions impact on rough terrain. The red steel rim has a powder coated finish and the wheel is fitted with a 4 ply tyre and a butyl inner tube.
Where this product is used
- Hand trucks
- Trolleys and nursery trolleys
- Wheelbarrows
- Hand carts
- Mobile generators
- Delicate or sensitive equipment taken over rough terrain
Features
- 2.50 x 4 to 5.00 x 6" tyre sizes, 220 to 400mm overall diameter
- 54 to 108mm tread width
- Load capacity 140 to 220kg per wheel
- Ball bearings
- Red steel centre
- Thick and chunky tread for extra grip
- Cushions impact on rough terrain
- 4 ply tyre, butyl inner tube and powder coated steel rim
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Wheel type | Pneumatic (air-filled) |
| Centre | Red Steel |
| Tyre size | 2.50 x 4 to 5.00 x 6" |
| Wheel diameter | 220 to 400mm |
| Hub | 60 to 80mm |
| Tread width | 54 to 108mm |
| Bore ID | 3/4", 20mm and 1" |
| Load capacity per wheel | 140 to 220kg |
| Bearing | Ball bearing (some sizes with a reducing bush) |
Choosing the right option
Choose the tyre size for the load and the ground you travel over, then match the bore ID to your axle. Pneumatic wheels: excellent shock absorbency and floor protection, fair load capacity, poor push effort and good durability. It suits outdoor, irregular or unsealed surfaces and gives the highest resilience. Load capacity is shown per wheel. For castors on a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
See also: EasyRoll Pneumatic Wheel - Ball Bearing, Red Steel Centre, 2.50 x 6, 3.50 x 6 and 5.00 x 6, EasyRoll Pneumatic Wheel - Ball Bearing, Red Steel Centre, 2.50 x 6 to 6.50 x 8, EasyRoll Pneumatic Wheel - Plain Bearing, Nylon Centre.
| Option | Part number | Tyre size (in) | Wheel diameter (mm) | Hub (mm) | Tread (mm) | Bore ID | Load capacity (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|

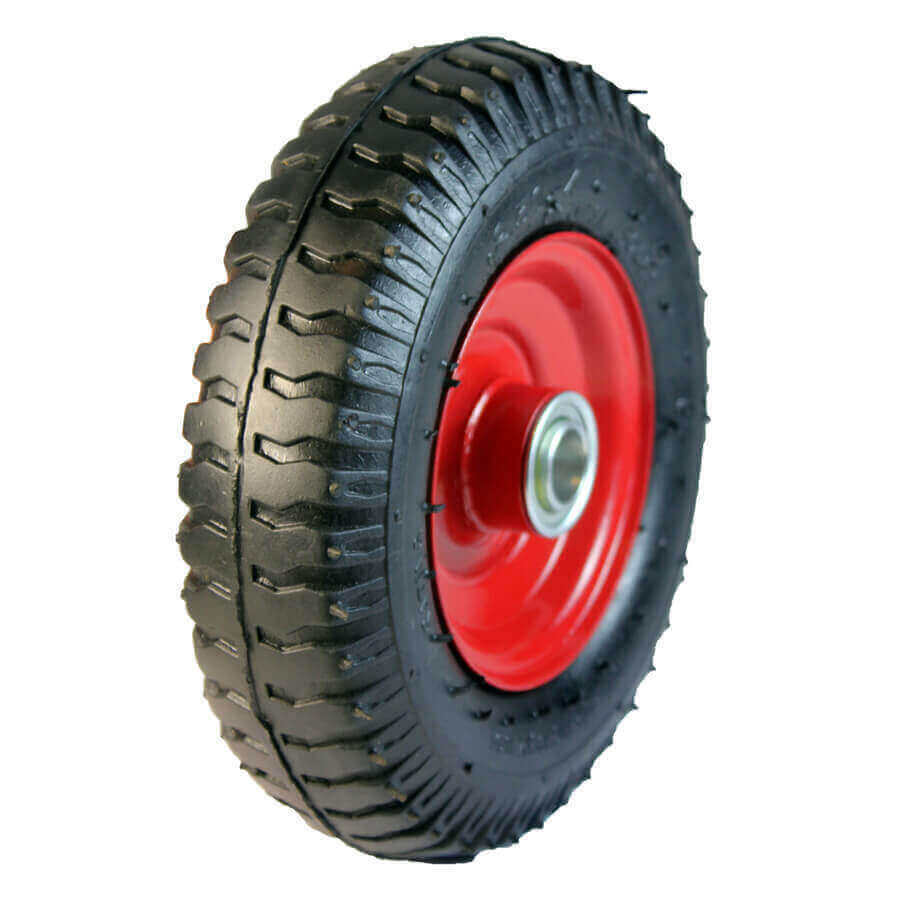

| 2.50 x 4", 3/4" bore | CPW2.50-4PS3/4C | 2.50 x 4 | 220 | 60 | 54 | 3/4" | 140 | Ball bearing |

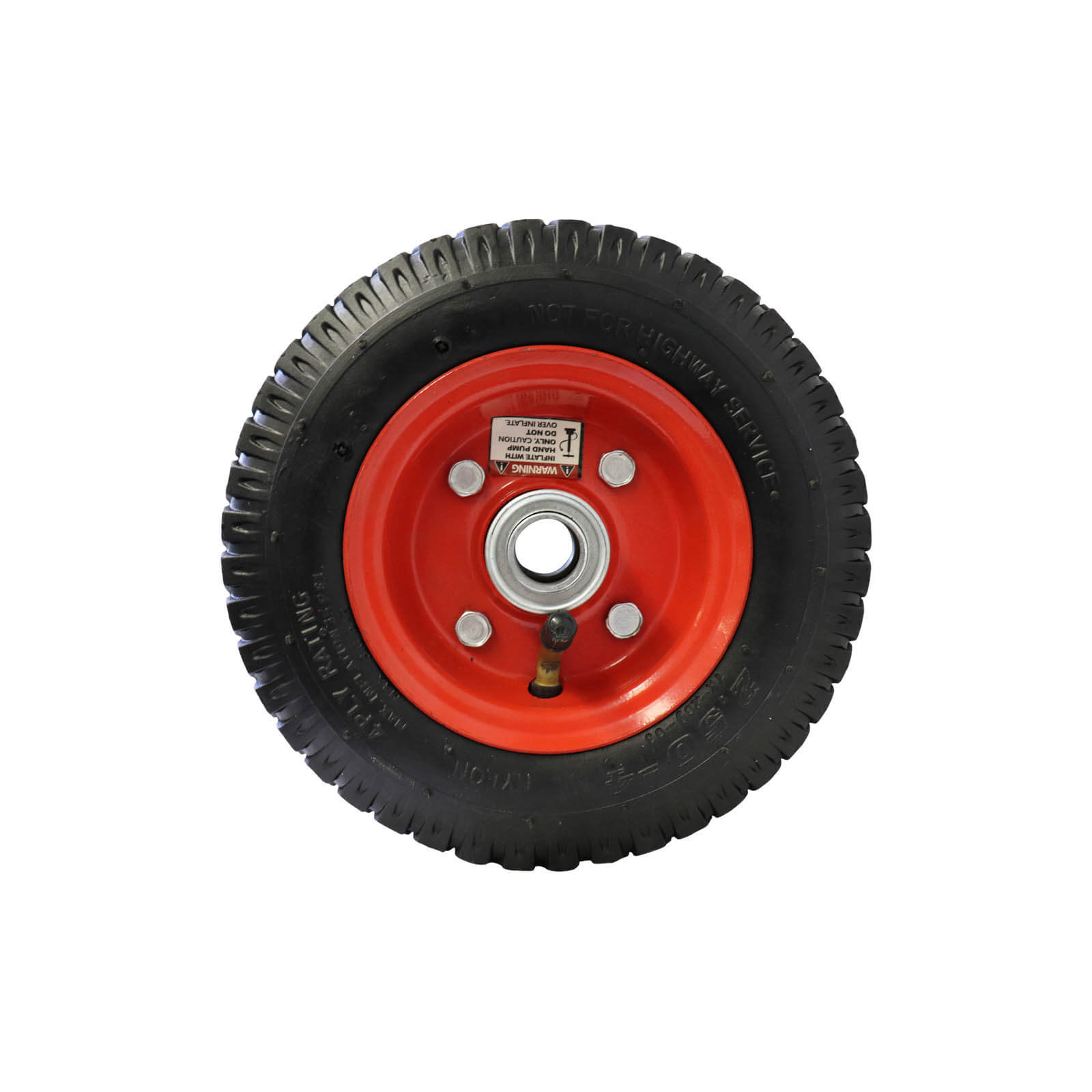

| 2.50 x 4", 20mm bore | CPW2.50-4PS20C | 2.50 x 4 | 220 | 60 | 54 | 20mm | 140 | Ball bearing |

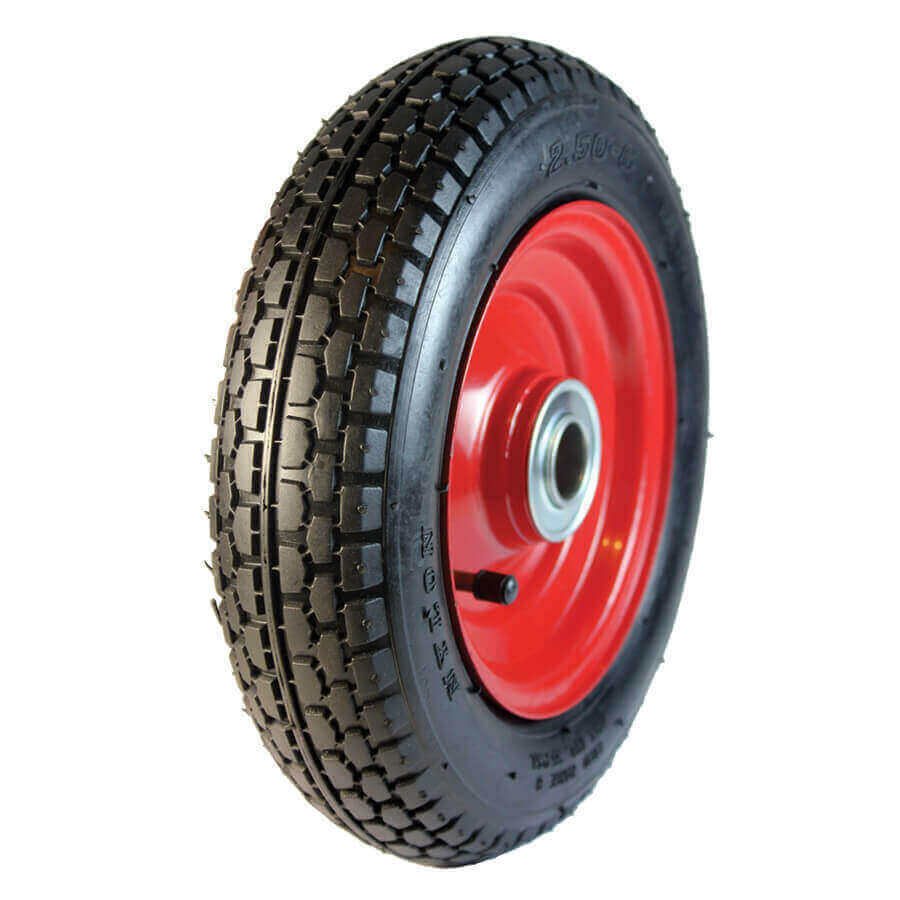

| 2.50 x 6", 3/4" bore | CPW2.50-6PS3/4C | 2.50 x 6 | 275 | 64 | 65 | 3/4" | 140 | Ball bearing (with reducing bush) |

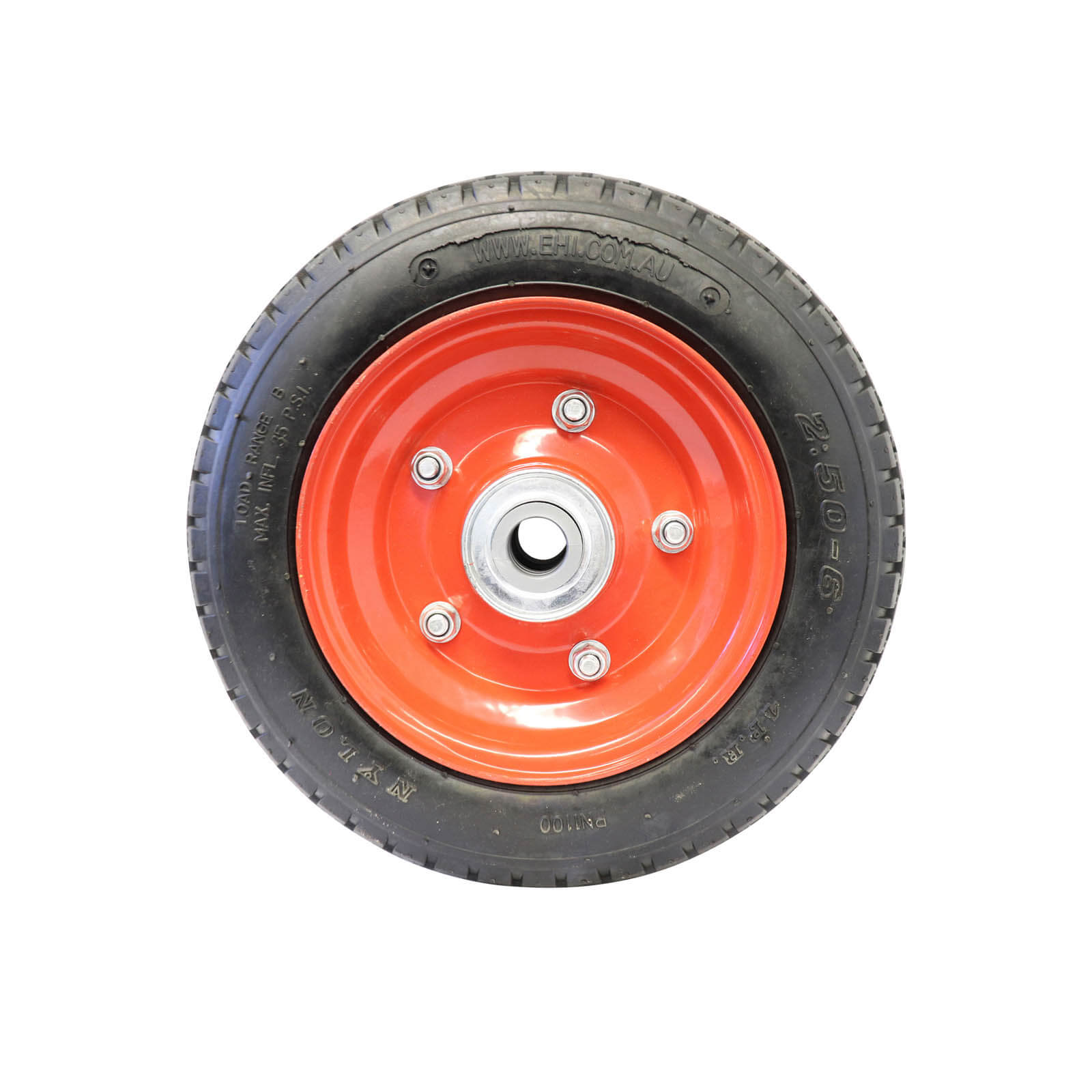

| 2.50 x 6", 20mm bore | CPW2.50-6PS20C | 2.50 x 6 | 275 | 64 | 65 | 20mm | 140 | Ball bearing (with reducing bush) |

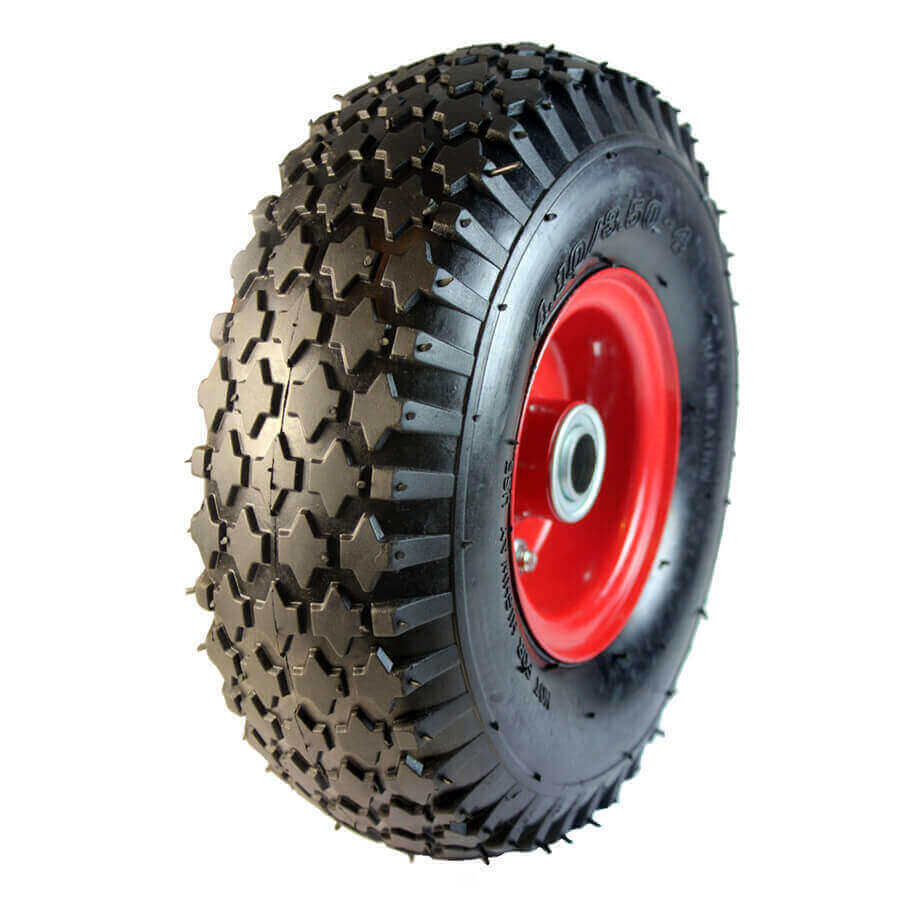

| 3.50 x 4", 3/4" bore | CPW3.50-4PS3/4C | 3.50 x 4 | 265 | 60 | 70 | 3/4" | 160 | Ball bearing |

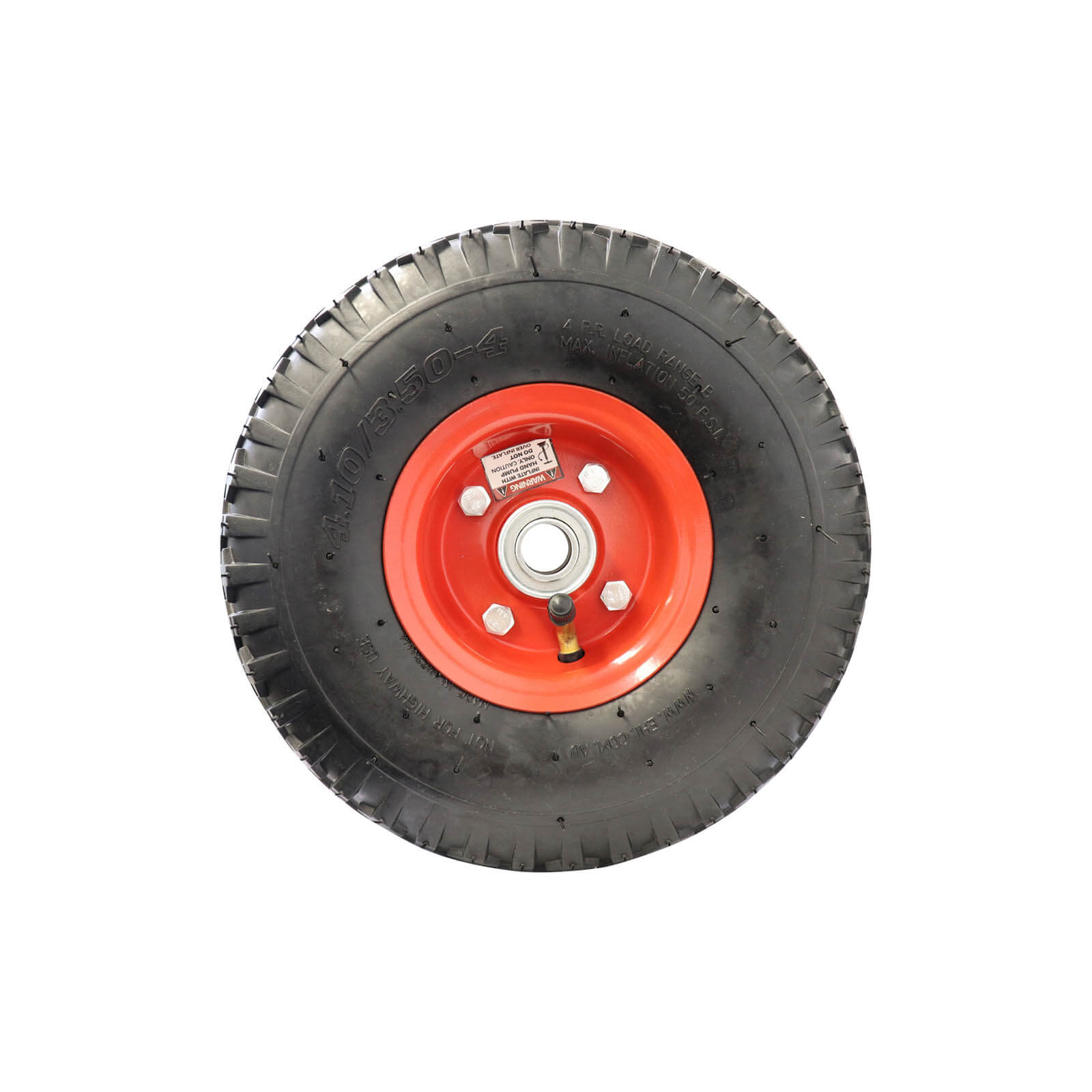

| 3.50 x 4", 20mm bore | CPW3.50-4PS20C | 3.50 x 4 | 265 | 60 | 70 | 20mm | 160 | Ball bearing |

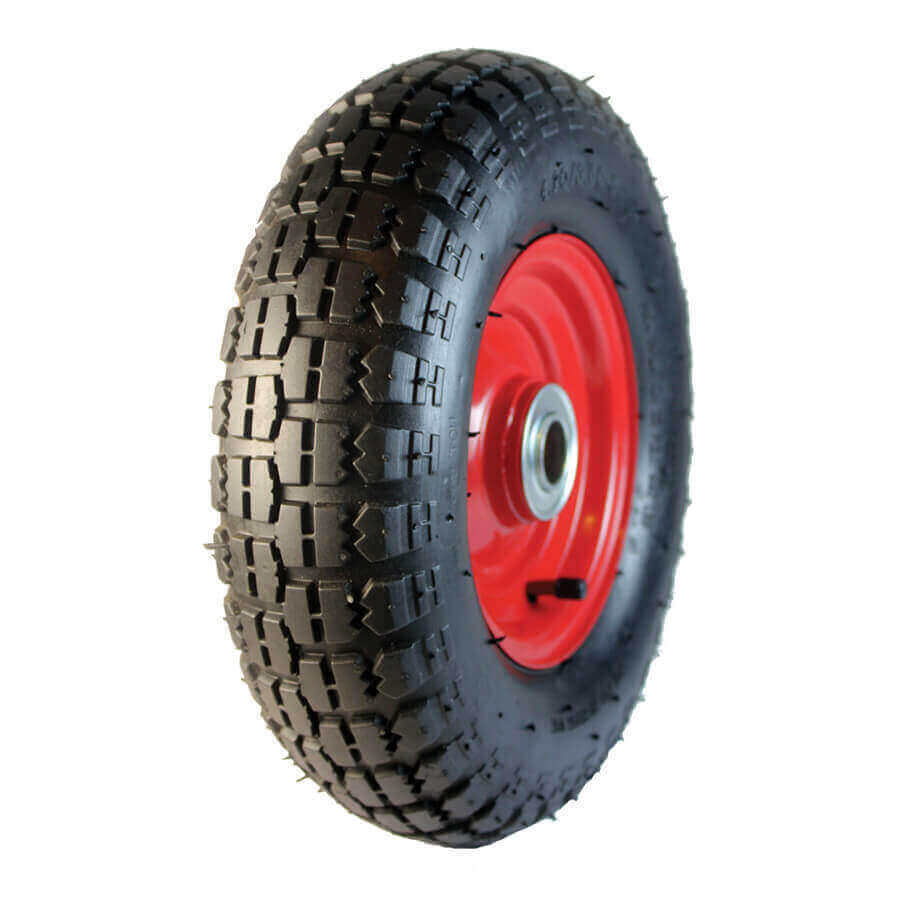

| 3.50 x 6", 3/4" bore | CPW3.50-6PS3/4C | 3.50 x 6 | 320 | 64 | 80 | 3/4" | 180 | Ball bearing (with reducing bush) |

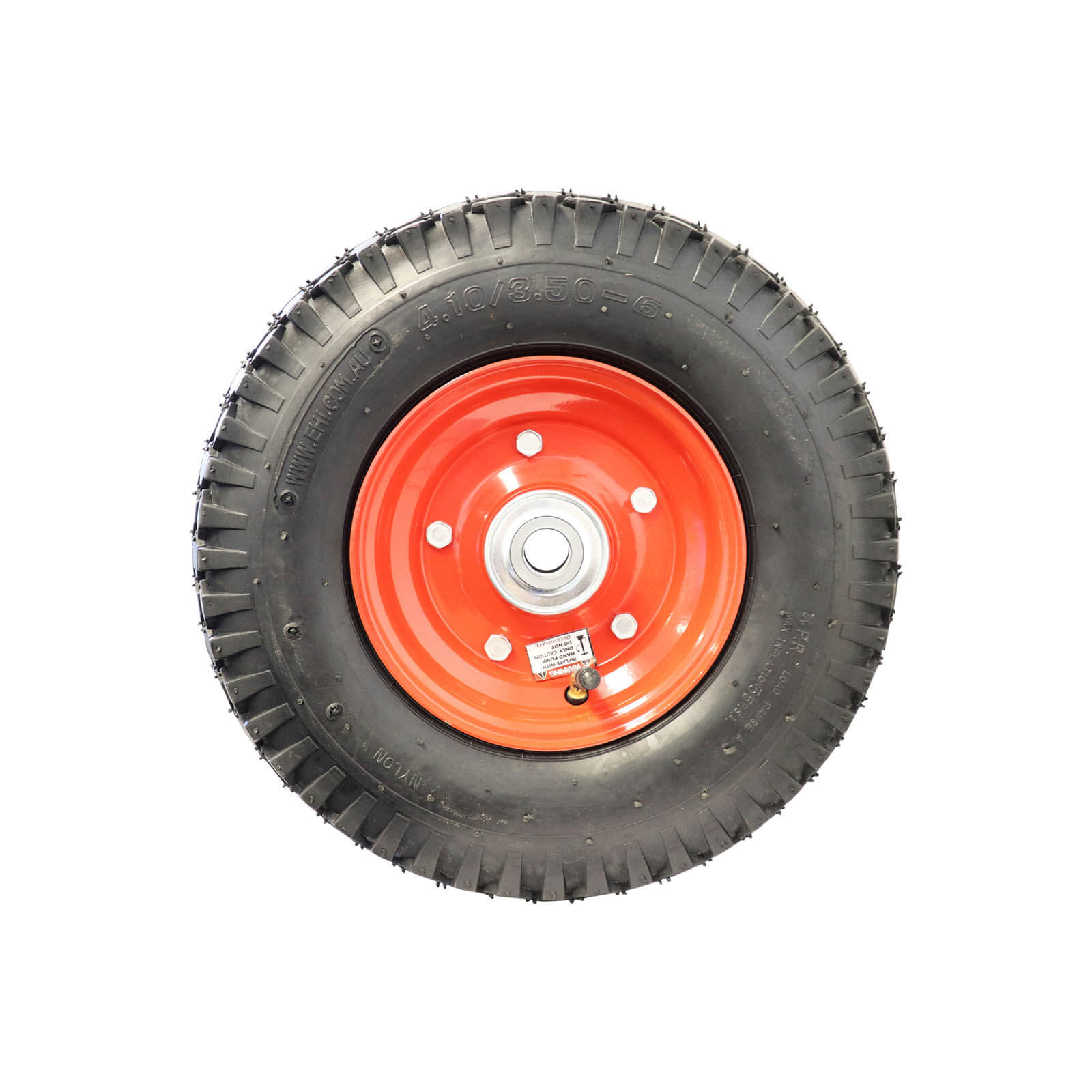

| 3.50 x 6", 20mm bore | CPW3.50-6PS20C | 3.50 x 6 | 320 | 64 | 80 | 20mm | 180 | Ball bearing (with reducing bush) |

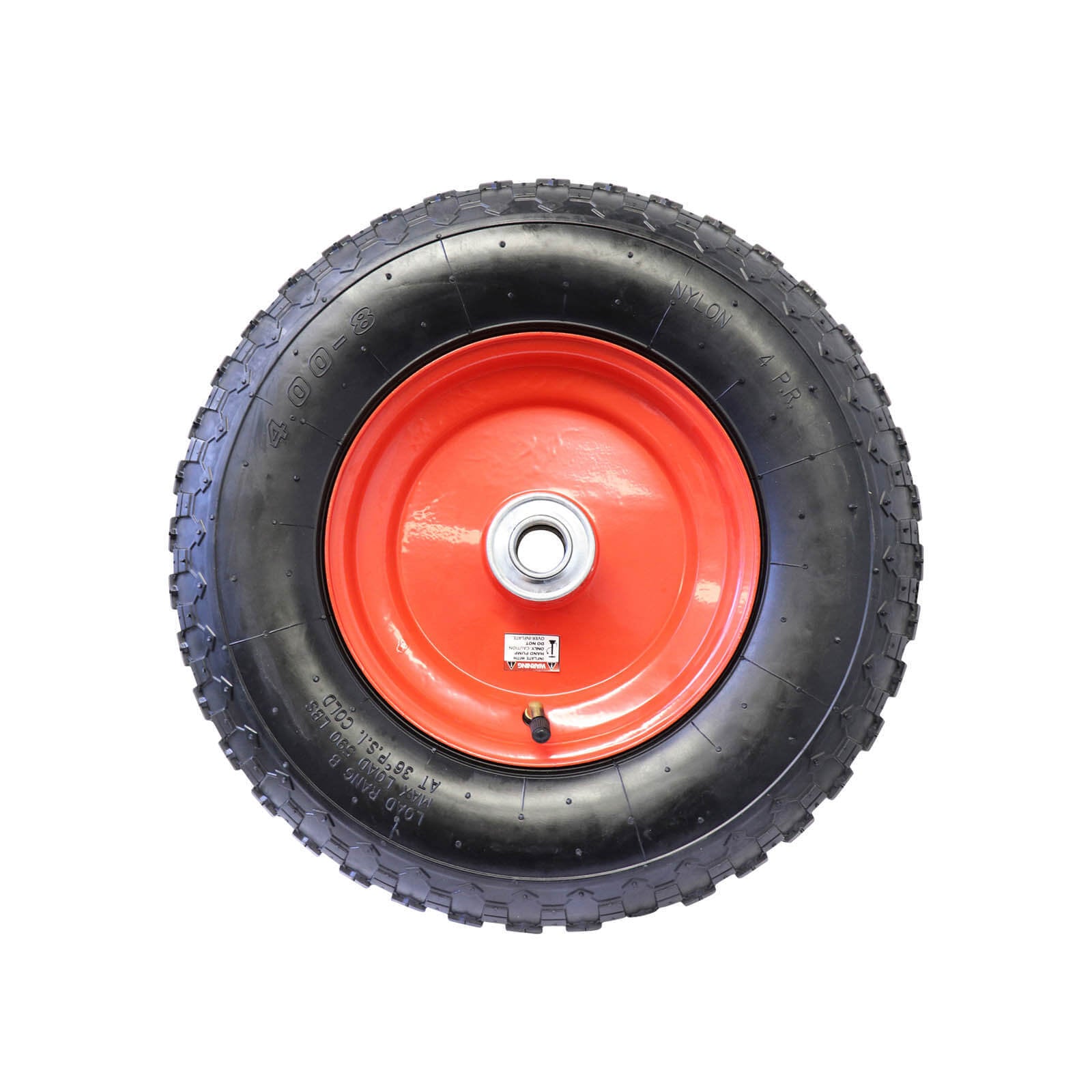

| 4.00 x 8", 1" bore | CPW4.00-8PS1C | 4.00 x 8 | 400 | 80 | 100 | 1" | 220 | Ball bearing |

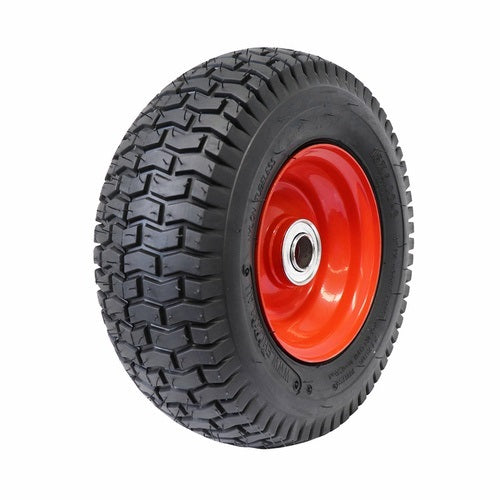

| 5.00 x 6", 1" bore | CPW5.00-6PS1C | 5.00 x 6 | 330 | 60 | 108 | 1" | 200 | Ball bearing |
