Precision Brand imperial stainless slotted shims SHIM42605
Available

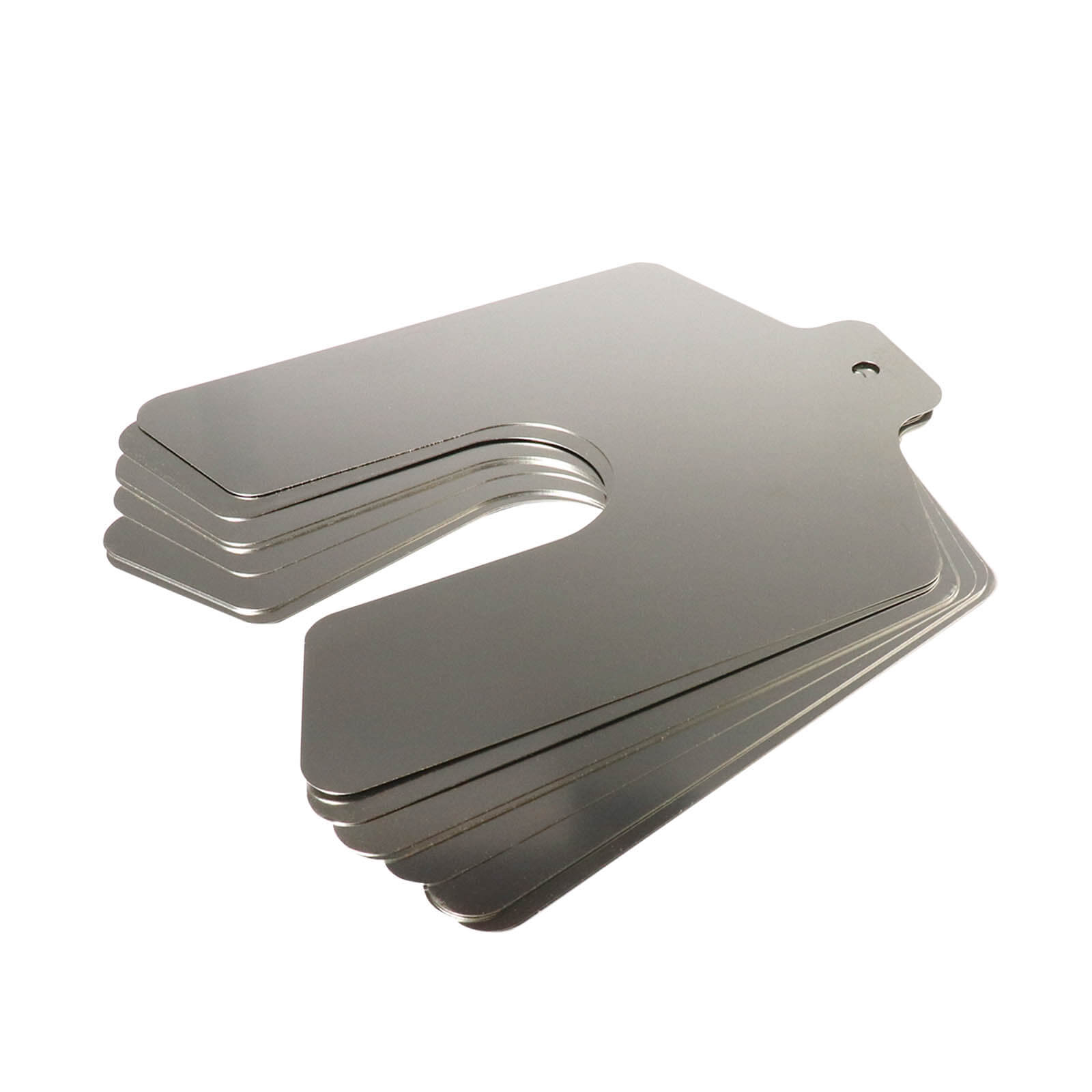

Precision Brand imperial slotted shims are pre-cut stainless steel shims with a slot, used to align and level machinery. They come in 2, 3, 4, 6 and 8 in squares and thicknesses from 0.001 in to 0.125", and each option is a pack of shims in one thickness.
The shims are made from 300 series stainless steel, which resists rust and corrosion, and each shim is permanently marked with its thickness. The tab design makes shim placement easier and safer, because there is no need to put hands under machinery during installation or removal. Made in USA.
Where this product is used
- Aligning and levelling motors, pumps, gearboxes and other machinery
- Machinery installation and maintenance
- Precision alignment where shims are fitted around bolts
Features
- Pre-cut, so there is no hand cutting, deburring or material waste
- Made from 300 series stainless steel that resists rust and corrosion
- Tab design makes placement easier and safer, with no need to put hands under machinery during installation or removal
- Thickness is permanently marked on each shim
- Five sizes (2, 3, 4, 6 and 8 in squares) and thicknesses from 0.001 to 0.125"
- Each option is a pack of shims in one thickness
Key specifications
| Specification | Detail |
|---|---|
| Brand | Precision Brand |
| Material | 300 series stainless steel |
| Shim sizes | 2 x 2" (5/8 in slot), 3 x 3" (7/8 in slot), 4 x 4" (1/4 in slot), 6 x 6" (2 in slot), 8 x 8" (2 3/8 in slot) |
| Thicknesses | 0.001 to 0.125" (0.025 to 3.175mm) |
| Marking | Thickness marked on each shim |
| Origin | Made in USA |
Choosing the right option
Choose the shim size so that the slot clears the bolt and the shim supports the mounting foot, then choose the thickness you have measured. Several shims can be combined to make up a required thickness.
See also: Precision Brand Stainless Steel Slotted Shim - Metric, Precision Brand Stainless Steel Slotted Shim Set - Assorted Thickness, Precision Brand Stainless Shim Stock Roll - Imperial.
| Option | Part number | SKU |
|---|---|---|
| 2 x 2 (5/8 Slot Size) / 0.001 / 0.025 | SHIM42205 | A0049586 |
| 3 x 3 (7/8 Slot Size) / 0.001 / 0.025 | SHIM42305 | A0049592 |
| 6 x 6 (2 Slot Size) / 0.001 / 0.025 | SHIM42605 | A0049602 |
| 2 x 2 (5/8 Slot Size) / 0.002 / 0.051 | SHIM42210 | A0049587 |
| 6 x 6 (2 Slot Size) / 0.002 / 0.051 | SHIM42610 | A0049603 |
| 8 x 8 (2 3/8 Slot Size) / 0.002 / 0.051 | SHIM42810 | A0049609 |
| 2 x 2 (5/8 Slot Size) / 0.004 / 0.102 | SHIM42220 | A0049588 |
| 4 x 4 (1 1/4 Slot Size) / 0.004 / 0.102 | SHIM42420 | A0049599 |
| 6 x 6 (2 Slot Size) / 0.004 / 0.102 | SHIM42620 | A0049604 |
| 8 x 8 (2 3/8 Slot Size) / 0.004 / 0.102 | SHIM42820 | A0049610 |
| 2 x 2 (5/8 Slot Size) / 0.01 / 0.254 | SHIM42230 | A0049589 |
| 3 x 3 (7/8 Slot Size) / 0.01 / 0.254 | SHIM42330 | A0049593 |
| 3 x 3 (7/8 Slot Size) / 0.015 / 0.381 | SHIM42335 | A0049594 |
| 6 x 6 (2 Slot Size) / 0.015 / 0.381 | SHIM42635 | A0049605 |
| 8 x 8 (2 3/8 Slot Size) / 0.015 / 0.381 | SHIM42835 | A0049611 |
| 2 x 2 (5/8 Slot Size) / 0.02 / 0.508 | SHIM42240 | A0049590 |
| 4 x 4 (1 1/4 Slot Size) / 0.02 / 0.508 | SHIM42440 | A0049600 |
| 6 x 6 (2 Slot Size) / 0.02 / 0.508 | SHIM42640 | A0049606 |
| 3 x 3 (7/8 Slot Size) / 0.025 / 0.635 | SHIM42345 | A0049595 |
| 2 x 2 (5/8 Slot Size) / 0.05 / 1.27 | SHIM42250 | A0049591 |
| 3 x 3 (7/8 Slot Size) / 0.05 / 1.27 | SHIM42350 | A0049596 |
| 4 x 4 (1 1/4 Slot Size) / 0.05 / 1.27 | SHIM42450 | A0049601 |
| 6 x 6 (2 Slot Size) / 0.075 / 1.905 | SHIM42655 | A0049607 |
| 8 x 8 (2 3/8 Slot Size) / 0.075 / 1.905 | SHIM42855 | A0049612 |
| 3 x 3 (7/8 Slot Size) / 0.125 / 3.175 | SHIM42365 | A0049597 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Precision Brand Stainless Steel Slotted Shim - Imperial: 6 x 6 (2 Slot Size) / 0.001 / 0.025
SKU: A0049602 | Model: SHIM42605
Thickness: 0.001". Thickness Tolerance: +/- 0.00005". Slot Size: 2". Width: 6". Length: 6". Material: 300 Series Stainless Steel.
