Precision Brand Stainless Slotted Shim 100 x 100 x 0.025 mm (Pack of 10) | SHIM81405
Available

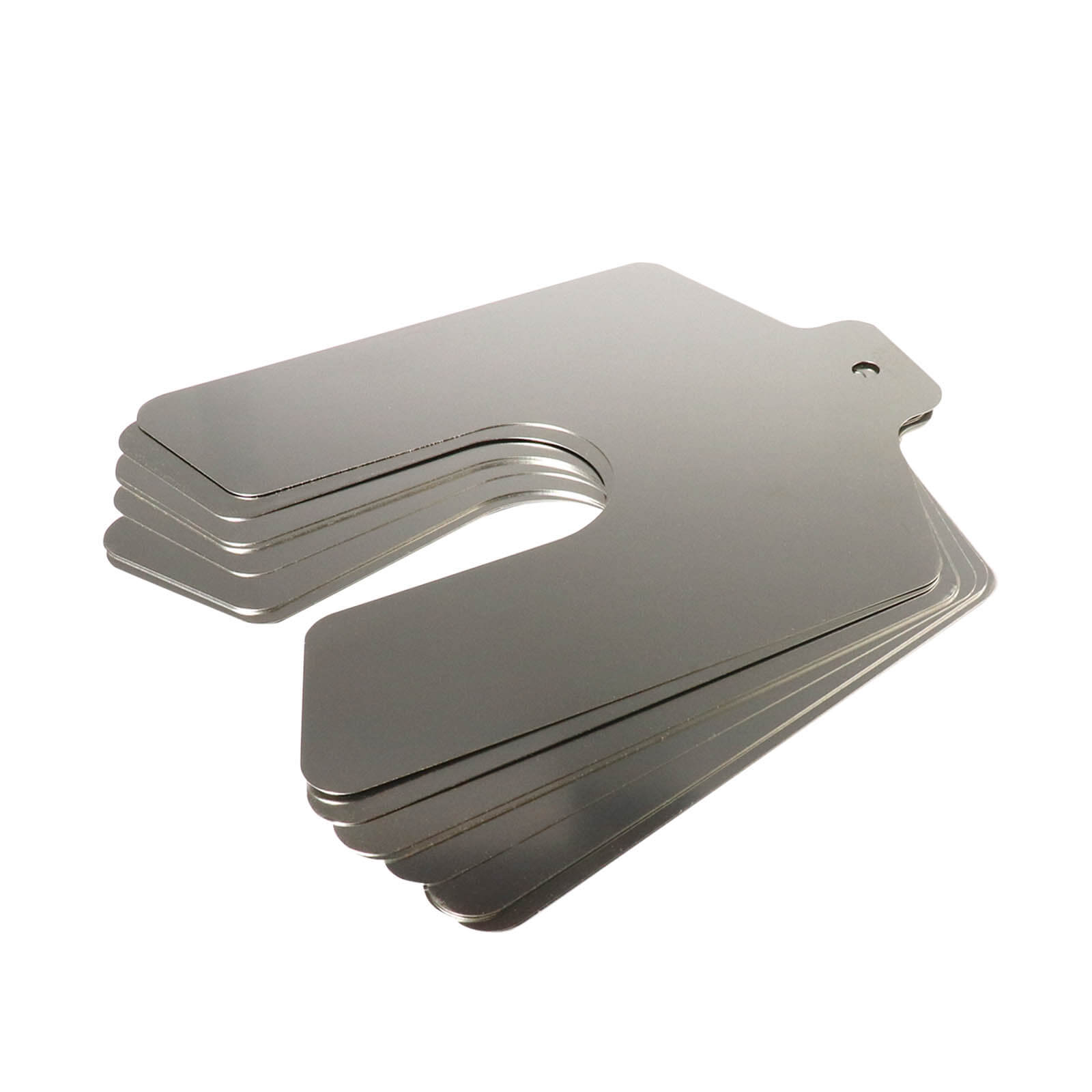

Precision Brand metric slotted shims are pre-cut stainless steel shims with a slot, used to align and level machinery. They come in four sizes (50 x 50, 75 x 75, 100 x 100 and 125 x 125 mm) and ten thicknesses from 0.025 mm to 2.000 mm, and each option is a pack of 10 shims in one thickness.
The shims are made from 300 series stainless steel, which resists rust and corrosion, and each shim is permanently marked with its thickness. The tab design makes shim placement easier and safer, because there is no need to put hands under machinery during installation or removal. Made in USA (manufacturer-stated).
Where this product is used
- Aligning and levelling motors, pumps, gearboxes and other machinery
- Machinery installation and maintenance
- Precision alignment where shims are fitted around bolts
Features
- Pre-cut, so there is no hand cutting, deburring or material waste
- Made from 300 series stainless steel that resists rust and corrosion
- Tab design makes placement easier and safer, with no need to put hands under machinery during installation or removal
- Thickness is permanently marked on each shim
- Pack of 10 shims in a single thickness
- Four sizes and ten thicknesses, from 0.025 to 2.000 mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Precision Brand |
| Material | 300 series stainless steel |
| Shim sizes | 50 x 50 mm (16 mm slot), 75 x 75 mm (22 mm slot), 100 x 100 mm (32 mm slot), 125 x 125 mm (41 mm slot) |
| Thicknesses | 0.025, 0.050, 0.100, 0.200, 0.250, 0.400, 0.500, 0.700, 1.000 and 2.000 mm |
| Pieces per pack | 10 (one thickness per pack) |
| Marking | Thickness marked on each shim |
| Origin | Made in USA (manufacturer-stated) |
Options and part numbers
| Option | Part number | Slot size | Pieces per pack |
|---|---|---|---|
| 50 x 50 mm, 0.025 mm | SHIM81205 | 16 mm | 10 |
| 50 x 50 mm, 0.050 mm | SHIM81210 | 16 mm | 10 |
| 50 x 50 mm, 0.100 mm | SHIM81215 | 16 mm | 10 |
| 50 x 50 mm, 0.200 mm | SHIM81220 | 16 mm | 10 |
| 50 x 50 mm, 0.250 mm | SHIM81225 | 16 mm | 10 |
| 50 x 50 mm, 0.400 mm | SHIM81230 | 16 mm | 10 |
| 50 x 50 mm, 0.500 mm | SHIM81235 | 16 mm | 10 |
| 50 x 50 mm, 0.700 mm | SHIM81240 | 16 mm | 10 |
| 50 x 50 mm, 1.000 mm | SHIM81245 | 16 mm | 10 |
| 50 x 50 mm, 2.000 mm | SHIM81250 | 16 mm | 10 |
| 75 x 75 mm, 0.025 mm | SHIM81305 | 22 mm | 10 |
| 75 x 75 mm, 0.050 mm | SHIM81310 | 22 mm | 10 |
| 75 x 75 mm, 0.100 mm | SHIM81315 | 22 mm | 10 |
| 75 x 75 mm, 0.200 mm | SHIM81320 | 22 mm | 10 |
| 75 x 75 mm, 0.250 mm | SHIM81325 | 22 mm | 10 |
| 75 x 75 mm, 0.400 mm | SHIM81330 | 22 mm | 10 |
| 75 x 75 mm, 0.500 mm | SHIM81335 | 22 mm | 10 |
| 75 x 75 mm, 0.700 mm | SHIM81340 | 22 mm | 10 |
| 75 x 75 mm, 1.000 mm | SHIM81345 | 22 mm | 10 |
| 75 x 75 mm, 2.000 mm | SHIM81350 | 22 mm | 10 |
| 100 x 100 mm, 0.025 mm | SHIM81405 | 32 mm | 10 |
| 100 x 100 mm, 0.050 mm | SHIM81410 | 32 mm | 10 |
| 100 x 100 mm, 0.100 mm | SHIM81415 | 32 mm | 10 |
| 100 x 100 mm, 0.200 mm | SHIM81420 | 32 mm | 10 |
| 100 x 100 mm, 0.250 mm | SHIM81425 | 32 mm | 10 |
| 100 x 100 mm, 0.400 mm | SHIM81430 | 32 mm | 10 |
| 100 x 100 mm, 0.500 mm | SHIM81435 | 32 mm | 10 |
| 100 x 100 mm, 0.700 mm | SHIM81440 | 32 mm | 10 |
| 100 x 100 mm, 1.000 mm | SHIM81445 | 32 mm | 10 |
| 100 x 100 mm, 2.000 mm | SHIM81450 | 32 mm | 10 |
| 125 x 125 mm, 0.025 mm | SHIM81505 | 41 mm | 10 |
| 125 x 125 mm, 0.100 mm | SHIM81515 | 41 mm | 10 |
| 125 x 125 mm, 0.200 mm | SHIM81520 | 41 mm | 10 |
| 125 x 125 mm, 0.250 mm | SHIM81525 | 41 mm | 10 |
| 125 x 125 mm, 0.400 mm | SHIM81530 | 41 mm | 10 |
| 125 x 125 mm, 0.500 mm | SHIM81535 | 41 mm | 10 |
| 125 x 125 mm, 0.700 mm | SHIM81540 | 41 mm | 10 |
| 125 x 125 mm, 1.000 mm | SHIM81545 | 41 mm | 10 |
| 125 x 125 mm, 2.000 mm | SHIM81550 | 41 mm | 10 |
Selecting the right option
Choose the shim size so that the slot clears the bolt and the shim supports the mounting foot, then choose the thickness you have measured. Several shims can be combined to make up a required thickness. If you are unsure which size suits your machine, contact AIMS with the machine details. The 125 x 125 mm size is not listed in 0.050 mm.
