Renold A&S AR50A1 Simplex Roller Chain, ANSI 50, 15.875 mm Pitch, 10 ft
Available
The Renold A&S AR50A1 is a simplex (single-strand) roller chain to the American (ANSI 50) standard, with a 15.875mm (5/8") pitch. It is supplied in a 10 ft (3.048 m) length.
It has a minimum breaking load of 21.8 kN, the ISO 606 minimum figure. The chain is to the ANSI 50 standard, so it needs ANSI 50 sprockets. It does not run on BS 10B sprockets. This is a clearance sale and there are no returns.
Where this product is used
- Power transmission drives on industrial machinery
- Conveyors and material handling equipment
- Agricultural machinery
- Mining and manufacturing plant
Features
- Simplex (single-strand) roller chain, ANSI 50 series
- 15.875mm (5/8") pitch
- Minimum breaking load 21.8 kN (ISO 606 minimum)
- Solid extruded bushes and rollers
- High-waisted side plates, hardened and shot-peened
- Supplied in a 10 ft (3.048 m) length
- Needs ANSI 50 sprockets
Key specifications
| Specification | Detail |
|---|---|
| Brand | Renold |
| Range | A&S |
| Product | Simplex roller chain |
| Model | AR50A1 (ANSI 50-1) |
| Standard | American (ANSI) |
| Number of strands | 1 (simplex) |
| Pitch | 15.875mm (5/8") |
| Roller diameter (max) | 10.16mm |
| Inside width (min) | 9.40mm |
| Pin diameter (max) | 5.08mm |
| Pin length | 20.4mm |
| Plate height (max) | 14.6mm |
| Plate width | 2.04mm |
| Minimum breaking load | 21.8 kN |
| Weight | 1.00kg per metre |
| Length supplied | 10 ft (3.048 m) |
Choosing the right option

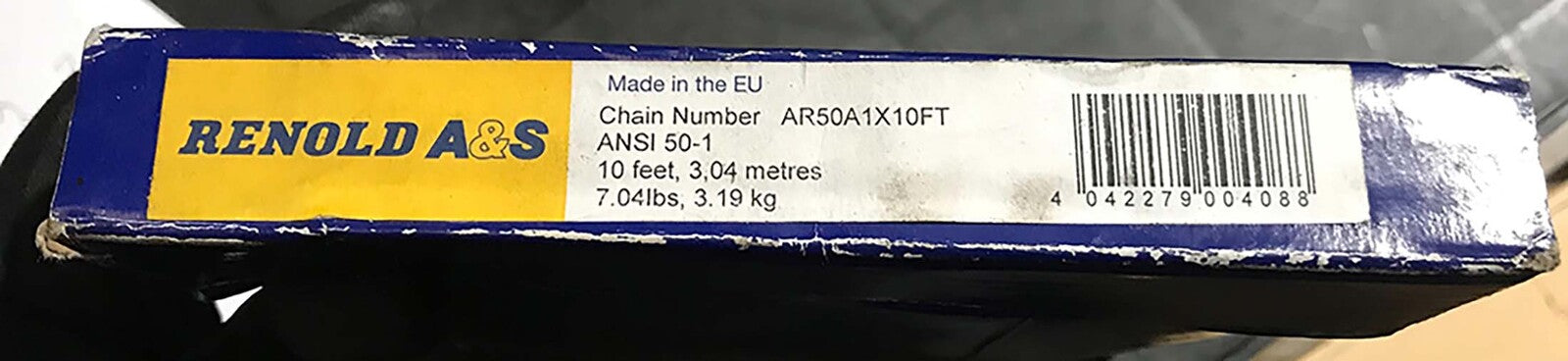

Check the chain size against your sprockets before ordering: an ANSI 50 chain needs ANSI 50 sprockets. The chain number is stamped on the chain plates.
