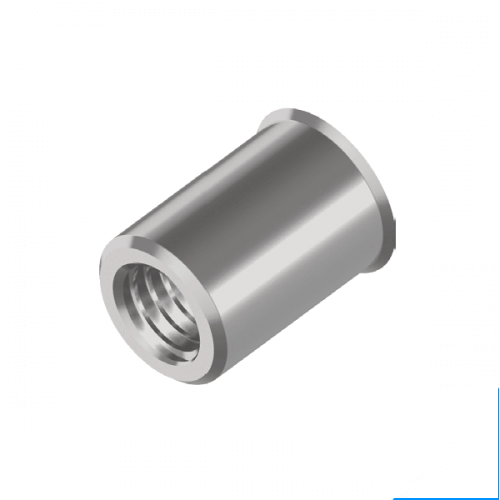

M5 Rivet Nut, 304 Stainless Steel - RNSA2M5
The price shown is for the box.
Available
The Right Hand Thread Rivet Nut, Small Flange, 304 Stainless Steel is available in 4 sizes (M5 to M10) and is a threaded insert that is set into a drilled hole in sheet metal or tube with a rivet nut tool. It leaves an internal thread for a bolt or screw where only one side of the sheet is accessible.
You can choose from 4 variants, covering sizes M5 to M10. Pack quantities depend on size: packs of 100 to 250.
A2 stainless (grade 304) gives sound general corrosion resistance for inside work, fresh water and ordinary outdoor exposure. It is not the grade normally chosen for coastal, pool or marine work, where A4 (316) is recommended. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.
Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. Use stainless washers and nuts with stainless fasteners, so the whole joint is made of the same material.
Where this product is used
- Mounting accessories to thin-wall tube and panels
- Signs, furniture and fittings
- Food-service and light food-handling equipment
- Small sizes for enclosures, instruments and light fittings
- Fixing points in ducting and enclosures
- Adding a threaded fixing point to sheet metal and tube
Features
- Range covers M5 to M10 in 4 variants
- Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
- Supplied in packs of 100 to 250
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
- Provides a strong thread in thin material
- Set from one side

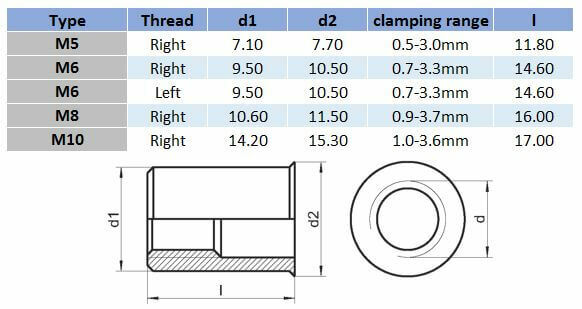

Key specifications
| Specification | Detail |
|---|---|
| Product | Right Hand Thread Rivet Nut Small Flange |
| Type | Threaded insert that is set into a drilled hole in sheet metal or tube with a rivet nut tool |
| Head type | Flanged |
| Key features | Provides a strong thread in thin material; Set from one side |
| Material | A2 (304) stainless steel |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Supplied in packs of | 100 to 250, by size |
| Thread system | Metric |
| Sizes | M5 to M10 |
| Thread hand | Right Hand |
| Variants | 4 |
| Suited to | Indoor, fresh water and general outdoor use |
Selecting the right option
Match the thread size, hand (right or left) and flange style (large or small) to the application. The flange size is part of the product name. A rivet nut tool is needed to set it.
Related products
Other versions in this range: M6 304 Stainless Steel Left Hand Thread Large Flange Rivet Nut Box of 100, M6 304 Stainless Steel Left Hand Thread Small Flange Rivet Nut Box of 100 and Right Hand Thread Rivet Nut - Large Flange - 304 Stainless Steel.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

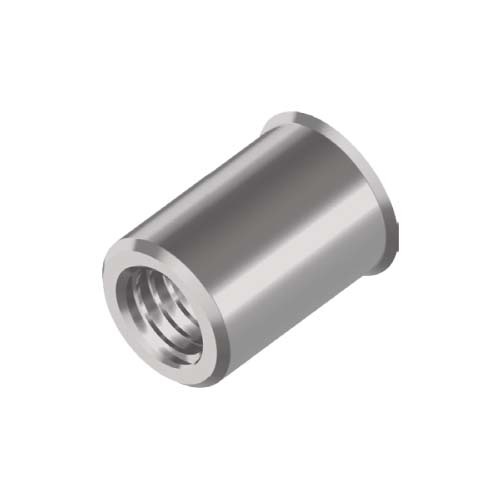

Right Hand Thread Rivet Nut - Small Flange - 304 Stainless Steel: M5
SKU: A0088091 | Model: RNSA2M5
RNSA2M5: M5 rivet nut, 304 Stainless Steel. Sold in a box of 100. Suits adding a threaded fixing point to sheet metal and tube.
