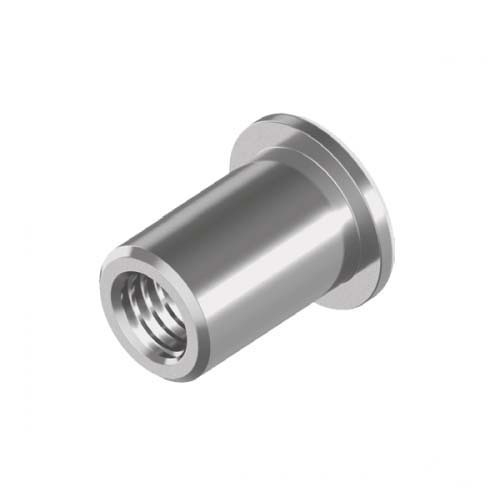

M5 Rivet Nut, 304 Stainless Steel - RNLA2M5
The price shown is for the box.
Available
The Right Hand Thread Rivet Nut, Large Flange, 304 Stainless Steel is a threaded insert that is set into a drilled hole in sheet metal or tube with a rivet nut tool. It leaves an internal thread for a bolt or screw where only one side of the sheet is accessible.
A2 (304) stainless steel is the common general-purpose austenitic grade. It resists corrosion well indoors, in fresh water and in most general outdoor conditions, but it is not recommended where chlorides are present, such as coastal, pool and marine settings. Choose A4 (316) there. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.
You can choose from 3 variants, covering sizes M5 to M8. Each variant is supplied in packs of 100.
Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Adding a threaded fixing point to sheet metal and tube
- Kitchen, bathroom and laundry fixtures
- Indoor architectural and joinery work
- Mounting accessories to thin-wall tube and panels
- Signs, furniture and fittings
Features
- Supplied in packs of 100
- Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
- Set from one side
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
- Provides a strong thread in thin material
- Range covers M5 to M8 in 3 variants

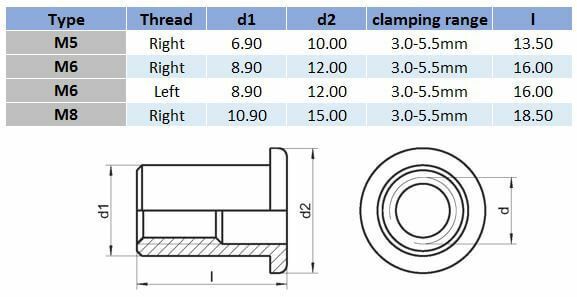

Key specifications
| Specification | Detail |
|---|---|
| Product | Right Hand Thread Rivet Nut Large Flange |
| Type | Threaded insert that is set into a drilled hole in sheet metal or tube with a rivet nut tool |
| Thread system | Metric |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Key features | Provides a strong thread in thin material; Set from one side |
| Supplied in packs of | 100 |
| Typical environment | Indoor, fresh water and general outdoor use |
| Material | A2 (304) stainless steel |
| Variants | 3 |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Sizes | M5 to M8 |
| Thread hand | Right Hand |
| Head type | Flanged |
Selecting the right option
Match the thread size, hand (right or left) and flange style (large or small) to the application. The flange size is part of the product name. A rivet nut tool is needed to set it.
Related products

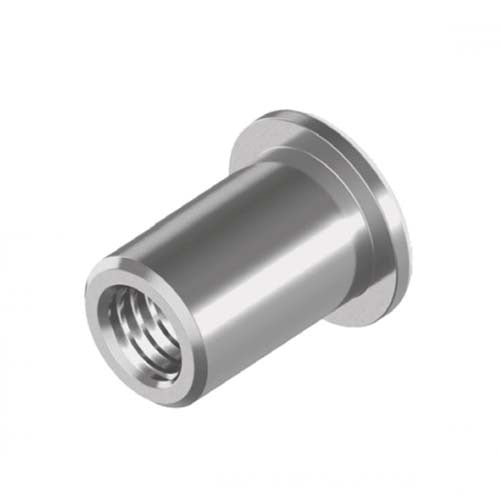

Also available: M6 304 Stainless Steel Left Hand Thread Large Flange Rivet Nut Box of 100, M6 304 Stainless Steel Left Hand Thread Small Flange Rivet Nut Box of 100 and Right Hand Thread Rivet Nut - Small Flange - 304 Stainless Steel.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Right Hand Thread Rivet Nut - Large Flange - 304 Stainless Steel: M5
SKU: A0088086 | Model: RNLA2M5
RNLA2M5: M5 rivet nut, 304 Stainless Steel. Sold in a box of 100. Suits adding a threaded fixing point to sheet metal and tube.
