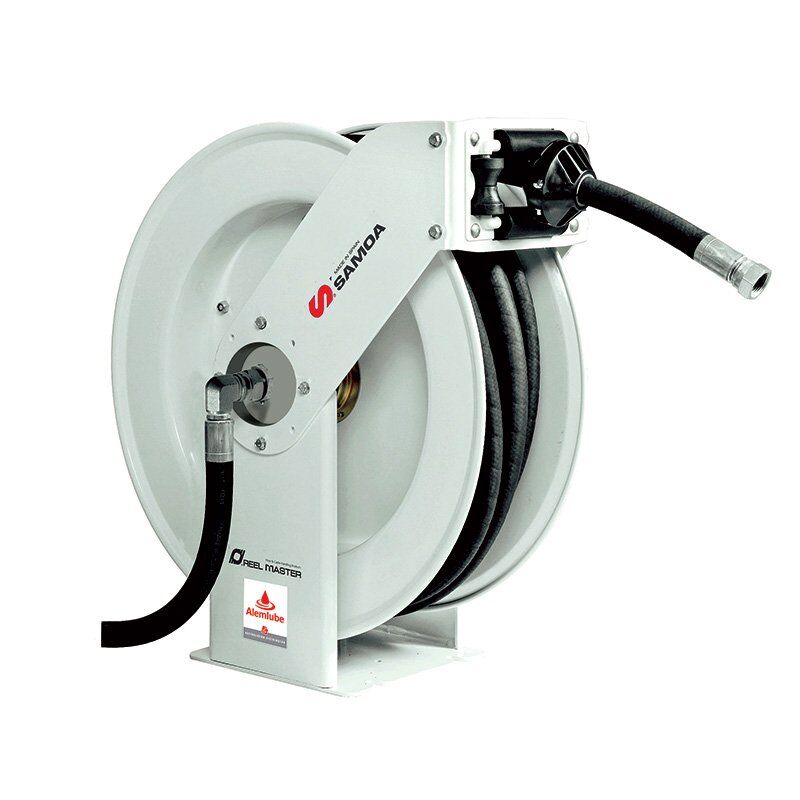

Samoa Standard Duty Oil Hose Reel 20 Mm x 12mm ID Hose - 505232

The Samoa 505232 is a standard-duty oil hose reel built for medium-pressure fluid transfer across mining, construction and workshop environments.

Its spring-rewind, double-pedestal design incorporates the spool on two permanently lubricated sealed ball bearings, reducing torque load on the power spring for smooth, durable operation.

Where this product is used

• Vehicle workshops and field service units
• Lube trucks and construction sites
• General industrial oil, waste oil, diesel, coolant, water and air delivery

Key specifications

• Hose capacity: 20m x 12mm ID, with 0.8m inlet hose
• 2,320psi (160bar) pressure rating
• 1/2" (f) inlet and outlet threads
• Seven-position outlet arm, full-port nickel-protected steel shaft
• Weight: 36kg; 4mm gauge steel construction, epoxy coated
