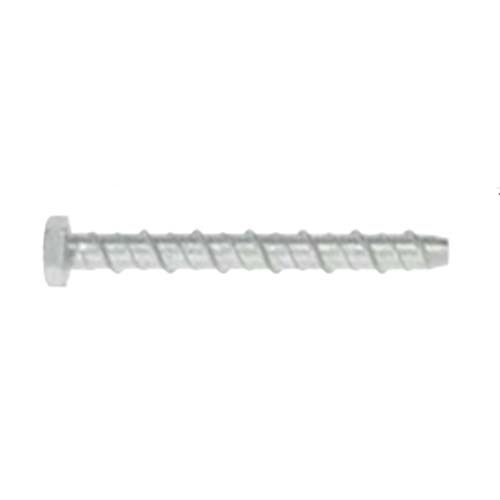

M10 x 60mm Screw Anchor Hexagonal Head Zinc Plated
Available
Bremick is an Australian-owned fastener manufacturer and distributor supplying bolts, nuts, screws, washers, threaded rods, socket screws, and anchoring products to construction, engineering, fabrication, and industrial maintenance operations across Australia. This page covers the Screw Anchor Hexagonal Head Zinc Plated, available in 2 fastener size options: M10, M12.
Where this product is used
- Fixing brackets, rails and fittings to concrete and solid masonry
- Equipment and plant mounting to concrete floors
- Jobs where an anchor is wanted that threads into the drilled hole without an expansion sleeve
- Interior frames and equipment where the part is kept out of the weather
- There are 5 items with diameters from M10 to M12 and lengths from 60mm to 100mm, so work out the size you need first and then read across the table.
Choosing the finish
These masonry screw anchors are zinc plated, which means a thin electroplated layer of zinc over the steel. That is enough for dry, indoor or sheltered use; it is generally not recommended for external applications and is not suitable for treated pine.
Keep zinc plated parts for the dry side of the job, and use hot dip galvanised or 316 stainless where moisture, weather or salt air are involved.
Installation
Drill to the hole depth shown for the size, then thread the anchor in. The table gives the maximum fastening thickness and the hole depth for each item.
Features
- Zinc plated: suited to dry, indoor and sheltered use
- Made from carbon steel
Key specifications
| Specification | Detail |
|---|---|
| Finish | Zinc Plated |
Selecting the right option
Select the screw anchor by diameter and length, then drill to the hole depth shown for that size. Check the maximum fastening thickness for the part being fixed and confirm the base material is concrete or solid masonry.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Screw Anchor Hexagonal Head Zinc Plated: M10 / 60 mm
SKU: A0183841 | Model: ASBMZ100602
This is the fastener size M10, fastener length 60mm option of the Screw Anchor Hexagonal Head Zinc Plated. Key details for this option: anchor type Masonry Screw Anchor, head type Hex Head, material Carbon Steel, thread form Self-Threading Masonry Thread.
Screw Anchor Hexagonal Head Zinc Plated
AS1789
Class 8.8
Zinc Plated
About Masonry Screw Bolt
Masonry Screw Bolt is a highly versatile anchor providing the combined performance characteristics of other mechanical anchors and those of chemical anchors with the added benefit of being fully removable.
Manufactured from high-tensile steel the shank with dual helix threads that self-tap into concrete, masonry, stone, and timber.
The holding power is developed evenly along the entire shank with minimal pretension expansion forces enabling installation at close centres and edge distances.
