Seagull Double Lip Oil Seal 235 x 270 x 16mm (235X270X16TC)

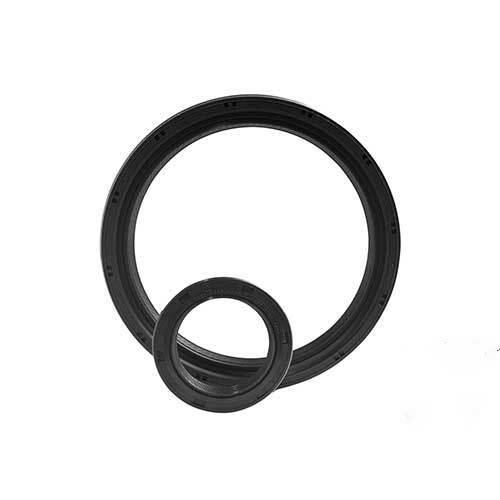

Seagull double lip oil seal, 235 x 270 x 16 mm, model 235X270X16TC. It seals a 235 mm shaft in a 270 mm housing bore and is 16 mm wide.

A rotary shaft seal in Nitrile Rubber (NBR) that keeps lubricant in and contamination out where a shaft leaves a housing.

Where this product is used

• Large gearboxes, slew drives and heavy machinery shafts
• Mining, mineral processing and bulk handling drives
• Large pumps, fans and industrial shaft housings
• Maintenance and replacement of worn seals on heavy plant

Features

• Double lip (TC): a second lip on the outer side helps keep dust and dirt away from the main sealing lip
• Nitrile rubber (NBR) lip that suits mineral oils and greases in general machinery
• Model code 235X270X16TC gives the shaft, bore and width at a glance
• Seagull seals from AIMS Industrial, Sydney, with Australia-wide delivery

Key specifications

Selecting the right option

Match the shaft diameter, the housing bore and the width. Go by the shaft and bore rather than the lip of the old seal, as the lip sits slightly smaller than the shaft it seals on. Width is usually the least critical of the three, provided the housing has the depth.

Type TC is the double lip version, with a second lip on the outer side that helps keep dust and dirt off the main lip.

If the size you need is not listed, send AIMS the shaft diameter, housing bore and width and we will check what is available.

Fitting and use

Fit the seal with the main lip facing the fluid you are keeping in, press it in square using a tool that bears on the outer face of the seal, and avoid hammering directly on the seal.

Lubricate the lip with the system oil or grease before assembly, and cover keyways, splines, threads or sharp shoulders with a sleeve or tape so they cannot cut the lip as it passes over.

Run the seal on a clean, smooth shaft with a lead-in chamfer and no burrs. A shaft finished to ISO h11 is the usual guide for rotary shaft seals.
