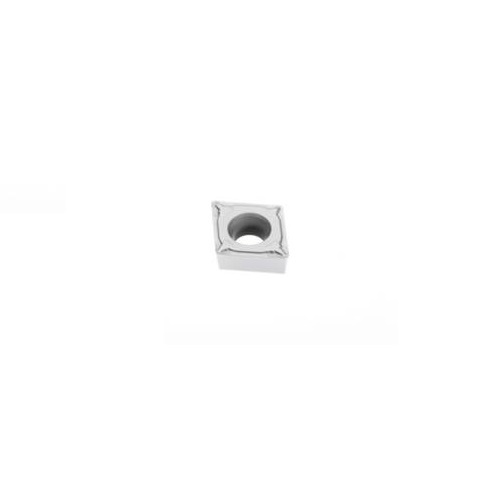

Seco CCMT120404W-F1 Turning Insert TP2501
The price shown is for the pack.
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP2501 with F1 chipbreaker. This is the CCMT insert style in grade TP2501 (Carbide CVD), with the F1 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 3 options.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | F1 |
| Insert Details | C shape code. T Insert Type. 7° insert side clearance angles. ± 0.13/± 0.08mm tolerance. |
About Grade TP2501
Carbide CVD. CVD Coated. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome) W-
About the F1 Chipbreaker
A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish. Suitable for high feed rates at small depths of cut. Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert CCMT Insert Style - W-F1 7° Grade TP2501 12.7mm IC: CCMT120404W-F1
SKU: A0115710 | Model: 02960818

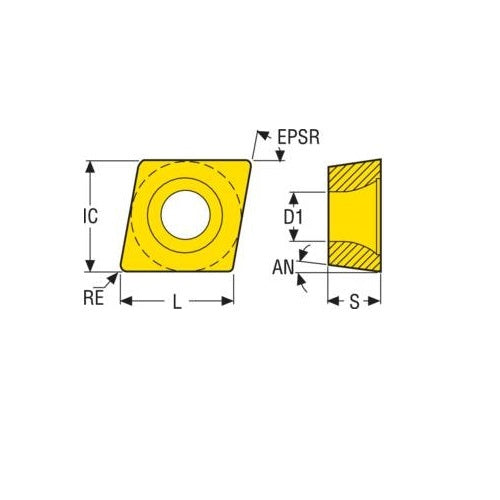

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm T Insert Type - W-F1 7° Grade TP2501 ± 0.13/± 0.08mm CCMT120404W-F1 Pack of 10
Turning Insert C Shape Code T Insert Type - W-F1 7° Grade TP2501 - ± 0.13/± 0.08mm Tolerance
C shape code.
T Insert Type.
7° insert side clearance angles.
± 0.13/± 0.08mm tolerance.
TP2501 Insert Grade
CVD Coated.
Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)

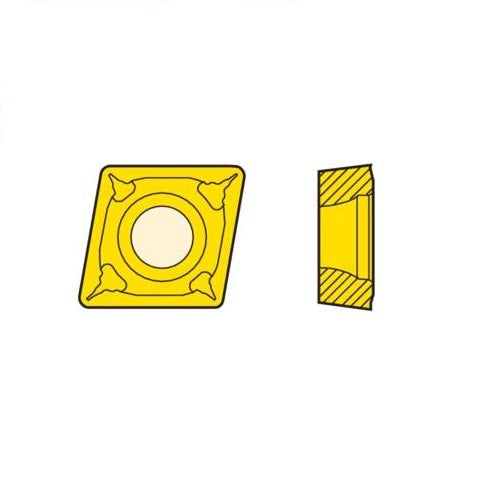

W-F1 Chipbreaker Programme
A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish.
Suitable for high feed rates at small depths of cut.
Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
