Seco DCGT11T304F-AL,TS2050 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 55° rhombic (diamond) turning insert, Grade TS2050 with AL chipbreaker.
Key Specifications
| Grade | TS2050 |
|---|---|
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | AL |
| Insert Details | T Insert Type. 7° insert side clearance angles. |
About Grade TS2050
PVD coated. Hard and wear-resistant micrograin grade intended for finishing and semi-finishing of superalloys. Ti-Al-Si-N nanolaminate coating
About the AL Chipbreaker
Chipbreaker for positive inserts. Intended for machining of aluminium alloys. The highly polished rake face and the very large rake angle ensure extremely light cutting action. Indicative machining range: f = 0,15–0,60 mm/rev, ap = 0,5–4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert DCGT Insert Style - AL 7° Grade TS2050: DCGT11T304F-AL,TS2050
SKU: A0115958 | Model: 02951297

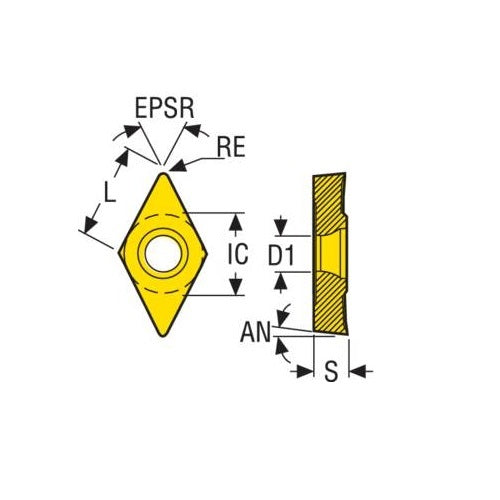

Seco Turning Insert D Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - AL 7° Grade TS2050 ± 0.13/± 0.025mm DCGT11T304F-AL Pack of 10
Turning Insert D Shape Code T Insert Type - AL 7° Grade TS2050
D shape code
T Insert Type.
7° insert side clearance angles.
TS2050 Insert Grade
PVD coated.
Hard and wear-resistant micrograin grade intended for finishing and semi-finishing of superalloys.
Ti-Al-Si-N nanolaminate coating
AL Chipbreaker Programme
Chipbreaker for positive inserts. Intended for machining of aluminium alloys.
The highly polished rake face and the very large rake angle ensure extremely light cutting action.
Indicative machining range: f = 0,15–0,60 mm/rev, ap = 0,5–4,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
