Seco Turning Insert D Shape Code 3.97 x | AIMS Industrial

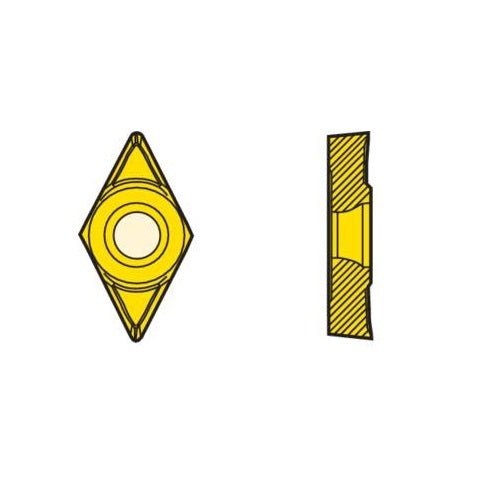

***Illustrations shown may vary from actual product***

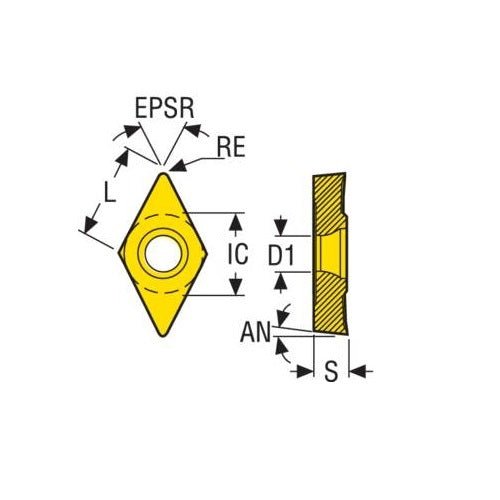

Seco Turning Insert D Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - AL 7° Grade TS2050 ± 0.13/± 0.025mm DCGT11T304F-AL Pack of 10

Turning Insert D Shape Code T Insert Type - AL 7° Grade TS2050

• D shape code
• T Insert Type.
• 7° insert side clearance angles.

TS2050 Insert Grade

• PVD coated.
• Hard and wear-resistant micrograin grade intended for finishing and semi-finishing of superalloys.
• Ti-Al-Si-N nanolaminate coating

AL Chipbreaker Programme

• Chipbreaker for positive inserts. Intended for machining of aluminium alloys.
• The highly polished rake face and the very large rake angle ensure extremely light cutting action.
• Indicative machining range: f = 0,15–0,60 mm/rev, ap = 0,5–4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
