Seco DCMT11T302-F1,TP1030 Turning Insert
The price shown is for the pack.
Available

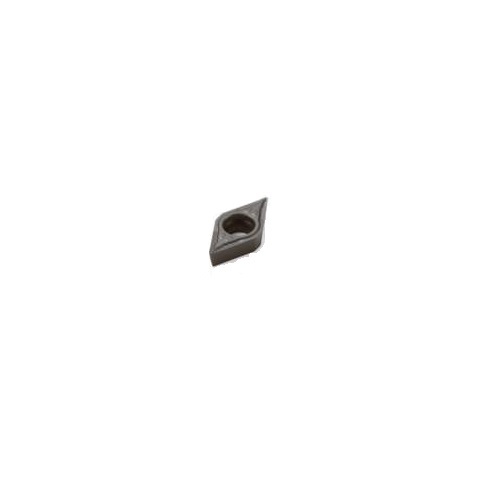

Genuine Seco 55° rhombic (diamond) turning insert, Grade TP1030 with F1 chipbreaker. This is the DCMT insert style in grade TP1030, with the F1 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 4 options.
Key Specifications
| Grade | TP1030 |
|---|---|
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | F1 |

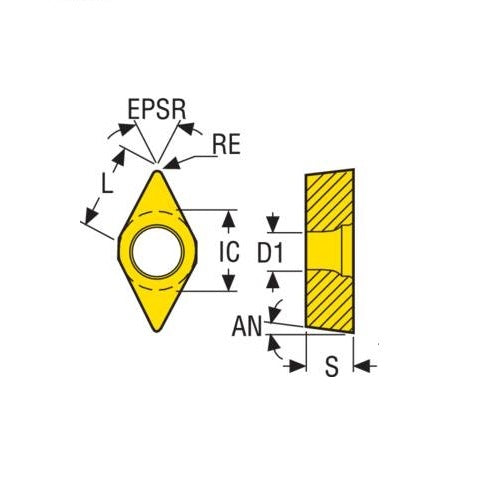

| Insert Details | D shape code. T Insert Type. 7° insert side clearance angles. |
About Grade TP1030
Cermet. Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steels and stainless steels. Ti-Al-Si-N nanolaminate coating.
About the F1 Chipbreaker
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties. Suitable for high feed rates at fine depths of cut in precision forgings and castings. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm. Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert DCMT Insert Style - F1 7° Grade TP1030: DCMT11T302-F1,TP1030
SKU: A0116001 | Model: 02754849
Seco Turning Insert D Shape Code 3.97 x 0.2 x 9.53mm T Insert Type - F1 7° Grade TP1030 ± 0.13/± 0.05mm DCMT11T302-F1 Pack of 10
Turning Insert D Shape Code T Insert Type - F1 7° Grade TP1030
D shape code.
T Insert Type.
7° insert side clearance angles.
TP1030 Insert Grade
Cermet.
Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steels and stainless steels.
Ti-Al-Si-N nanolaminate coating.
F1 Chipbreaker Programme
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
Suitable for high feed rates at fine depths of cut in precision forgings and castings.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
