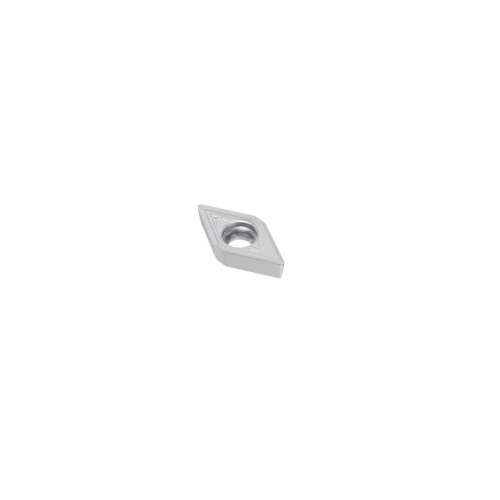

Seco DCMT070204-M3,TP1501 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 55° rhombic (diamond) turning insert, Grade TP1501 with M3 chipbreaker. This is the DCMT insert style in grade TP1501 (Carbide CVD), with the M3 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 4 options.
Key Specifications
| Grade | TP1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | M3 |

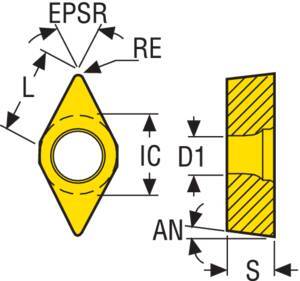

| Insert Details | T Insert Type. 7° insert side clearance angles. ± 0.05/± 0.05mm tolerance. |
About Grade TP1501
Carbide CVD. CVD Coated. Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for the productive general turning of steels and a useful backup in other material groups. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M3 Chipbreaker
A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow. Suitable for medium cuts in steel and stainless steel application including boring. Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert DCMT Insert Style - M3 7° Grade TP1501: DCMT070204-M3,TP1501
SKU: A0116061 | Model: 02960902
Seco Turning Insert D Shape Code 2.38 x 0.4 x 6.35mm T Insert Type - M3 7° Grade TP1501 ± 0.05/± 0.05mm DCMT070204-M3 Pack of 10
Turning Insert D Shape Code T Insert Type - M3 7° Grade TP1501 - ± 0.05/± 0.05mm Tolerance
D shape code
T Insert Type.
7° insert side clearance angles.
± 0.05/± 0.05mm tolerance.
TP1501 Insert Grade
CVD Coated.
Duratomic® grade.
Highly heat and wear-resistant grade extremely well suited for the productive general turning of steels and a useful backup in other material groups.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
M3 Chipbreaker Programme
A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
Suitable for medium cuts in steel and stainless steel application including boring.
Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
