Seco Turning Insert D Shape Code T 2960896 | AIMS Industrial

***Illustrations shown may vary from actual product***

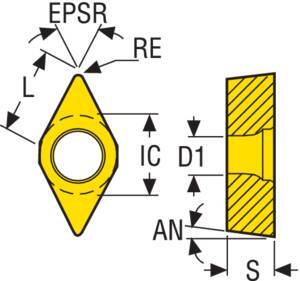

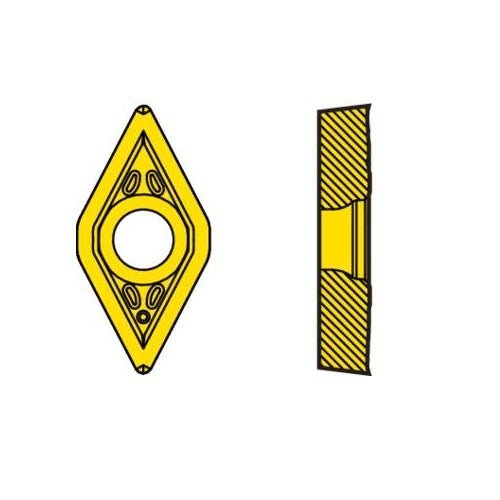

Seco Turning Insert D Shape Code 2.38 x 0.4 x 6.35mm T Insert Type - M3 7° Grade TP1501 ± 0.05/± 0.05mm DCMT070204-M3 Pack of 10

Turning Insert D Shape Code T Insert Type - M3 7° Grade TP1501 - ± 0.05/± 0.05mm Tolerance

• D shape code
• T Insert Type.
• 7° insert side clearance angles.
• ± 0.05/± 0.05mm tolerance.

TP1501 Insert Grade

• CVD Coated.
• Duratomic® grade.
• Highly heat and wear-resistant grade extremely well suited for the productive general turning of steels and a useful backup in other material groups.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M3 Chipbreaker Programme

• A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
• Suitable for medium cuts in steel and stainless steel application including boring.
• Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
