Seco DCMT070202-MF2,TP1020 Turning Insert
The price shown is for the pack.
Available

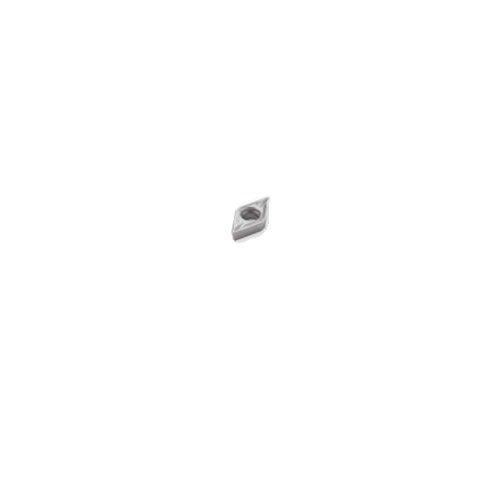

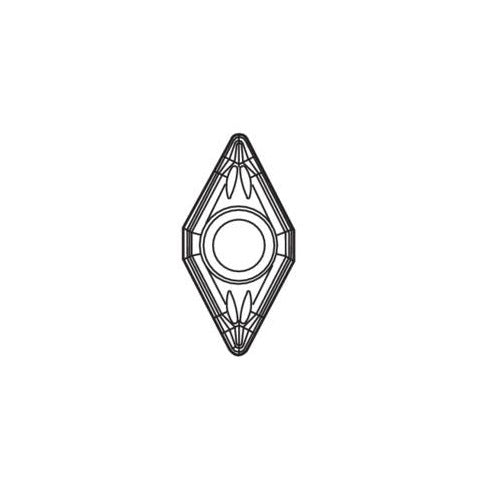

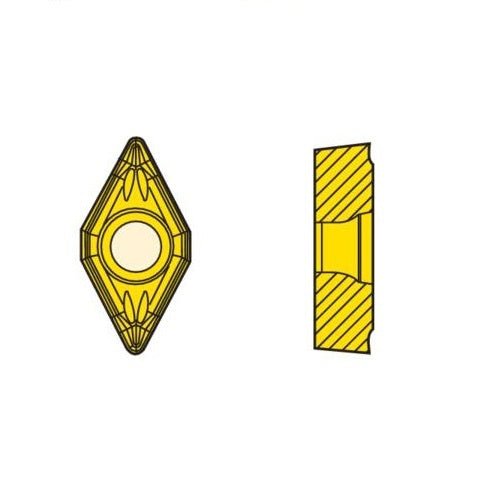

Genuine Seco 55° rhombic (diamond) turning insert, Grade TP1020 with MF2 chipbreaker.
Key Specifications
| Grade | TP1020 |
|---|---|
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | MF2 |
| Insert Details | T Insert Type. 7° insert side clearance angles. |
About Grade TP1020
Cermet. High wear resistance cermet grade for the highest surface finish with predictability, first of all, in steels and stainless steels.
About the MF2 Chipbreaker
A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts. Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring. Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert DCMT Insert Style - MF2 7° Grade TP1020: DCMT070202-MF2,TP1020
SKU: A0116105 | Model: 02754840

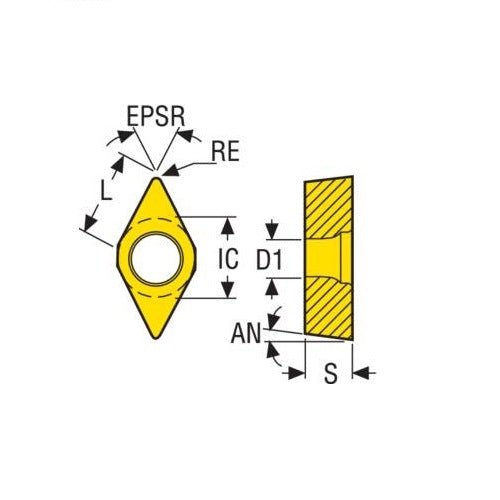

Seco Turning Insert D Shape Code 2.38 x 0.2 x 6.35mm T Insert Type - MF2 7° Grade TP1020 ± 0.05/± 0.05mm DCMT070202-MF2 Pack of 10
Turning Insert D Shape Code T Insert Type - MF2 7° Grade TP1020
D shape code
T Insert Type.
7° insert side clearance angles.
TP1020 Insert Grade
Cermet.
High wear resistance cermet grade for the highest surface finish with predictability, first of all, in steels and stainless steels.
MF2 Chipbreaker Programme
A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts.
Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring.
Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
