Seco VBGT160404-M3 Turning Insert HX
Available

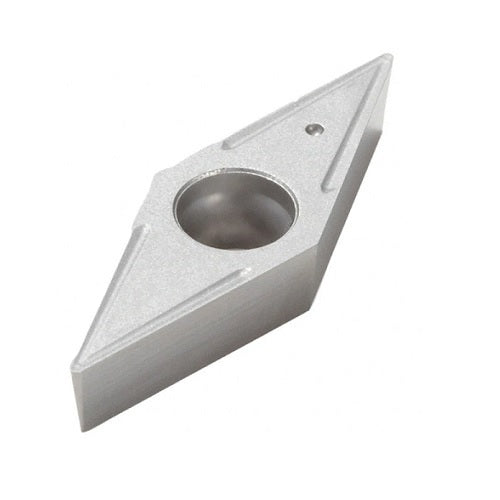

Genuine Seco 35° rhombic (diamond) turning insert, Grade HX with M3 chipbreaker.
Key Specifications
| Grade | HX |
|---|---|
| Substrate / Coating | Carbide Uncoated |
| Insert Shape | 35° rhombic (diamond) (ISO shape code V) |
| Chipbreaker | M3 |
| Insert Details | T Insert Type. 5° insert side clearance angles. |
About Grade HX
Uncoated. A universal uncoated grade intended for machining of cast iron and hardened steels useful also in non-ferrous materials.
About the M3 Chipbreaker
A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow. Suitable for medium cuts in steel and stainless steel application including boring. Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
VBGT160404-M3
Model Number: 02975562
-
VBGT160408-M3
Model Number: 02975563
