Seco Turning Insert W Shape Code 3.97 x | AIMS Industrial

***Illustrations shown may vary from actual product***

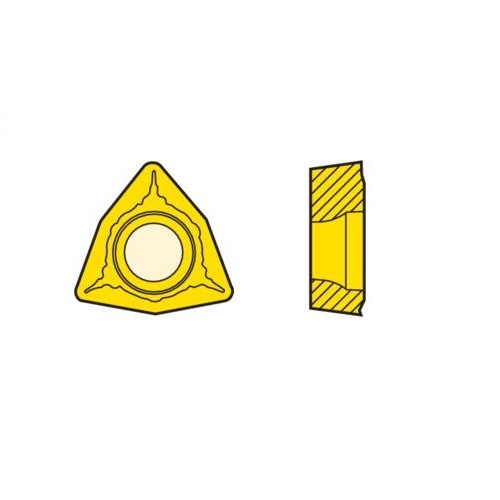

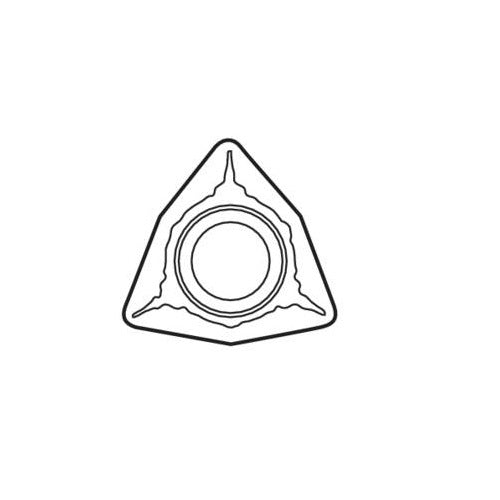

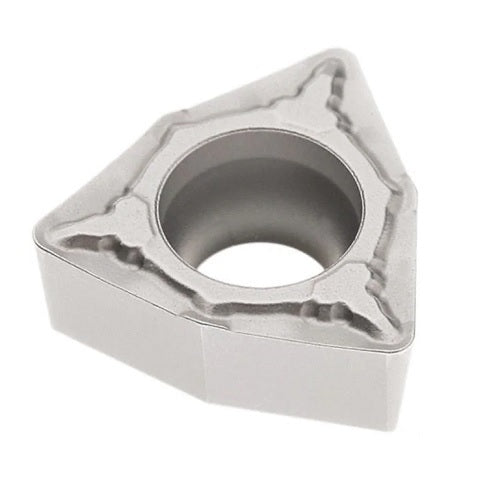

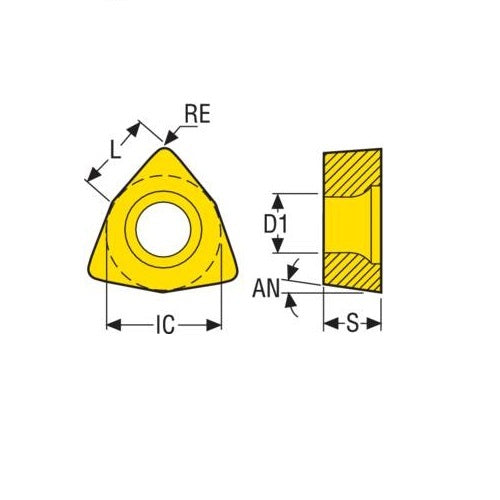

Seco Turning Insert W Shape Code 3.97 x 0.79 x 9.53mm T Insert Type - F1 7° Grade TP2501 ± 0.13/± 0.05mm WCMT06T308-F1 Pack of 10

Turning Insert W Shape Code T Insert Type - F1 7° Grade TP2501

• W shape code.
• T Insert Type.
• 7° insert side clearance angles.

TP2501 Insert Grade

• CVD Coated.
• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

F1 Chipbreaker Programme

• Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
• Suitable for high feed rates at fine depths of cut in precision forgings and castings.
• Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
• Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
