3.5 mm x 13 mm Security Torx Self-Tapping Screw, 304 Stainless Steel - YBXTA26GX13
Available

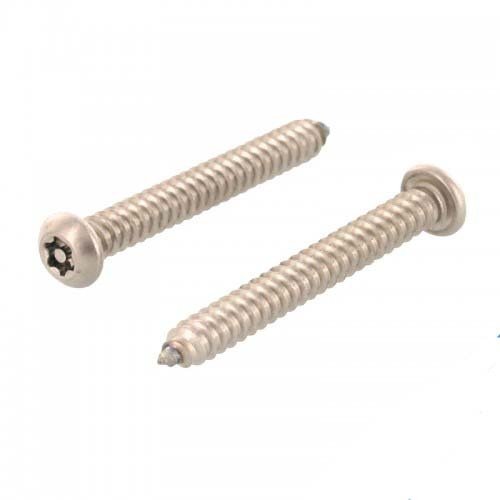

Made in 304 (A2) stainless steel, the Security Button Post Torx Self Tapping Screw is a Torx security screw with a Torx recess that includes a centre pin, so it needs a matching security Torx bit to drive it. It has a self-tapping thread for thin sheet metal, plastics and timber..
You can choose from 16 variants, covering sizes 3.5 mm to 4.8 mm and lengths 13 mm to 50 mm. Each variant is supplied in packs of 100.
The A2 (304) stainless material suits indoor, fresh water and typical outdoor use. Where the fastening is exposed to salt air, pool chemicals or marine conditions, A4 (316) is the grade to use instead.
In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Signs, furniture and fittings
- General workshop and maintenance use
- Thin sheet metal, plastic and timber in tamper-prone locations
- Transport, sports and playground fittings
- Public-area fixtures, signs and panels
Features
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
- Choice of 16 sizes, 3.5 mm to 4.8 mm
- Supplied in packs of 100
- Self-tapping thread for thin material
- Centre pin in the Torx recess resists standard drivers
- Lengths from 13 mm to 50 mm
Key specifications
| Specification | Detail |
|---|---|
| Product | Security Button Post Torx Self Tapping Screw |
| Type | Torx security screw with a Torx recess that includes a centre pin |
| Material | A2 (304) stainless steel |
| Key features | Centre pin in the Torx recess resists standard drivers; Self-tapping thread for thin material |
| Sizes available | 3.5 mm to 4.8 mm |
| Suited to | Indoor, fresh water and general outdoor use |
| Drive | Security Torx |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Lengths available | 13 mm to 50 mm |
| Listed variants | 16 |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Pack size | 100 |
Selecting the right option
A security screw only deters casual tampering. A matching security Torx bit is needed to fit or remove it. Check the variant for the bit size. Drill a pilot hole and keep the driving speed low.
Related products
Other versions in this range: Security Countersunk Torx Self-Tapping Screw, A2 304 Stainless Steel, Security Button Head Torx Self-Tapping Screw, A2 304 Stainless Steel and Security CSK Post Torx Self Tapping Screw 304 Stainless Steel.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
3.5 mm / 13 mm
Model Number: YBXTA26GX13
-
3.5 mm / 19 mm
Model Number: YBXTA26GX19
-
3.5 mm / 25 mm
Model Number: YBXTA26GX25
-
3.5 mm / 32 mm
Model Number: YBXTA26GX32
-
3.5 mm / 38 mm
Model Number: YBXTA26GX38
-
4.2 mm / 13 mm
Model Number: YBXTA28GX13
-
4.2 mm / 19 mm
Model Number: YBXTA28GX19
-
4.2 mm / 25 mm
Model Number: YBXTA28GX25
-
4.2 mm / 32 mm
Model Number: YBXTA28GX32
-
4.2 mm / 38 mm
Model Number: YBXTA28GX38
-
4.8 mm / 13 mm
Model Number: YBXTA210GX13
-
4.8 mm / 19 mm
Model Number: YBXTA210GX19
-
4.8 mm / 25 mm
Model Number: YBXTA210GX25
-
4.8 mm / 32 mm
Model Number: YBXTA210GX32
-
4.8 mm / 38 mm
Model Number: YBXTA210GX38
-
4.8 mm / 50 mm
Model Number: YBXTA210GX50
