M6 Security Shear Nut, 316 Stainless Steel - SHNA4M6

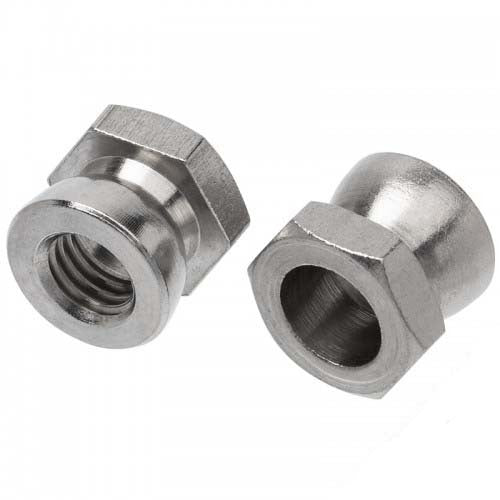

Made in 316 (A4) stainless steel, the Security Shear Nut is a security nut with a break-off head. When it is tightened to the set torque, the head shears away and leaves a rounded nut that cannot easily be removed with a normal spanner.

This listing has 4 variants covering sizes M6 to M12. Every size comes in packs of 100.

Supplied in 316 (A4) stainless steel. The molybdenum in A4 gives better resistance to chlorides than A2 (304), so it is the usual choice near the coast, around pools and in marine and food-processing environments. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.

Where this product is used

• Outdoor fittings exposed to salt air
• Public-area fixtures, signs and street furniture
• Transport, sports and playground fittings
• Small sizes for enclosures, instruments and light fittings
• Architectural work near the coast
• Marine and coastal fixtures

Features

• Supplied in packs of 100
• Leaves a rounded nut that is difficult to remove
• Choice of 4 sizes, M6 to M12
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Head breaks off when fully tightened
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment

Key specifications

Selecting the right option

A shear nut is a one-way fastener, so use it only where the joint will not need to be taken apart. The shear torque is not stated in the supplier data.
