Wiha slotted bits 4.5 to 8.0mm, 4.5 x 0.6
Available

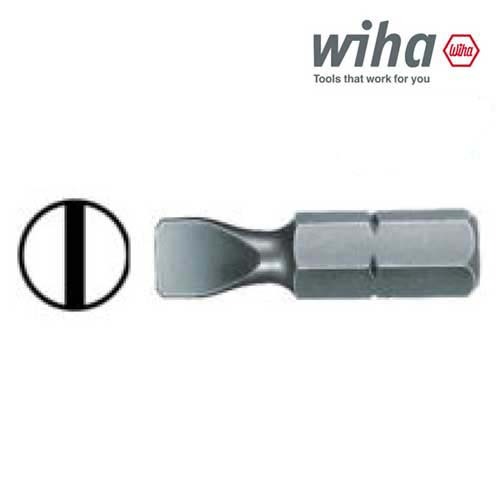

Wiha 7010Z slotted insert bits with a 1/4" hex drive (style C 6.3), 25mm long, in four slot widths: 4.5, 5.5, 6.5 and 8.0mm.
Cutting strength for each width, 0.6, 0.8, 1.2 and 1.6mm in the same order. Length and drive are the same on all four.
Where this product is used
- All types of screw applications in trade and industry
Features
- Slotted profile to DIN ISO 2380-1
- Drive to DIN 3126, ISO 1173, style C 6.3
- Chrome-vanadium steel, through hardened
- 25mm overall length, 1/4" hex drive
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | 7010Z |
| Drive | 1/4" hex, DIN 3126, ISO 1173, style C 6.3 |
| Overall length | 25mm |
| Material | Chrome-vanadium steel, through hardened |
| Slotted profile | DIN ISO 2380-1 |
| Slot width | 4.5mm, 5.5mm, 6.5mm, 8.0mm |
| Cutting strength | 0.6mm, 0.8mm, 1.2mm, 1.6mm |
Choosing the right option
Choose the slot width that fills the slot of the screw, 4.5 to 8.0mm here; the cutting strength grows with the width (0.6 to 1.6mm). For longer slotted bits or the 5/16" hex drive see the Wiha 1.6 x 8 x 41mm Slotted Insert Bit 5/16" Hex.
See also: Wiha 1.6 x 8 x 41mm Slotted Insert Bit 5/16" Hex, Phillips Insert Bit 1/4" Hex, Pozidriv Insert Bit 1/4" Hex.
| Option | Part number | SKU |
|---|---|---|
| 4.5 x 0.6 | 01623(7010Z) | A0144150 |
| 5.5 x 0.8 | 01624(7010Z) | A0144151 |
| 6.5 x 1.2 | 01626(7010Z) | A0144152 |
| 8.0 x 1.6 | 01627(7010Z) | A0144153 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Slotted Drive Insert Bit 1/4" Hex: 4.5 x 0.6
SKU: A0144150 | Model: 01623(7010Z)
Wiha 01623(7010Z): slotted insert bit, slot width 4.5mm, cutting strength 0.6mm, 25mm long, 1/4" hex drive.
