Stahlwille 3K Drall Phillips screwdrivers, PH1
Available

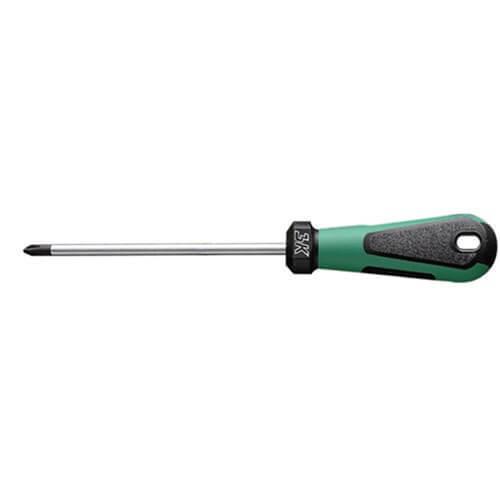

Stahlwille 4830 is a 3K Drall Phillips screwdriver range in 5 sizes, PH0 to PH4, with blade lengths of 60 to 200mm and overall lengths of 155 to 325mm. The 3-component handle has slip-resistant flocking and a hanging hole. The blade is Chrome Alloy Steel, matt chrome-plated, through-hardened and permanently anchored in the handle, with a black tip. The range is made to DIN 5262 and ISO 8764.
Where this product is used
- Driving and removing Phillips screws from PH0 to PH4
- Workshop, maintenance and assembly work
- Hanging the screwdriver on a rail or board through the hole in the handle
Features
- 5 Phillips sizes, PH0 to PH4
- 3-component handle with slip-resistant flocking
- Hanging hole in the handle
- Blade through-hardened and permanently anchored in the handle
- Chrome Alloy Steel, matt chrome-plated, black tip
- Made to DIN 5262 and ISO 8764
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Screwdriver |
| Sizes in this range | 5 |
| Profile | Phillips (PH) |
| Blade length (L1) | 60 to 200mm |
| Overall length | 155 to 325mm |
| Standard | DIN 5262 and ISO 8764 |
| Material | Chrome Alloy Steel, matt chrome-plated, black tip |
| Size | PH0, PH1, PH2, PH3, PH4 |
| Order no | 48301000 to 48301004 |
| Overall length (L2) | 155 to 325mm |
| Weight | 28 to 251 g |
Choosing the right option
Match the tip to the recess size. The Pozidriv versions are in the Stahlwille 4840 3K Drall Pozidriv screwdrivers and the slotted versions in the Stahlwille 4820 3K Drall slotted screwdrivers. Sets with these Phillips blades are the Stahlwille 4891/6 3K Drall screwdriver set and the Stahlwille 4892/8 3K Drall screwdriver set.
Related Stahlwille products: Stahlwille 4840 3K Drall Pozidriv screwdrivers, Stahlwille 4820 3K Drall slotted screwdrivers, Stahlwille 4891/6 3K Drall screwdriver set, Stahlwille 4892/8 3K Drall screwdriver set.
| Option | Part number | SKU |
|---|---|---|
| PH0 | SW4830 0 - 48301000 | A0104558 |
| PH1 | SW4830 1 - 48301001 | A0104559 |
| PH2 | SW4830 2 - 48301002 | A0104560 |
| PH3 | SW4830 3 - 48301003 | A0104561 |
| PH4 | SW4830 4 - 48301004 | A0104562 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Stahlwille 4830 3K Drall Phillips Screwdrivers, PH0 to PH4: PH1
SKU: A0104559 | Model: SW4830 1 - 48301001
Stahlwille SW4830 PH1: 3K Drall Phillips screwdriver, 80mm blade, 175mm overall, order number 48301001. Profile: Phillips (PH).
