Stahlwille SW730/80N 160-800 N·m 730 Size 80 Torque Wrench, 24.5 x 28 mm holder

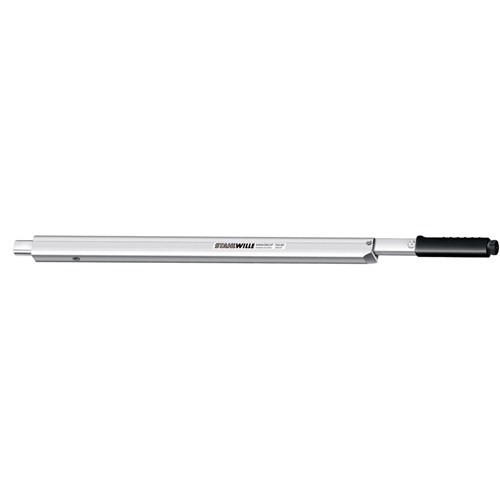

The Stahlwille MANOSKOP 730 size 80 is a basic torque wrench with a tool carrier for shell tools, covering 160 to 800 N·m (120 to 600 ft·lb). It is 970 mm long and weighs 4925 g, with a 24.5 x 28 mm shell holder (manufacturer-stated).

It has a quick adjuster, a cut-out and a dual N·m and ft·lb scale, and the steel tube encloses all working parts. Reversible shell tools allow anticlockwise operation. Stahlwille states a deviation of indication of ±4% and a calibration certificate in accordance with DIN EN ISO 6789-2:2017, and the wrench is supplied in a textile bag (manufacturer-stated).

A shell adaptor (No 7370/80) lets 14 x 18 mm insert tools be used in this wrench, up to 650 N·m (manufacturer-stated). Shell tools are ordered separately.

Where this product is used

• Heavy bolted joints with a specified torque of 160 to 800 N·m
• Plant, structural and large-equipment maintenance

Features

• 160 to 800 N·m (120 to 600 ft·lb) range with a 20 N·m scale division (manufacturer-stated)
• 24.5 x 28 mm shell tool holder (manufacturer-stated)
• Shell adaptor No 7370/80 allows 14 x 18 mm insert tools up to 650 N·m (manufacturer-stated)
• Cut-out signal when the set torque is reached (manufacturer-stated)
• Supplied with a textile bag (manufacturer-stated)

Key specifications

Selecting the right option

If you want a built-in ratchet at this torque, see the Stahlwille 721 torque wrenches with ratchet, 30 to 1000 N·m (721Nf sizes 80 and 100). For 14 x 18 mm insert tools at lower torque see the Stahlwille 730N clicking torque wrenches, 4 to 650 N·m or the Stahlwille 730 Quick torque wrenches, 6 to 650 N·m, whose largest size reaches 650 N·m.
