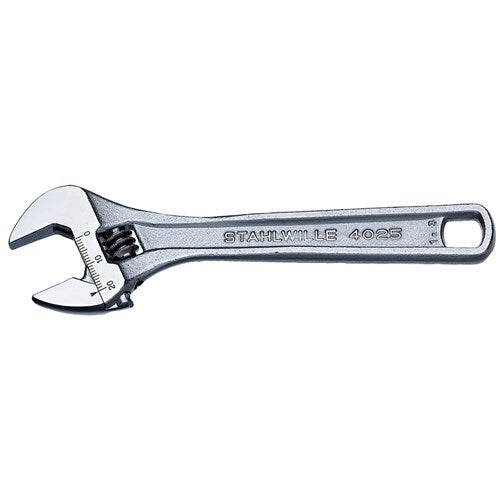

Stahlwille SW4025 4 Adjustable Spanner, 13 mm Opening, 115 mm Long

The Stahlwille 4025 is a metric adjustable single-end spanner range in 7 sizes (4, 6, 8, 10, 12, 15 and 18) with maximum openings from 13 to 53 mm, from 115 mm to 462 mm long. The datasheets print a right-hand adjusting screw, a jaw angle of 22.5 degrees and DIN 3117 / ISO 6787 Form B (manufacturer-stated).

The spanners are Chrome Vanadium steel, chrome-plated. The datasheets print no striking or hammer-use instruction. The 2017 Stahlwille brochure lists different item numbers and some different openings for this range, so use the order numbers in the table when matching a replacement.

Where this product is used

• Nuts and bolts up to 53 mm across flats by adjusting the jaw to fit
• One adjustable spanner in place of several fixed sizes
• Maintenance and service kits where the fastener sizes vary

Features

• Adjustable single-end spanner, right-hand adjusting screw (manufacturer-stated)
• 7 sizes with maximum openings from 13 to 53 mm (manufacturer-stated)
• Jaw angle 22.5 degrees (manufacturer-stated)
• Chrome Vanadium steel, chrome-plated (manufacturer-stated)
• Listed to DIN 3117 / ISO 6787 Form B (manufacturer-stated)
• Lengths from 115 to 462 mm (manufacturer-stated)

Common specifications

Key specifications

Maximum width across flats and lengths are manufacturer-stated.

Selecting the right option

Pick the size by the maximum width across flats you need to reach. The size shown in the selector (100 to 450) is the nominal length in mm used for this range; the actual length of each spanner is in the table. The left-hand-screw version is the Stahlwille 4026 left-hand adjustable spanners. For fixed sizes see the Stahlwille 10 MOTOR double open end spanners (metric, single) or the Stahlwille 4004 single open end spanners.
