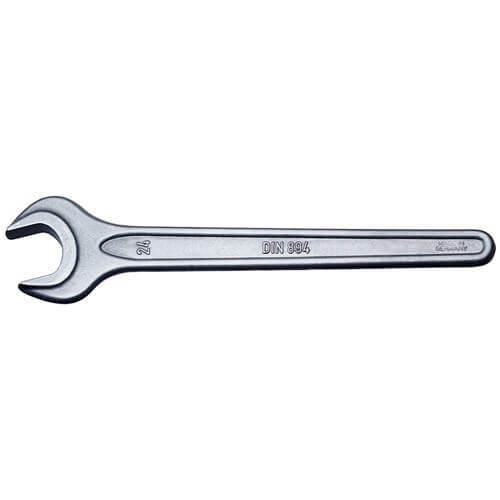

Stahlwille Metric single open end spanners, 30mm
Available
Stahlwille 4004 is a single open end spanner range in 17 metric sizes from 24 to 95mm across flats, from 215mm long. These are special steel spanners with a steel-grey finish, not chrome-plated.
Where this product is used
- Large metric nuts and bolts from 24 to 95mm across flats
- Open end access to large fasteners where a single end spanner suits
- Heavy maintenance work on large metric fasteners
Features
- Single open end spanner
- 17 metric sizes from 24 to 95mm across flats
- Special steel, steel-grey finish
- Made to DIN 894 for sizes up to 85mm
- Lengths from 215mm

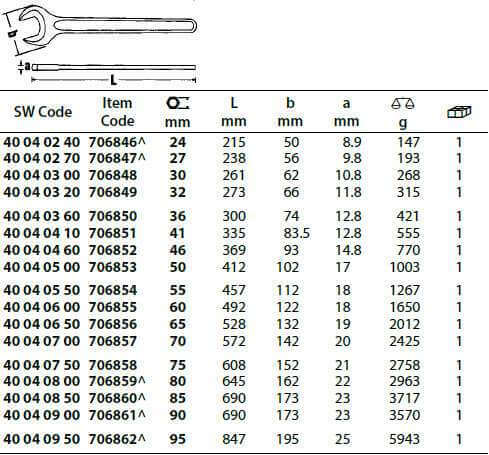

Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Open End Spanner |
| Length | 215 to 847mm |
| Standard | DIN 894 (sizes up to 85mm) |
| Material | Special steel, steel-grey finish |
| Sizes in this range | 17 |
| Width across flats | 24 to 95mm |
| Order no | 40040240 to 40040950 |
| Weight | 147 to 5,943 g |
Choosing the right option
Pick the size by the width across flats of the fastener. The 4004 starts at 24mm; smaller metric sizes are in the Stahlwille 10 MOTOR double open end spanners. For a ring head on large fasteners see the 4205 striking face ring spanners, and for tube access see the tubular box spanners. Made to DIN 894 for sizes up to 85mm.
Related Stahlwille products: 4205 striking face ring spanners, metric combination spanners, metric ratchet ring spanners, tubular box spanners.
| Option | Part number | SKU |
|---|---|---|
| 24 | SW4004 24 - 40040240 | A0103976 |
| 27 | SW4004 27 - 40040270 | A0103977 |
| 30 | SW4004 30 - 40040300 | A0103978 |
| 32 | SW4004 32 - 40040320 | A0103979 |
| 36 | SW4004 36 - 40040360 | A0103980 |
| 41 | SW4004 41 - 40040410 | A0103981 |
| 46 | SW4004 46 - 40040460 | A0103982 |
| 50 | SW4004 50 - 40040500 | A0103983 |
| 55 | SW4004 55 - 40040550 | A0103984 |
| 60 | SW4004 60 - 40040600 | A0103985 |
| 65 | SW4004 65 - 40040650 | A0103986 |
| 70 | SW4004 70 - 40040700 | A0103987 |
| 75 | SW4004 75 - 40040750 | A0103988 |
| 80 | SW4004 80 - 40040800 | A0103989 |
| 85 | SW4004 85 - 40040850 | A0103990 |
| 90 | SW4004 90 - 40040900 | A0103991 |
| 95 | SW4004 95 - 40040950 | A0103992 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Stahlwille 4004 Single Open End Spanners, Metric, 24 to 95 mm: 30
SKU: A0103978 | Model: SW4004 30 - 40040300
Stahlwille SW4004 30mm: single open end spanner, 261mm long, order number 40040300. Width (b): 62mm, Standard: DIN 894.
