Stahlwille Metric striking face ring spanners, 42mm
Available

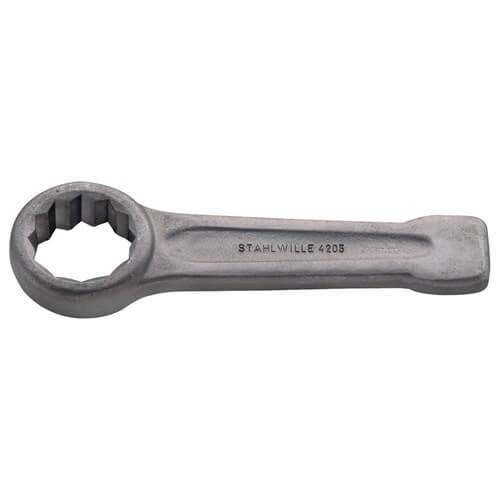

Stahlwille 4205 is a single end striking face ring spanner (Schlagringschlüssel) in metric sizes.
Where this product is used
- Large metric nuts and bolts from 24 to 100mm across flats
- Hand-operated work on large metric fasteners
Features
- Striking face ring spanner, single end
- Metric sizes from 24 to 210mm across flats
- Double hexagon ring
- Special steel, steel-grey finish
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Ring Spanner |
| Length | 160 to 400mm |
| Profile | Double hexagon |
| Standard | DIN 7444 |
| Material | Special steel, steel-grey finish |
| Sizes in this range | 36 |
| Size (across flats) | 24 to 210mm |
| Order no | 42050024 to 42050210 |
| Weight | 200 to 6,560 g |
Choosing the right option
Pick the size by the width across flats of the fastener. Smaller metric nuts and bolts are covered by the double ended Stahlwille 20 Deep Offset Double Ended Ring Spanners and Stahlwille 21 Straight Double Ended Ring Spanners.
Related Stahlwille products: metric combination spanners, metric ratchet ring spanners, metric double open end spanners, 20/10 offset ring spanner set (10-piece).

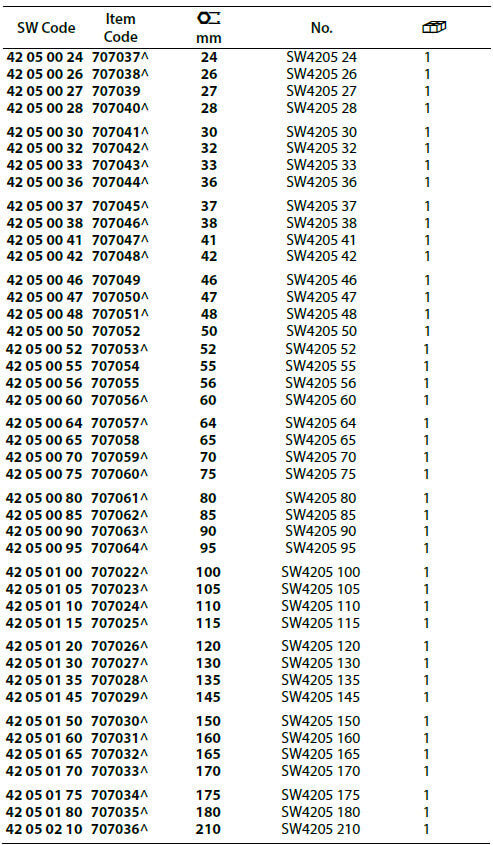

| Option | Part number | SKU |
|---|---|---|
| 24 | SW4205 24 - 42050024 | A0104007 |
| 26 | SW4205 26 - 42050026 | A0104008 |
| 27 | SW4205 27 - 42050027 | A0104009 |
| 30 | SW4205 30 - 42050030 | A0104011 |
| 32 | SW4205 32 - 42050032 | A0104012 |
| 36 | SW4205 36 - 42050036 | A0104014 |
| 38 | SW4205 38 - 42050038 | A0104016 |
| 41 | SW4205 41 - 42050041 | A0104017 |
| 42 | SW4205 42 - 42050042 | A0104018 |
| 46 | SW4205 46 - 42050046 | A0104019 |
| 47 | SW4205 47 - 42050047 | A0104020 |
| 48 | SW4205 48 - 42050048 | A0104021 |
| 50 | SW4205 50 - 42050050 | A0104022 |
| 55 | SW4205 55 - 42050055 | A0104024 |
| 60 | SW4205 60 - 42050060 | A0104026 |
| 65 | SW4205 65 - 42050065 | A0104028 |
| 70 | SW4205 70 - 42050070 | A0104029 |
| 75 | SW4205 75 - 42050075 | A0104030 |
| 80 | SW4205 80 - 42050080 | A0104031 |
| 85 | SW4205 85 - 42050085 | A0104032 |
| 90 | SW4205 90 - 42050090 | A0104033 |
| 95 | SW4205 95 - 42050095 | A0104034 |
| 100 | SW4205 100 - 42050100 | A0103993 |
| 105 | SW4205 105 - 42050105 | A0103994 |
| 110 | SW4205 110 - 42050110 | A0103995 |
| 115 | SW4205 115 - 42050115 | A0103996 |
| 120 | SW4205 120 - 42050120 | A0103997 |
| 130 | SW4205 130 - 42050130 | A0103998 |
| 135 | SW4205 135 - 42050135 | A0103999 |
| 145 | SW4205 145 - 42050145 | A0104000 |
| 160 | SW4205 160 - 42050160 | A0104001 |
| 165 | SW4205 165 - 42050165 | A0104002 |
| 170 | SW4205 170 - 42050170 | A0104003 |
| 175 | SW4205 175 - 42050175 | A0104004 |
| 180 | SW4205 180 - 42050180 | A0104005 |
| 210 | SW4205 210 - 42050210 | A0104006 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Stahlwille 4205 Striking Face Ring Spanners, Metric, 24 to 210 mm Across Flats: 42
SKU: A0104018 | Model: SW4205 42 - 42050042
Stahlwille SW4205 42mm: striking face ring spanner, 225mm long, 671 g, order number 42050042. Profile: Double hexagon.
