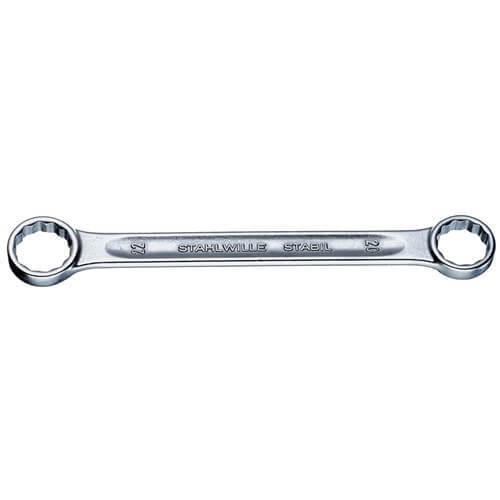

Stahlwille Straight metric ring spanners, 6 x 7mm

Stahlwille 21 (StahlwilleSTABIL 21) is a straight double ended ring spanner range with no offset, in 18 metric sizes from 6 x 7 to 30 x 34mm. The ring spanners are made to DIN 837 / ISO 10103.

The bi-hex (double hexagon, 12-point) profile carries Stahlwille's AS-Drive (Anti-Slip Drive) form, which transmits high forces to the flats of nuts and bolts without damaging them. The spanners are Chrome Alloy Steel, chrome-plated. The spanners are forged in a die, hardened and quenched in an oil bath, with a double-T profile for bending strength and a round finish for grip. The ring sides are higher than on standard nuts, which rules out jamming.

Where this product is used

• Metric nuts and bolts from 6 to 34mm across flats
• Straight-on access where no offset is needed
• Workshop tool kits that want a slim, light ring spanner range

Features

• Straight ring spanner, no offset
• 18 metric sizes from 6 x 7 to 30 x 34mm
• Bi-hex (12-point) profile with AS-Drive anti-slip form
• Chrome Alloy Steel, chrome-plated
• Made to DIN 837 / ISO 10103
• Forged in a die, hardened and quenched in an oil bath

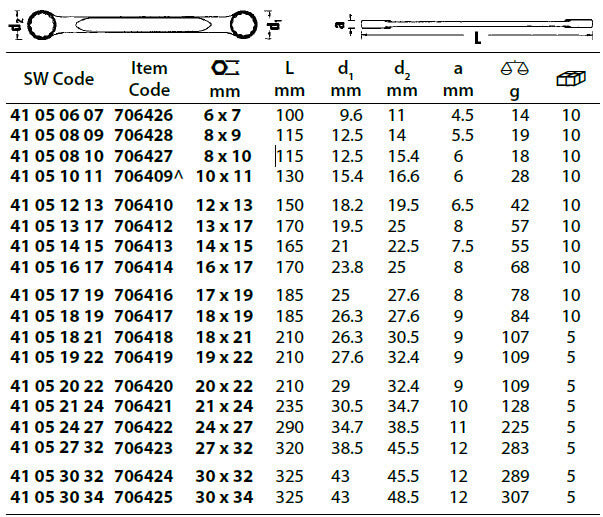

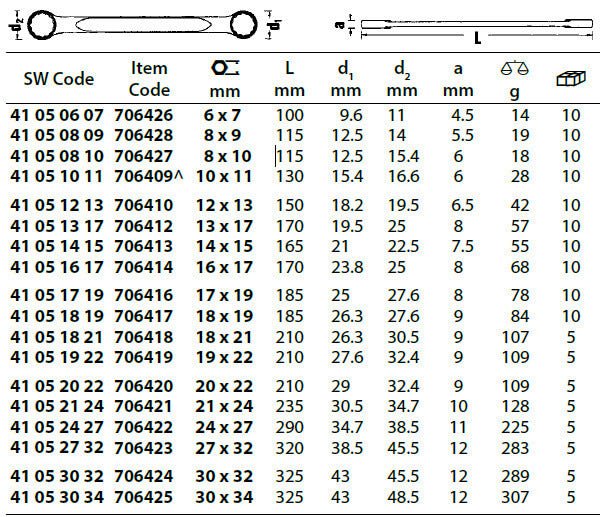

Key specifications

Choosing the right option

The 21 is the straight metric ring spanner. If the fastener needs the ring lifted clear of a surface, step to the 75° deep offset Stahlwille 20 Deep Offset Double Ended Ring Spanners or the 10° shallow offset Stahlwille 23 CORONA Shallow Offset Double Ended Ring Spanners. The 21/10 flat ring spanner set (10-piece) covers 6 x 7 to 30 x 32mm in one pack.

Related Stahlwille products: 21/10 flat ring spanner set (10-piece), 21/7 flat ring spanner set (7-piece), metric combination spanners, metric ratchet ring spanners.
