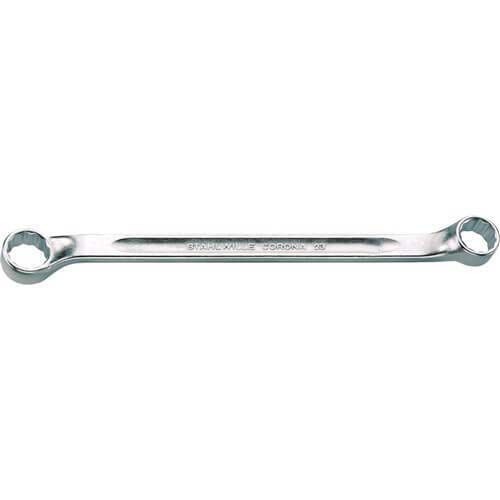

Stahlwille Shallow offset metric ring spanners, 6 x 7mm

Stahlwille 23 CORONA is a shallow offset double ended ring spanner range in 12 metric sizes from 6 x 7 to 30 x 32mm.

The bi-hex (double hexagon, 12-point) profile carries Stahlwille's AS-Drive (Anti-Slip Drive) form, which transmits high forces to the flats of nuts and bolts without damaging them. The spanners are Chrome Alloy Steel, chrome-plated, made to DIN 897 / ISO 10104. The spanners are forged in a die, hardened and quenched in an oil bath, with a double-T profile for bending strength and a round finish for grip.

Where this product is used

• Metric nuts and bolts from 6 to 32mm across flats
• Work close to a surface where clearance height is limited
• Tool kits that need a low-profile ring spanner

Features

• Shallow offset ring spanner, 10°
• 12 metric sizes from 6 x 7 to 30 x 32mm
• Bi-hex (12-point) profile with AS-Drive anti-slip form
• Chrome Alloy Steel, chrome-plated
• Made to DIN 897 / ISO 10104
• Forged in a die, hardened and quenched in an oil bath

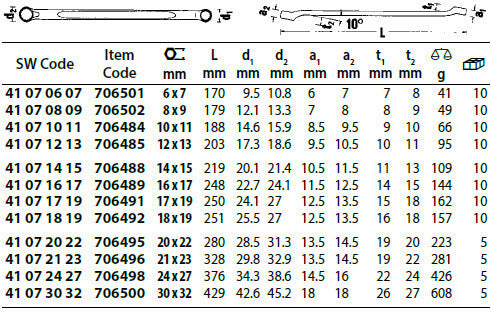

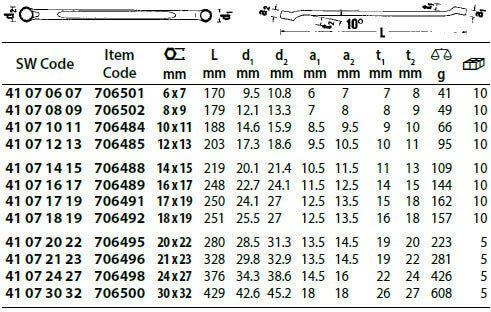

Key specifications

Choosing the right option

The 23 suits work close to a surface. For more offset see the 75° Stahlwille 20 Deep Offset Double Ended Ring Spanners, and for a straight spanner see the Stahlwille 21 Straight Double Ended Ring Spanners. Inch sizes with a shallow offset are in the Stahlwille 230a Shallow Offset Double Ended Ring Spanners. The 23/8 shallow offset ring spanner set (8-piece) covers 6 x 7 to 20 x 22mm in one pack.

Related Stahlwille products: 23/8 shallow offset ring spanner set (8-piece), 21/7 flat ring spanner set (7-piece), metric combination spanners, metric ratchet ring spanners.
