Stahlwille Shallow offset inch ring spanners, 1" x 1-1/16"AF
Available

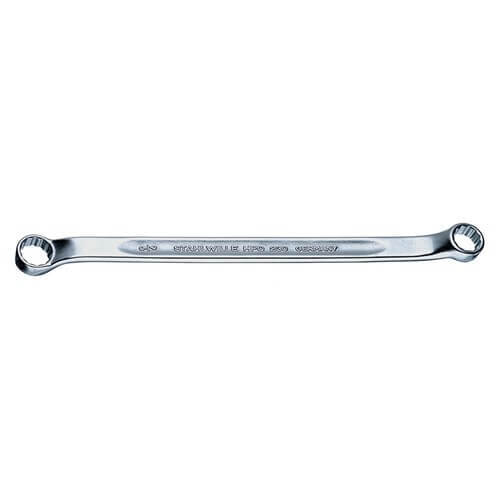

Stahlwille 230a is a shallow offset double ended ring spanner range in 13 sizes from 1/4 x 5/16" to 1 1/8 x 1 1/4", from 180mm to 403mm long. The offset is 10°. The bi-hex (double hexagon, 12-point) profile carries Stahlwille's AS-Drive (Anti-Slip Drive) form, which transmits high forces to the flats of nuts and bolts without damaging them. Spec. GGG-W-636 E / S.B.A.C. T.S. 48, with the wording "up to 1/2"" on the standards line.
Where this product is used
- Inch-series nuts and bolts from 1/4" to 1 1/4" across flats
- Work close to a surface where clearance height is limited
- Equipment maintenance kits built to inch sizes where HPQ steel is wanted
Features
- Shallow offset ring spanner, 10°
- 13 sizes from 1/4 x 5/16" to 1 1/8 x 1 1/4"
- Bi-hex (12-point) profile with AS-Drive anti-slip form
- HPQ steel, chrome-plated
- Slim, light construction with double-T profile for bending strength

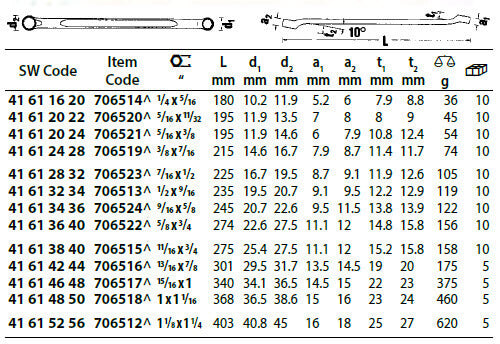

Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Ring Spanner |
| Length | 180 to 403mm |
| Offset | 10° offset |
| Profile | Bi-hex (double hexagon, 12-point) with AS-Drive profile |
| Standard | SAE AS 954 / Fed. Spec. GGG-W-636 E / S.B.A.C. T.S. 48 |
| Material | HPQ steel, chrome-plated |
| Sizes in this range | 13 |
| Order no | 41611620 to 41615256 |
| Weight | 45 to 620 g |
Choosing the right option
The 230a is the shallow offset inch ring spanner in HPQ steel. For metric sizes with a shallow offset see the Stahlwille 23 CORONA Shallow Offset Double Ended Ring Spanners. For a deeper 75° offset in inch sizes see the Stahlwille 20a Deep Offset Double Ended Ring Spanners.
Related Stahlwille products: 20a/10 imperial offset ring spanner set (10-piece), imperial combination spanners, imperial ratchet ring spanners, imperial flare nut spanners.
| Option | Part number | SKU |
|---|---|---|
| 1" x 1-1/16"AF | SW230 A 1X1.1/16 - 416148 | A0103912 |
| 1-1/8" x 1-1/4"AF | SW230 A 1.1/8X1.1/4 - 416 | A0103906 |
| 1/2" x 9/16"AF | SW230 A 1/2X9/16 - 416132 | A0103907 |
| 1/4" x 5/16"AF | SW230 A 1/4X5/16 - 416116 | A0103908 |
| 3/8" x 7/16"AF | SW230 A 3/8X7/16 - 416124 | A0103913 |
| 5/8" x 3/4"AF | SW230 A 5/8X3/4 - 4161364 | A0103916 |
| 5/16" x 3/8"AF | SW230 A 5/16X3/8 - 416120 | A0103915 |
| 5/16" x 11/32"AF | SW230 A 5/16X11/32 - 4161 | A0103914 |
| 7/16" x 1/2"AF | SW230 A 7/16X1/2 - 416128 | A0103917 |
| 9/16" x 5/8"AF | SW230 A 9/16X5/8 - 416134 | A0103918 |
| 11/16" x 3/4"AF | SW230 A 11/16X3/4 - 41613 | A0103909 |
| 13/16" x 7/8"AF | SW230 A 13/16X7/8 - 41614 | A0103910 |
| 15/16" x 1"AF | SW230 A 15/16X1 - 4161464 | A0103911 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Stahlwille 230a Shallow Offset Double Ended Ring Spanners, Imperial, 1/4 x 5/16" to 1 1/8 x 1 1/4": 1" x 1-1/16"AF
SKU: A0103912 | Model: SW230 A 1X1.1/16 - 416148
Stahlwille SW230a 1 x 1 1/16": shallow offset double ended ring spanner, 368mm long, 460 g, order number 41614850.
