Stahlwille Inch combination spanners, 1" AF

Stahlwille 13a is the inch-size version of the 13: a combination spanner range in 33 sizes from 3/16" to 2" across flats, from 95mm to 530mm long. Each spanner has the same size at both ends: an open end with the jaw angled at 15° and a 12-point ring offset by 15°.

The ring has the Stahlwille Anti-Slip-Drive (AS-Drive) profile, which puts the force on the flanks of the bolt or nut rather than the corners. The spanners are Chrome Alloy Steel, chrome-plated. The spanners are drop-forged, hardened and cooled in an oil bath, with a double-T profile for bending strength, a round finish for grip, thin-walled rings for hard-to-reach fastening points and a reinforced transition from jaw to shaft, where the highest forces act (Offset Shaft Design).

Where this product is used

• Inch-series nuts and bolts from 3/16" to 2" across flats
• Ring end for a firm hold, open end for quick turns or where a ring cannot be slipped over the fastener
• Equipment built to inch sizes where a combination spanner suits

Features

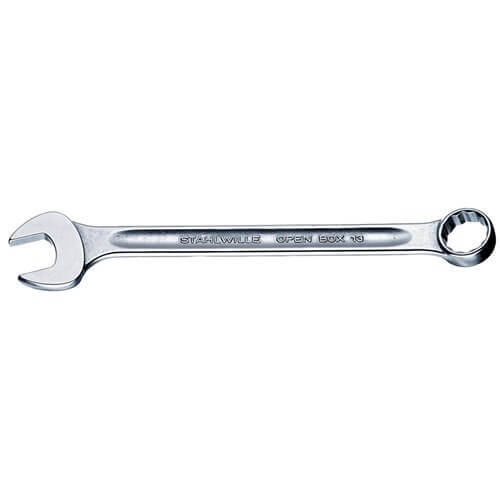

• Combination spanner, open end and 12-point ring
• 33 sizes from 3/16" to 2"
• Jaw angled at 15°, ring offset by 15°
• AS-Drive ring profile
• Chrome Alloy Steel, chrome-plated
• Drop-forged, hardened and cooled in an oil bath

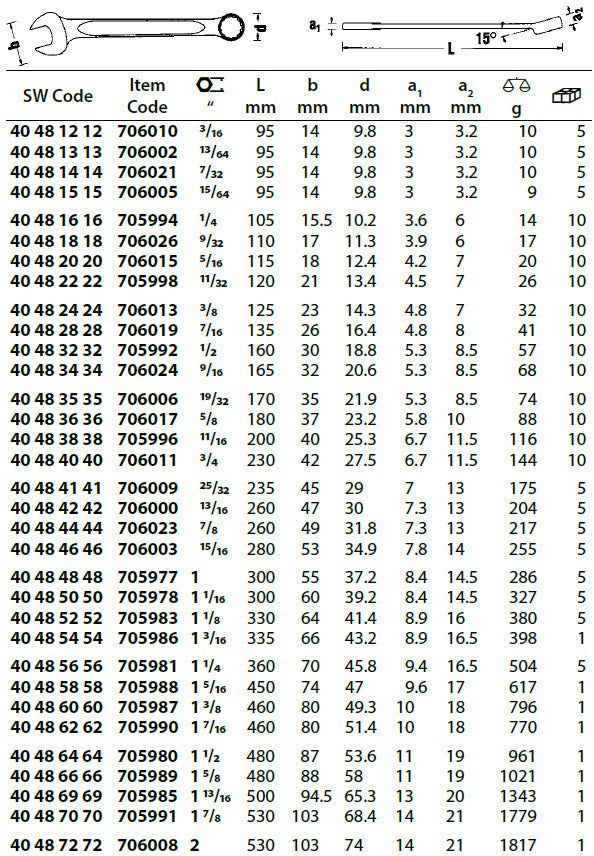

Key specifications

Choosing the right option

Pick the size by the inch width across flats of the fastener; both ends are the same size, and the range includes the less common 13/64", 15/64", 19/32" and 25/32". For metric sizes see the Stahlwille 13 combination spanners. Inch ring heads with a double open end are in the 10a MOTOR imperial double open end spanners, and the SW13A/10 imperial combination spanner set (10-piece) and SW13A/20 imperial combination spanner set (20-piece) give a spread of inch sizes in one pack.
