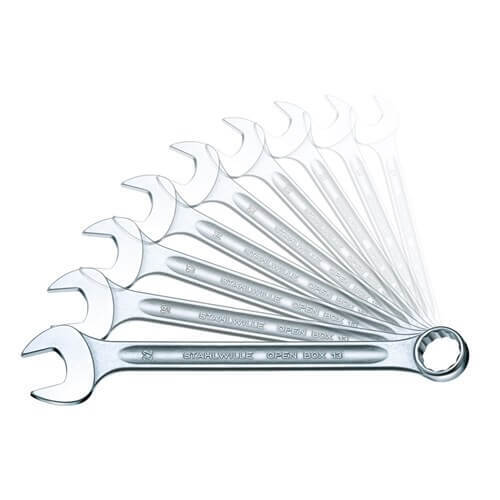

Stahlwille 13a/20 Imperial Combination Spanner Set, 20-Piece, 1/4" to 1 1/4"

Stahlwille 13a/20 is an imperial combination spanner set of 20 pieces from 1/4" to 1 1/4" across flats. Each spanner has the same size at both ends: an open end with the jaw angled at 15° and a 12-point ring offset by 15°.

The set contains the 1/4", 9/32", 5/16", 11/32", 3/8", 7/16", 1/2", 9/16", 19/32", 5/8", 11/16", 3/4", 25/32", 13/16", 7/8", 15/16", 1", 1 1/16", 1 1/8" and 1 1/4" spanners. They are the individually sold Stahlwille 13a spanners, so a worn or missing size can be replaced from the range. Set weight is 3,180 g. The ring has the Stahlwille Anti-Slip-Drive (AS-Drive) profile, which puts the force on the flanks of the bolt or nut rather than the corners. The spanners are Chrome Alloy Steel, chrome-plated. The spanners are drop-forged, hardened and cooled in an oil bath, with a double-T profile for bending strength, a round finish for grip, thin-walled rings for hard-to-reach fastening points and a reinforced transition from jaw to shaft, where the highest forces act (Offset Shaft Design).

Where this product is used

• Nuts and bolts from 1/4" to 1 1/4" across flats
• Ring end for a firm hold, open end for quick turns or where a ring cannot be slipped over the fastener
• A graded set for a workshop bench, service vehicle or maintenance kit

Features

• 20-piece set, 1/4" to 1 1/4" across flats
• Combination spanners, same size at both ends
• Jaw angled at 15°, ring offset by 15°
• 12-point AS-Drive ring
• Set weight 3,180 g
• Chrome Alloy Steel, chrome-plated

Key specifications

Choosing the right option

Pick the set by the sizes you use most. The spanners in it are also sold singly in the Stahlwille 13a combination spanners (imperial, single), so one missing or worn size can be replaced on its own. Nearby sets: SW13a/10 imperial combination spanner set, 10 pieces, 1/4" to 3/4" and SW13a/22 TCS imperial combination spanner set, 22 pieces, 3/16" to 1 1/4".
