Stahlwille Metric crow foot spanners, 11mm
Available

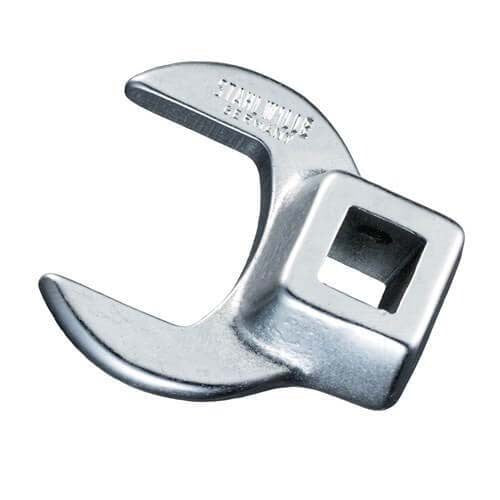

Stahlwille 540 is a metric crow foot spanner range in 30 sizes from 8 to 50mm across flats, from 25.5 to 75mm long. Each spanner is a single open end head with an internal square drive, 1/4" for the 8, 9 and 10mm sizes and 3/8" from 11mm up.
Where this product is used
- Metric hexagon nuts and bolts from 8 to 50mm across flats
- Fasteners where a ratchet, extension or handle with a square drive is used to turn an open end head
- Hand-operated tightening and loosening in workshop and maintenance kits
Features
- Crow foot spanner, single open end
- 30 metric sizes from 8 to 50mm across flats
- 1/4" internal square drive on 8 to 10mm, 3/8" from 11mm
- Chrome Alloy Steel, chrome-plated
- Lengths from 25.5 to 75mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Specialty Spanner |
| Length | 25.5 to 75mm |
| Square drive | 1/4" for 8 to 10mm, 3/8" for 11 to 50mm |
| Profile | Open end crow foot head with internal square drive |
| Material | Chrome Alloy Steel, chrome-plated |
| Sizes in this range | 30 |
| Size (across flats) | 8 to 50mm |
| Order no | 01200008 to 02200050 |
| Weight | 20 to 217 g |
Choosing the right option
Pick the size by the width across flats of the fastener, and note the drive size: 8 to 10mm sizes have a 1/4" drive and 11mm and larger have 3/8". The drive tool that turns the spanner, such as the 435-2K 3/8" drive ratchet with the 427QR 3/8" drive extension bars, or the 415-2K 1/4" drive ratchet with the 405QR 1/4" drive extension bars, has to match that drive size.
Related Stahlwille products: 435-2K 3/8" drive ratchet, 415-2K 1/4" drive ratchet, 427QR 3/8" drive extension bars, 730N MANOSKOP clicking torque wrenches.
| Option | Part number | SKU |
|---|---|---|
| 8 | SW540 8 - 01200008 | A0104063 |
| 9 | SW540 9 - 01200009 | A0104064 |
| 10 | SW540 10 - 01200010 | A0104035 |
| 11 | SW540 11 - 02200011 | A0104036 |
| 12 | SW540 12 - 02200012 | A0104037 |
| 13 | SW540 13 - 02200013 | A0104038 |
| 14 | SW540 14 - 02200014 | A0104039 |
| 15 | SW540 15 - 02200015 | A0104040 |
| 16 | SW540 16 - 02200016 | A0104041 |
| 17 | SW540 17 - 02200017 | A0104042 |
| 18 | SW540 18 - 02200018 | A0104043 |
| 19 | SW540 19 - 02200019 | A0104044 |
| 20 | SW540 20 - 02200020 | A0104045 |
| 21 | SW540 21 - 02200021 | A0104046 |
| 22 | SW540 22 - 02200022 | A0104047 |
| 23 | SW540 23 - 02200023 | A0104048 |
| 24 | SW540 24 - 02200024 | A0104049 |
| 25 | SW540 25 - 02200025 | A0104050 |
| 26 | SW540 26 - 02200026 | A0104051 |
| 27 | SW540 27 - 02200027 | A0104052 |
| 28 | SW540 28 - 02200028 | A0104053 |
| 30 | SW540 30 - 02200030 | A0104054 |
| 32 | SW540 32 - 02200032 | A0104055 |
| 34 | SW540 34 - 02200034 | A0104056 |
| 36 | SW540 36 - 02200036 | A0104057 |
| 40 | SW540 40 - 02200040 | A0104058 |
| 41 | SW540 41 - 02200041 | A0104059 |
| 42 | SW540 42 - 02200042 | A0104060 |
| 46 | SW540 46 - 02200046 | A0104061 |
| 50 | SW540 50 - 02200050 | A0104062 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Stahlwille 540 Crow Foot Spanners, Metric, 8 to 50 mm, 1/4" and 3/8" Square Drive: 11
SKU: A0104036 | Model: SW540 11 - 02200011
Stahlwille SW540 11mm: crow foot spanner, 3/8" internal square drive, 32mm long, 36 g, order number 02200011. Width (b): 22.2mm.
