Stahlwille 20/12 Offset Ring Spanner Set, 12-Piece, 6 x 7 to 30 x 32 mm
Available

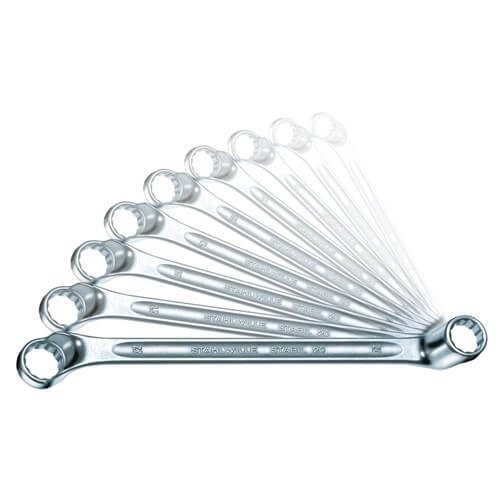

Stahlwille 20/12 is a metric ring spanner set of 12 pieces from 6 x 7 to 30 x 32mm across flats. Each spanner is double-ended with a different size at each end and a 12-point ring, deeply offset at 75°. The set is supplied in a carton.
The set contains the 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27, 25 x 28 and 30 x 32mm spanners. They are the individually sold Stahlwille 20 spanners, so a worn or missing size can be replaced from the range. Set weight is 3,137 g. The ring has the Stahlwille Anti-Slip-Drive (AS-Drive) profile, which puts the force on the flanks of the bolt or nut rather than the corners. The spanners are Chrome Alloy Steel, chrome-plated. The spanners are drop-forged, hardened and cooled in an oil bath, with a double-T profile for bending strength, a round finish for grip and thin-walled rings for hard-to-reach fastening points.
Where this product is used
- Metric nuts and bolts from 6 x 7 to 30 x 32mm across flats
- Fasteners where the ring needs a deep offset to clear a neighbouring surface
- A graded set for a workshop bench, service vehicle or maintenance kit
Features
- 12-piece set, 6 x 7 to 30 x 32mm across flats
- Double-ended ring spanners, a different size at each end
- Deep offset ring, 75°
- 12-point AS-Drive ring
- Supplied in a carton
- Set weight 3,137 g
- Chrome Alloy Steel, chrome-plated
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Ring Spanner Set |
| Pieces | 12 |
| Size range | 6 x 7 to 30 x 32mm |
| Set weight | 3,137 g |
| Packaging | Carton |
| Ring offset | Deep offset, 75° |
| Ring | 12-point (double hexagon) ring with the AS-Drive profile |
| Material | Chrome Alloy Steel, chrome-plated |
| Length | 165 to 365mm |
Choosing the right option
Pick the set by the sizes you use most. The spanners in it are also sold singly in the Stahlwille 20 deep offset ring spanners (metric, single), so one missing or worn size can be replaced on its own. Nearby sets: SW20/10 offset ring spanner set, 10 pieces, 6 x 7 to 30 x 32mm and SWVP20/5 offset ring spanner set, 5 pieces, 10 x 11 to 18 x 19mm.
Related Stahlwille products: Stahlwille 20 deep offset ring spanners (metric, single), SW20/10 offset ring spanner set, 10 pieces, 6 x 7 to 30 x 32mm, SWVP20/5 offset ring spanner set, 5 pieces, 10 x 11 to 18 x 19mm, Stahlwille 13 combination spanners (metric, single).
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Stahlwille 20/12 Offset Ring Spanner Set, 12-Piece, 6 x 7 to 30 x 32 mm
SKU: A0103862 | Model: SW20/12 - 96410406
Stahlwille SW20/12 - 96410406: offset Ring Spanner Set. Stahlwille order number: 96410406. Pieces: 12. Set weight: 3,137 g.
