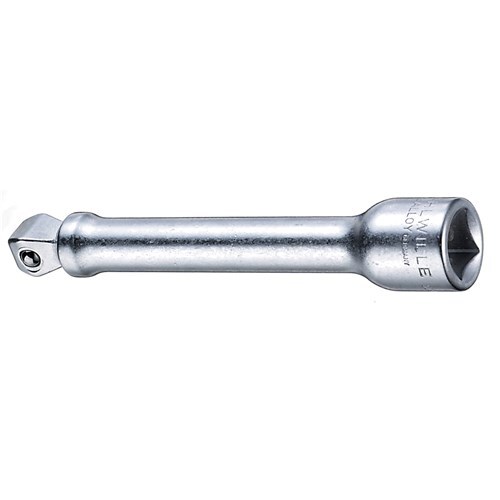

Stahlwille 1/2" Wobble-Drive extension bars, 52mm

Stahlwille 509W series are 1/2" drive Wobble-Drive extension bars in three lengths from 52 to 130mm. The drive swivels up to 15° each side of the centre position, with a maximum load of 200 N·m. The swivel lets the socket sit slightly off-line from the bar, which helps when the fastener and the ratchet cannot be lined up exactly. The material is chrome alloy steel, chrome-plated.

Where this product is used

• Reaching 1/2" drive fasteners that sit off-line
• Work where a rigid bar will not seat on the fastener
• Hand-operated service work within the 200 N·m load limit

Features

• 1/2" square drive, three lengths from 52 to 130mm
• Wobble-Drive swivel up to 15° each side of centre
• Maximum load 200 N·m
• Chrome alloy steel, chrome-plated

Key specifications

Choosing the right option

The 509W has the highest load limit of the Wobble-Drive bars in this range, 200 N·m, against 80 N·m for the 3/8" Stahlwille 427W 3/8" Drive Wobble-Drive Extension Bars and 40 N·m for the 1/4" Stahlwille 405W 1/4" Drive Wobble-Drive Extension Bars. For a rigid bar see the Stahlwille 509 1/2" Drive Extension Bars, and for a joint see the Stahlwille 510 1/2" Drive Universal Joint.
