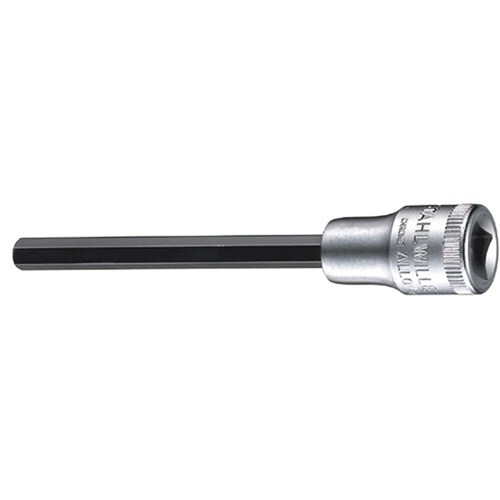

Stahlwille SW2049 4 mm INHEX Socket, 3/8" Drive, 100 mm Long

The Stahlwille 2049 is a long metric INHEX socket range for 3/8" drive: 5 hex sizes (4, 5, 6, 8 and 10 mm), from 100 to 120 mm long, for hexagon socket head screws. The 4, 5 and 6 mm sizes are 100 mm long and the 8 and 10 mm sizes are 120 mm long. The datasheets print DIN 7422 (manufacturer-stated).

Stahlwille lists these as the extra long (extra lang) 3/8" version. The sockets are Chrome Alloy Steel, chrome-plated. The square drive is internal, so the socket fits a 3/8" drive ratchet, handle or extension. The datasheets print no torque rating and no striking or extension instruction; they are for hand use.

Where this product is used

• 4 to 10 mm hexagon socket head screws set deep in a recess or housing
• Reaching past a raised edge where a standard 52 mm socket will not clear
• Toolkits with a 3/8" drive ratchet that need extra reach

Features

• Long INHEX sockets for 3/8" drive (manufacturer-stated)
• 5 metric sizes from 4 to 10 mm (manufacturer-stated)
• Lengths of 100 and 120 mm (manufacturer-stated)
• Chrome Alloy Steel, chrome-plated (manufacturer-stated)
• Listed to DIN 7422 (manufacturer-stated)

Common specifications

Key specifications

A dash means the figure is not published on this page. Lengths and weights are manufacturer-stated.

Selecting the right option

Pick the hex size by the hexagon socket in the screw head. For the standard 52 mm length see the Stahlwille 49 INHEX sockets. The SWVP2049/5 long INHEX socket value pack (3/8" drive) gives five long sizes in one pack. Turn them with a 435N 3/8" drive reversible ratchet, and the 427 3/8" drive extension bars add reach.

Related products

Related Stahlwille products: SWVP2049/5 long INHEX socket value pack (3/8" drive), 435N 3/8" drive reversible ratchet, 427 3/8" drive extension bars, 428 3/8" drive universal joint and 432 3/8" to 1/2" drive adaptor.
