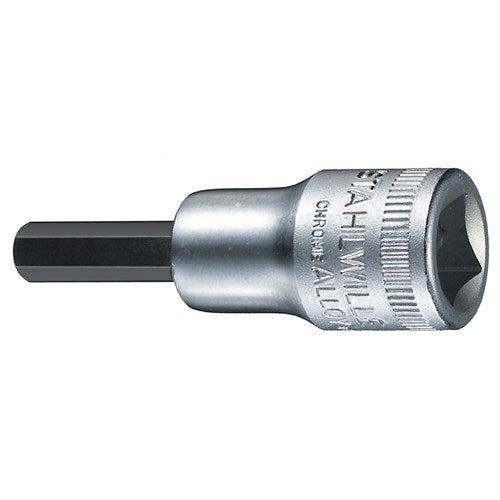

Stahlwille SW49 3 mm INHEX Socket, 3/8" Drive, 52 mm Long
Available
The Stahlwille 49 is a metric INHEX socket range for 3/8" drive: 7 hex sizes (3, 4, 5, 6, 7, 8 and 10 mm), each 52 mm long, for hexagon socket head screws. The datasheets print DIN 7422 (manufacturer-stated).
The sockets are Chrome Alloy Steel, chrome-plated. The square drive is internal, so the socket fits a 3/8" drive ratchet, handle or extension. The datasheets print no torque rating and no striking or extension instruction; they are for hand use.
Where this product is used
- Hexagon socket head screws from 3 to 10 mm
- Workshop and maintenance work where a 3/8" drive ratchet is the main tool
- Machine, vehicle and equipment assembly using socket head cap screws
Features
- INHEX socket, 52 mm long (manufacturer-stated)
- 7 metric sizes from 3 to 10 mm (manufacturer-stated)
- 3/8" internal square drive (manufacturer-stated)
- Chrome Alloy Steel, chrome-plated (manufacturer-stated)
- Listed to DIN 7422 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Drive size | 3/8" square |
| Sizes | 3 to 10 mm |
| Length | 52 mm |
| Standard | DIN 7422 (manufacturer-stated) |
| Material | Chrome Alloy Steel, chrome-plated |
| Sizes in this range | 7 |
Key specifications
| Hex size | Model | Order no. | Length | Weight |
|---|---|---|---|---|
| 3 mm | SW49 3 | 02050003 | 52 mm | 38 g |
| 4 mm | SW49 4 | 02050004 | 52 mm | 40 g |
| 5 mm | SW49 5 | 02050005 | 52 mm | 44 g |
| 6 mm | SW49 6 | 02050006 | 52 mm | 46 g |
| 7 mm | SW49 7 | 02050007 | 52 mm | 51 g |
| 8 mm | SW49 8 | 02050008 | 52 mm | 55 g |
| 10 mm | SW49 10 | 02050010 | 52 mm | 62 g |
A dash means the figure is not published on this page. Lengths and weights are manufacturer-stated.
Selecting the right option
Pick the hex size by the hexagon socket in the screw head. For extra reach in 3/8" drive see the Stahlwille 2049 long INHEX sockets, and for inch sizes the Stahlwille 49a INHEX sockets. The SWVP49/5 INHEX socket value pack (3/8" drive) gives a spread of sizes in one pack. Turn them with a 435N 3/8" drive reversible ratchet, and the 427 3/8" drive extension bars add reach.
Related products
Related Stahlwille products: SWVP49/5 INHEX socket value pack (3/8" drive), 435N 3/8" drive reversible ratchet, 427 3/8" drive extension bars, 428 3/8" drive universal joint and 432 3/8" to 1/2" drive adaptor.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
3mm socket
Model Number: SW49 3 - 02050003
-
4mm socket
Model Number: SW49 4 - 02050004
-
5mm socket
Model Number: SW49 5 - 02050005
-
6mm socket
Model Number: SW49 6 - 02050006
-
7mm socket
Model Number: SW49 7 - 02050007
-
8mm socket
Model Number: SW49 8 - 02050008
-
10mm socket
Model Number: SW49 10 - 02050010
