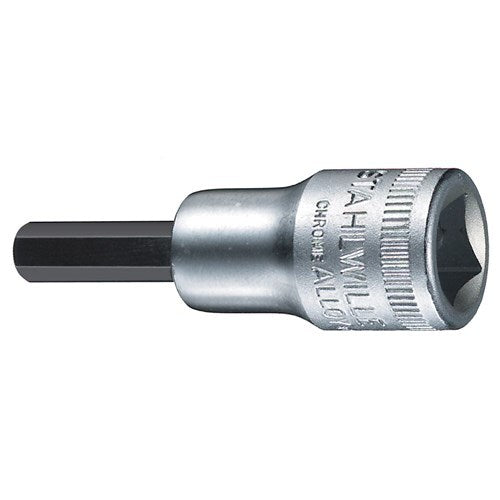

Stahlwille SW49a 1/4" INHEX Socket, 3/8" Drive, 52 mm Long
Available
The Stahlwille 49a is the inch-size INHEX socket range for 3/8" drive: 8 hex sizes from 1/8" to 3/8", each 52 mm long, for hexagon socket head screws. The datasheets print DIN 7422 (manufacturer-stated).
The sockets are Chrome Alloy Steel, chrome-plated. Hex sizes are printed in inches only. The square drive is internal, so the socket fits a 3/8" drive ratchet, handle or extension. The datasheets print no torque rating and no striking or extension instruction; they are for hand use.
Where this product is used
- Inch-series hexagon socket head screws from 1/8" to 3/8"
- Equipment built to inch sizes, including imported machinery
- Toolkits with a 3/8" drive ratchet that need a fractional hex socket
Features
- INHEX socket, 52 mm long (manufacturer-stated)
- 8 inch sizes from 1/8" to 3/8" (manufacturer-stated)
- 3/8" internal square drive (manufacturer-stated)
- Chrome Alloy Steel, chrome-plated (manufacturer-stated)
- Listed to DIN 7422 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Drive size | 3/8" square |
| Sizes | 1/8" to 3/8" |
| Length | 52 mm |
| Standard | DIN 7422 (manufacturer-stated) |
| Material | Chrome Alloy Steel, chrome-plated |
| Sizes in this range | 8 |
Key specifications
| Hex size | Model | Order no. | Length | Weight |
|---|---|---|---|---|
| 1/8" | SW49a 1/8 | 02450008 | 52 mm | - |
| 9/64" | SW49a 9/64 | 02450009 | 52 mm | 40 g |
| 5/32" | SW49a 5/32 | 02450010 | 52 mm | 40 g |
| 3/16" | SW49a 3/16 | 02450012 | 52 mm | 44 g |
| 7/32" | SW49a 7/32 | 02450014 | 52 mm | 46 g |
| 1/4" | SW49a 1/4 | 02450016 | 52 mm | 48 g |
| 5/16" | SW49a 5/16 | 02450020 | 52 mm | 55 g |
| 3/8" | SW49a 3/8 | 02450024 | 52 mm | 61 g |
A dash means the figure is not published on this page. Lengths and weights are manufacturer-stated.
Selecting the right option
Pick the hex size by the inch hexagon socket in the screw head. For metric sizes on a 3/8" drive see the Stahlwille 49 INHEX sockets, and for inch sizes on a 1/4" drive the Stahlwille 44a INHEX sockets. Turn them with a 435N 3/8" drive reversible ratchet, and the 427 3/8" drive extension bars add reach.
Related products
Related Stahlwille products: 435N 3/8" drive reversible ratchet, 427 3/8" drive extension bars, 428 3/8" drive universal joint, 432 3/8" to 1/2" drive adaptor and L-type hex keys, short series.
