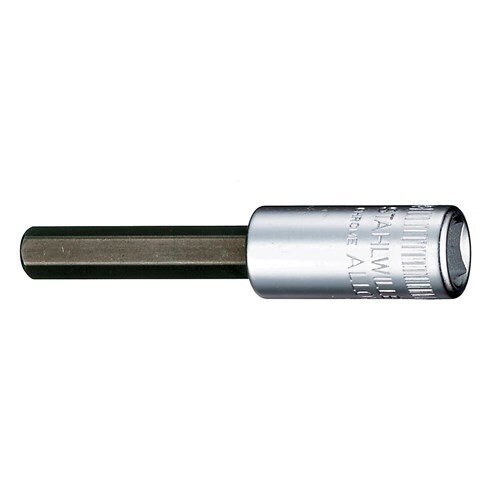

Stahlwille SW44a 3/32" INHEX Socket, 1/4" Drive, 55 mm Long
Available
The Stahlwille 44a is the inch-size INHEX socket range for 1/4" drive: 10 hex sizes from 1/16" to 1/4", each 55 mm long, for hexagon socket head screws. The datasheets print DIN 7422 (manufacturer-stated).
The sockets are Chrome Alloy Steel, chrome-plated. Hex sizes are printed in inches only, and the range includes the less common 5/64", 3/32", 7/64", 9/64" and 7/32". The square drive is internal, so the socket fits a 1/4" drive ratchet, handle or extension. The datasheets print no torque rating and no striking or extension instruction; they are for hand use.
Where this product is used
- Inch-series hexagon socket head screws from 1/16" to 1/4"
- Equipment built to inch sizes, including imported machinery and instruments
- Toolkits with a 1/4" drive ratchet that need a fractional hex socket
Features
- INHEX socket, 55 mm long (manufacturer-stated)
- 10 inch sizes from 1/16" to 1/4" (manufacturer-stated)
- 1/4" internal square drive (manufacturer-stated)
- Chrome Alloy Steel, chrome-plated (manufacturer-stated)
- Listed to DIN 7422 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Drive size | 1/4" square |
| Sizes | 1/16" to 1/4" |
| Length | 55 mm |
| Standard | DIN 7422 (manufacturer-stated) |
| Material | Chrome Alloy Steel, chrome-plated |
| Sizes in this range | 10 |
Key specifications
| Hex size | Model | Order no. | Length | Weight |
|---|---|---|---|---|
| 1/16" | SW44a 1/16 | 01450004 | 55 mm | 11 g |
| 5/64" | SW44a 5/64 | 01450005 | 55 mm | 12 g |
| 3/32" | SW44a 3/32 | 01450006 | 55 mm | - |
| 7/64" | SW44a 7/64 | 01450007 | 55 mm | - |
| 1/8" | SW44a 1/8 | 01450008 | 55 mm | 12 g |
| 9/64" | SW44a 9/64 | 01450009 | 55 mm | 13 g |
| 5/32" | SW44a 5/32 | 01450010 | 55 mm | 14 g |
| 3/16" | SW44a 3/16 | 01450012 | 55 mm | 17 g |
| 7/32" | SW44a 7/32 | 01450014 | 55 mm | 19 g |
| 1/4" | SW44a 1/4 | 01450016 | 55 mm | 24 g |
A dash means the figure is not published on this page. Lengths and weights are manufacturer-stated.
Selecting the right option
Pick the hex size by the inch hexagon socket in the screw head. For metric sizes on a 1/4" drive see the Stahlwille 44K INHEX sockets. For inch hex sizes on a 3/8" drive see the Stahlwille 49a INHEX sockets. A 415 1/4" drive reversible ratchet turns them, and the 405 1/4" drive extension bars add reach.
