Stahlwille SW54X M5 XZN Screwdriver Socket, M5, 1/2" Drive, 60 mm Long
Available
The Stahlwille 54X is a 1/2" drive XZN screwdriver socket range in 6 sizes (M5, M6, M8, M10, M14 and M16), each 60 mm long, from 67 g to 174 g (manufacturer-stated).
XZN is an internal multi-tooth (tri-square) screw profile. It is not a hexagon (INHEX) and not a Torx profile, so check the screw head before ordering. Stahlwille lists the range to DIN 2324 (manufacturer-stated), and the sockets are Chrome Alloy Steel, chrome-plated.
Where this product is used
- Driving XZN (internal multi-tooth) screws from M5 to M16
- Workshop and vehicle work on XZN fasteners
- Use with a 1/2" drive ratchet, handle or extension
Features
- 1/2" drive XZN screwdriver sockets, 6 sizes from M5 to M16 (manufacturer-stated)
- 60 mm long in every size (manufacturer-stated)
- Weights from 67 to 174 g (manufacturer-stated)
- Chrome Alloy Steel, chrome-plated (manufacturer-stated)
- Listed to DIN 2324 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Sizes in this range | 6 |
| Drive | 1/2" internal square |
| Profile | XZN (internal multi-tooth) |
| Length | 60 mm |
| Weight | 67 g to 174 g |
| Standard | DIN 2324 (manufacturer-stated) |
| Material | Chrome Alloy Steel, chrome-plated |
Key specifications
| Size | Order no. | Length | Weight |
|---|---|---|---|
| M5 | 03060005 | 60 mm | 67 g |
| M6 | 03060006 | 60 mm | 74 g |
| M8 | 03060008 | 60 mm | 79 g |
| M10 | 03060010 | 60 mm | 94 g |
| M14 | 03060014 | 60 mm | 128 g |
| M16 | 03060016 | 60 mm | 174 g |
Lengths and weights are manufacturer-stated.
Selecting the right option
Match the size to the screw head: XZN sizes are not interchangeable with hexagon or Torx. Longer reach is in the Stahlwille 1054X and 2054X XZN screwdriver sockets and the Stahlwille 3054X extra long XZN screwdriver sockets. For the 3/8" drive size range see the Stahlwille 49X XZN screwdriver sockets (3/8" drive).
Related products
Related Stahlwille products: Stahlwille 1054X and 2054X XZN screwdriver sockets, Stahlwille 3054X extra long XZN screwdriver sockets, Stahlwille 49X XZN screwdriver sockets (3/8" drive), Stahlwille 54CV RIBE CV spline sockets (1/2" drive), Stahlwille 54 INHEX sockets (1/2" drive) and Stahlwille 512-2K 1/2" drive ratchet.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
60 x M5mm socket
Model Number: SW54 XM5 - 03060005
-
60 x M6mm socket
Model Number: SW54 XM6 - 03060006
-
60 x M8mm socket
Model Number: SW54 XM8 - 03060008
-
60 x M10mm socket
Model Number: SW54 XM10 - 03060010
-

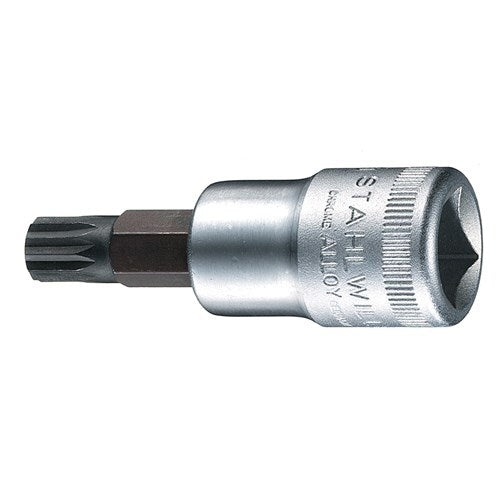

60 x M14mm socket
Model Number: SW54 XM14 - 03060014
-
60 x M16mm socket
Model Number: SW54 XM16 - 03060016
