Stahlwille SW109/2 1.4 pin punch, 1.4 mm tip
Available
The Stahlwille 109 is a pin punch in 8 sizes, with tip diameters from 0.9 mm to 5.9 mm, for driving out pins, rivets and spring pins (manufacturer-stated).
Sizes 1 to 7 have a guide sleeve (manufacturer-stated). Weights run from 7 g to 47 g, and lengths and shank diameters are shown only where Stahlwille's sources agree. Wear eye protection when striking, and use a hammer that suits the tool.
Where this product is used
- Driving out pins, rivets and spring pins
- Aligning holes during assembly
- Fitting and maintenance work on machinery and vehicles
Features
- Tip diameters 0.9, 1.4, 1.8, 2.4, 2.8, 3.4, 3.9 and 5.9 mm (manufacturer-stated)
- Sizes 1 to 7 with guide sleeve (manufacturer-stated)
- Weights from 7 g to 47 g (manufacturer-stated)
Key specifications
| Model | Tip diameter | Shank diameter | Weight | Overall length | Order no. |
|---|---|---|---|---|---|
| SW109/1 0.9 | 0.9 mm | 5 mm | 7 g | - | 70090001 |
| SW109/2 1.4 | 1.4 mm | - | 12 g | 81 mm | 70090002 |
| SW109/3 1.8 | 1.8 mm | 6 mm | 12 g | - | 70090003 |
| SW109/4 2.4 | 2.4 mm | 7 mm | 18 g | - | 70090004 |
| SW109/5 2.8 | 2.8 mm | 7 mm | 19 g | - | 70090005 |
| SW109/6 3.4 | 3.4 mm | 8 mm | 25 g | - | 70090006 |
| SW109/7 3.9 | 3.9 mm | - | 27 g | 100 mm | 70090007 |

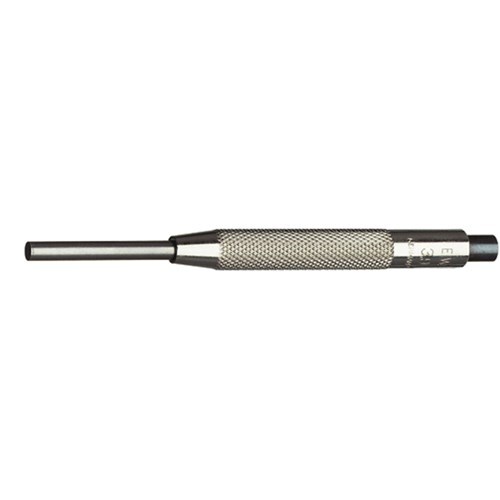

| SW109/8 5.9 | 5.9 mm | - | 47 g | 102 mm | 70090008 |
Figures are manufacturer-stated. A dash means the figure is not published on this page.
Selecting the right option
Pick the size by the pin or rivet you need to drive out: the tip diameter should be just under the pin diameter. For sets of punches see the Stahlwille 108/6 D pin punch set and the Stahlwille 105-8/6 K pin punch and centre punch set, and for marking centres see the Stahlwille 105 centre punch, 120 x 10 mm.
Related products
Related Stahlwille products: Stahlwille 108/6 D pin punch set, Stahlwille 108/6 T pin punch set, Stahlwille 105-8/6 K pin punch and centre punch set, Stahlwille 105 centre punch, 120 x 10 mm and Stahlwille 10970 ball pein hammer.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
1.4 x 82mm
Model Number: SW109/2 1.4 - 70090002
-
1.8 x 86mm
Model Number: SW109/3 1.8 - 70090003
-
2.4 x 95mm
Model Number: SW109/4 2.4 - 70090004
-
2.8 x 97mm
Model Number: SW109/5 2.8 - 70090005
-
3.4 x 100mm
Model Number: SW109/6 3.4 - 70090006
-
3.9 x 100mm
Model Number: SW109/7 3.9 - 70090007
-
5.9 x 103mm
Model Number: SW109/8 5.9 - 70090008
-
.9 x 80mm
Model Number: SW109/1 0.9 - 70090001
