Stahlwille SW44 6 mm Hex Screwdriver Socket, 1/4" Drive, 55 mm Long
Available

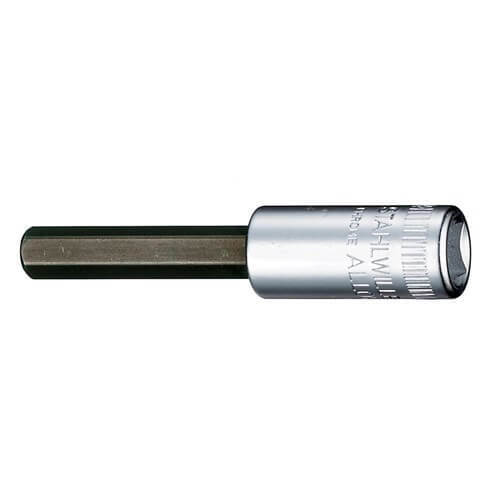

The Stahlwille 44 INHEX is a range of hexagon screwdriver sockets for 1/4" drive: 4 sizes from 3 to 6 mm, each 55 mm long, for hexagon socket screws. Each socket has a hexagon tip at one end and a 1/4" internal square drive at the other, so it turns on a 1/4" drive ratchet, handle or extension. The sockets are Chrome Alloy Steel, chrome plated, and the datasheets list DIN 7422 (manufacturer-stated).
A bit socket in a ratchet gives a faster and more compact drive than a screwdriver handle. The tip size is the hexagon width across flats, so match it to the recess in the screw head. Stahlwille's datasheets mark these sockets for hand use and print no torque rating and no striking instruction, so keep to hand-driven work.
Where this product is used
- Hexagon socket screws from 3 to 6 mm
- Hexagon socket screws where a 1/4" drive ratchet gives better access than a hex key
- Replacing a worn or missing hex screwdriver socket from a 1/4" drive set
Features
- 4 sizes from 3 to 6 mm (manufacturer-stated)
- 55 mm long (manufacturer-stated)
- 1/4" internal square drive (manufacturer-stated)
- For hexagon socket screws (manufacturer-stated)
- Chrome Alloy Steel, chrome plated (manufacturer-stated)
- DIN 7422 listed (manufacturer-stated)
- For hand use (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Hexagon sizes | 3 to 6 mm hexagon |
| Drive size | 1/4" internal square |
| Length | 55 mm |
| Standard | DIN 7422 (manufacturer-stated) |
| Operation | Hand use |
| Material | Chrome Alloy Steel |
| Finish | Chrome plated |
| Sizes in this range | 4 |
Key specifications
| Hexagon size | Model | Order no. | Length |
|---|---|---|---|
| 3 mm | SW44 3 | 01050003 | 55 mm |
| 4 mm | SW44 4 | 01050004 | 55 mm |
| 5 mm | SW44 5 | 01050005 | 55 mm |
| 6 mm | SW44 6 | 01050006 | 55 mm |
Length is manufacturer-stated.
Selecting the right option
Pick the size by the hexagon recess in the screw head. Turn it with a 415 1/4" drive reversible ratchet; the 405 1/4" drive extension bars add reach and the 407 1/4" drive universal joint lets you work at an angle. For the shorter INHEX sockets on the same drive see the 44K INHEX sockets, 1/4" drive; for Phillips and Torx tips see the 44P Phillips screwdriver sockets, 1/4" drive and the 44KTX Torx screwdriver sockets, 1/4" drive.
Related products
Related Stahlwille products: 415 1/4" drive reversible ratchet, 405 1/4" drive extension bars, 407 1/4" drive universal joint, 409 1/4" to 3/8" drive adaptor, 44K INHEX sockets, 1/4" drive and 44P Phillips screwdriver sockets, 1/4" drive.
