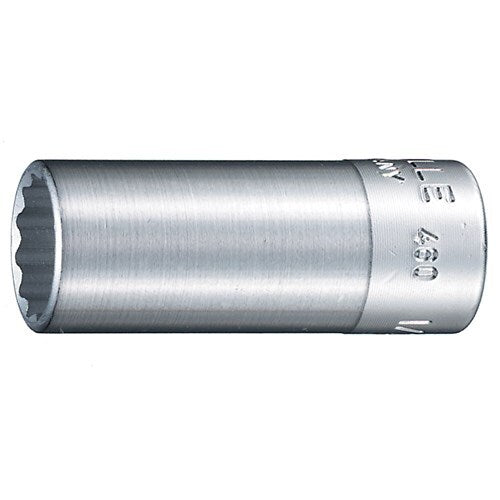

Stahlwille SW460a 1/2" Bi-Hex Socket, 3/8" Drive, 44 mm Long
Available
The Stahlwille 460a is a short range of five 3/8" drive bi-hex sockets in inch sizes from 1/4 to 1/2". The sockets are 32, 38 or 44 mm long, a step longer than the same sizes in the 45a (manufacturer-stated).
The bi-hex (double hexagon, 12-point) profile carries Stahlwille's AS-Drive (Anti-Slip Drive) form, which the maker says transmits high forces to the flats of nuts and bolts without damaging them. The sockets are HPQ steel, chrome-plated, and Stahlwille specifies hand operation only. Stahlwille lists the range to SAE AS 954-E / S.B.A.C. AS 40610/40611 / ASME B 107.1 (manufacturer-stated).
Where this product is used
- Inch-series fasteners from 1/4 to 1/2" where a little extra reach is wanted
- Work specified to the SAE AS 954-E and S.B.A.C. AS 40610/40611 standards listed for this range (manufacturer-stated)
- Hand-operated work with 3/8" drive ratchets and extension bars
Features
- 3/8" internal square drive, inch sizes 1/4 to 1/2" (manufacturer-stated)
- Lengths of 32, 38 and 44 mm (manufacturer-stated)
- Bi-hex (12-point) profile with AS-Drive anti-slip form (manufacturer-stated)
- HPQ steel, chrome-plated (manufacturer-stated)
- Hand operation only (manufacturer-stated)
- Listed to SAE AS 954-E / S.B.A.C. AS 40610/40611 / ASME B 107.1 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Square drive | 3/8" |
| Sizes | 1/4 to 1/2" |
| Length | 32 to 44 mm |
| Profile | Bi-hex (double hexagon, 12-point) with AS-Drive profile |
| Standard | SAE AS 954-E / S.B.A.C. AS 40610/40611 / ASME B 107.1 (manufacturer-stated) |
| Material | HPQ steel, chrome-plated |
| Operation | Hand operation only |
| Sizes in this range | 5 |
Key specifications
| Size (across flats) | Order no. | Length | Weight |
|---|---|---|---|
| 1/4" | 02620016 | 32 mm | 21 g |
| 5/16" | 02620020 | 32 mm | 22 g |
| 3/8" | 02620024 | 38 mm | 29 g |
| 7/16" | 02620028 | 38 mm | 33 g |
| 1/2" | 02620032 | 44 mm | 44 g |
Lengths and weights are manufacturer-stated.
Selecting the right option
In the same sizes from 1/4 to 1/2" the Stahlwille 45a 3/8" Drive Bi-Hex Sockets is 24 to 30 mm long, so the 460a gives more reach in every size. For the full 54 to 65 mm long version see the Stahlwille 46a 3/8" Drive Long Bi-Hex Sockets. The 460a stops at 1/2"; for larger inch sizes use the 45a.
Related products
Related Stahlwille 3/8" drive tools: Stahlwille 435QR N 3/8" Drive QuickRelease Fine-Tooth Ratchet, Stahlwille 435-2K 3/8" Drive Reversible Ratchet, Stahlwille 427 3/8" Drive Extension Bars, Stahlwille 431 Reducing Adaptor, Stahlwille 424-2K 3/8" Drive Swivel-Head Handle and Stahlwille 45CL Clip Strips for Socket Retention.
