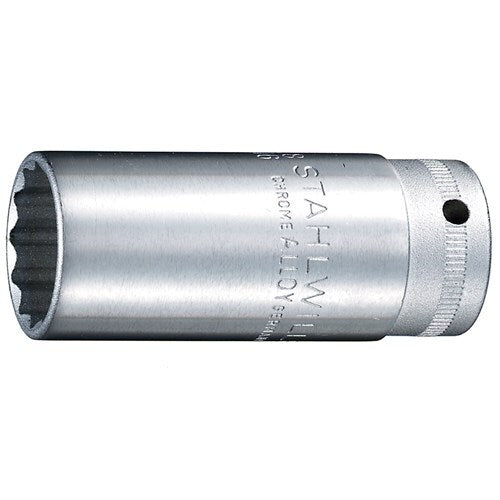

Stahlwille SW46a 1" Long Bi-Hex Socket, 3/8" Drive, 65 mm
Out of stock
The Stahlwille 46a is the long version of the 3/8" drive inch bi-hex socket, in 14 sizes from 1/4 to 1". Lengths step from 54 to 60 to 65 mm with the size (manufacturer-stated).
Stahlwille's datasheets call this series the long version, and its 2017 brochure lists it as extra deep. The bi-hex (double hexagon, 12-point) profile carries Stahlwille's AS-Drive (Anti-Slip Drive) form, which the maker says transmits high forces to the flats of nuts and bolts without damaging them. The sockets are HPQ steel, chrome-plated, and Stahlwille specifies hand operation only. The range is listed to ASME B 107.1 / Fed. Spec. GGG-W-641 / SAE AS 954-E (manufacturer-stated).
Where this product is used
- Inch-series fasteners from 1/4 to 1" that sit below a surface or on a stud
- Reaching a nut that a standard 3/8" socket cannot clear
- Hand-operated work with 3/8" drive ratchets and extension bars
Features
- 3/8" internal square drive, inch sizes 1/4 to 1" (manufacturer-stated)
- Lengths of 54, 60 and 65 mm (manufacturer-stated)
- Bi-hex (12-point) profile with AS-Drive anti-slip form (manufacturer-stated)
- HPQ steel, chrome-plated (manufacturer-stated)
- Hand operation only (manufacturer-stated)
- Listed to ASME B 107.1 / Fed. Spec. GGG-W-641 / SAE AS 954-E (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Square drive | 3/8" |
| Sizes | 1/4 to 1" |
| Length | 54 to 65 mm |
| Profile | Bi-hex (double hexagon, 12-point) with AS-Drive profile |
| Standard | ASME B 107.1 / Fed. Spec. GGG-W-641 / SAE AS 954-E (manufacturer-stated) |
| Material | HPQ steel, chrome-plated |
| Operation | Hand operation only |
| Sizes in this range | 14 |
Key specifications
| Size (across flats) | Order no. | Length | Weight |
|---|---|---|---|
| 1/4" | 02420016 | 54 mm | 33 g |
| 5/16" | 02420020 | 54 mm | 35 g |
| 3/8" | 02420024 | 54 mm | 45 g |
| 7/16" | 02420028 | 54 mm | 53 g |
| 1/2" | 02420032 | 54 mm | 64 g |
| 9/16" | 02420034 | 60 mm | - |
| 19/32" | 02420035 | 60 mm | 84 g |
| 5/8" | 02420036 | 60 mm | 81 g |
| 11/16" | 02420038 | 65 mm | 114 g |
| 3/4" | 02420040 | 65 mm | 137 g |
| 13/16" | 02420042 | 65 mm | 130 g |
| 7/8" | 02420044 | 65 mm | 184 g |
| 15/16" | 02420046 | 65 mm | 195 g |
| 1" | 02420048 | 65 mm | 205 g |
A dash means no weight is published for that size on this page. Lengths and weights are manufacturer-stated.
Selecting the right option
Choose the 46a when reach is the problem and the fastener is an inch size. The standard-length Stahlwille 45a 3/8" Drive Bi-Hex Sockets runs from 24 to 35 mm, and the Stahlwille 460a 3/8" Drive Bi-Hex Sockets sits between the two for sizes up to 1/2". For metric sizes at the long length see the Stahlwille 46 3/8" Drive Long Bi-Hex Sockets.
