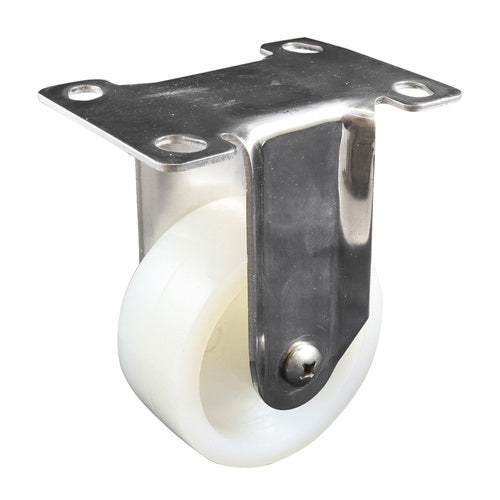

EasyRoll G7 Stainless Fixed Plate Castor, White Nylon 75 mm | G73AS48G75

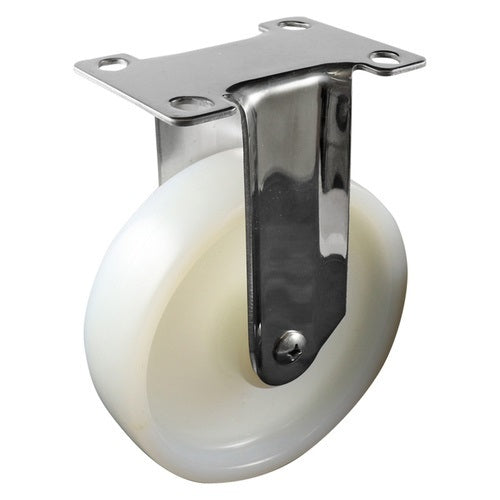

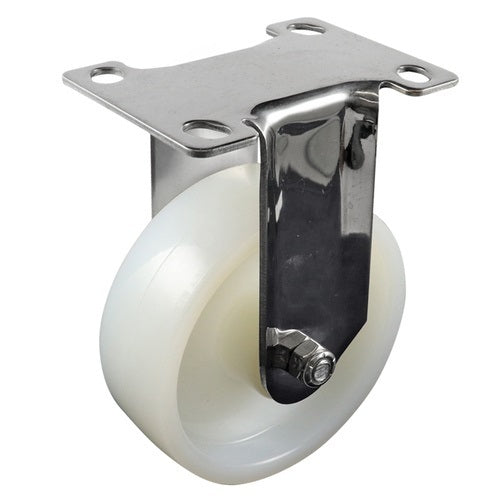

The EasyRoll G7 series fixed plate castor is fitted with a white nylon wheel and is available in 75, 100 and 125 mm wheel diameters. Load capacity is 80 kg to 100 kg per castor depending on the wheel size. The top plate is 70 x 95 mm with hole centres of 45-52 x 75 mm.

The G7 series is suited to medical trolleys and equipment; hospital beds; and medicine trolleys. It has double headset bearings, stainless steel precision wheel bearings.

Where this product is used

• Medical trolleys and equipment
• Hospital beds
• Medicine trolleys
• Food delivery trolleys
• Display and shopfitting equipment
• Commercial and domestic furniture

Features

• White nylon wheel in 75, 100 and 125 mm
• Load capacity 80 kg to 100 kg per castor
• Stainless steel version of the G6 institutional castor
• Double headset bearings for strength and a smooth swivelling action
• Headset seals and wheel guards protect the bearings from dust and foreign matter
• Non-marking rubber and urethane wheels with stainless steel precision bearings

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. EHI rates nylon wheels as follows: fair shock absorbency and floor protection, excellent load capacity and push effort and good durability. It suits smooth concrete, is strong and economical and may be noisy. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
