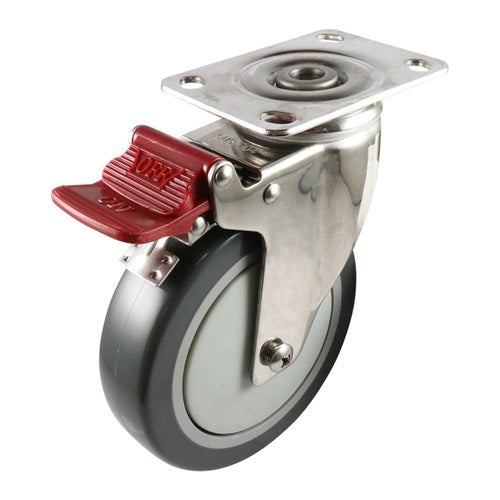

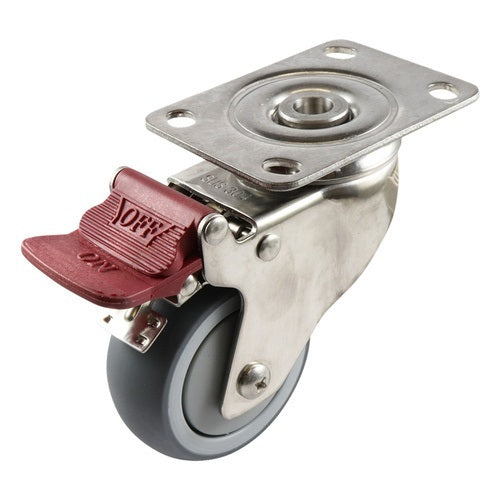

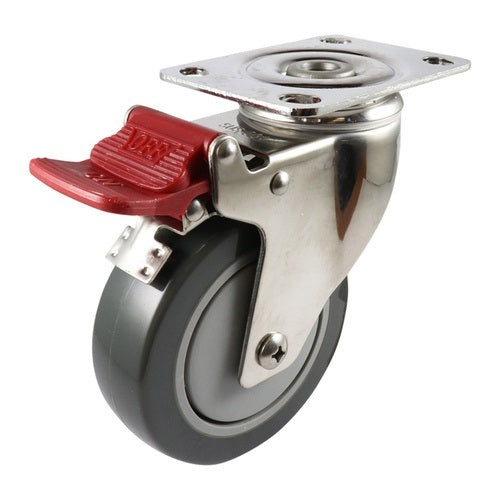

EasyRoll G7 Stainless Swivel Plate Castor with Brake, Urethane 75 mm | G72TS63K75

The EasyRoll G7 series swivel plate castor with brake is fitted with a grey urethane wheel and is available in 75, 100 and 125 mm wheel diameters. Load capacity is 80 kg to 100 kg per castor depending on the wheel size. The top plate is 70 x 95 mm with hole centres of 45-52 x 75 mm.

The G7 series is suited to medical trolleys and equipment; hospital beds; and medicine trolleys. It has double headset bearings, stainless steel precision wheel bearings.

Where this product is used

• Medical trolleys and equipment
• Hospital beds
• Medicine trolleys
• Food delivery trolleys
• Display and shopfitting equipment
• Commercial and domestic furniture

Features

• Grey urethane wheel in 75, 100 and 125 mm
• Load capacity 80 kg to 100 kg per castor
• Total lock brake stops both swivel and wheel rotation
• Stainless steel version of the G6 institutional castor
• Double headset bearings for strength and a smooth swivelling action
• Headset seals and wheel guards protect the bearings from dust and foreign matter
• Glass-filled nylon brake assembly
• Non-marking rubber and urethane wheels with stainless steel precision bearings

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. A total lock brake stops both the swivel action and the wheel rotation, which EHI describes as the safest of all brake types. EHI rates polyurethane wheels as follows: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. EHI describes it as the best all-round choice and suited to all surfaces, including irregular ones. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
