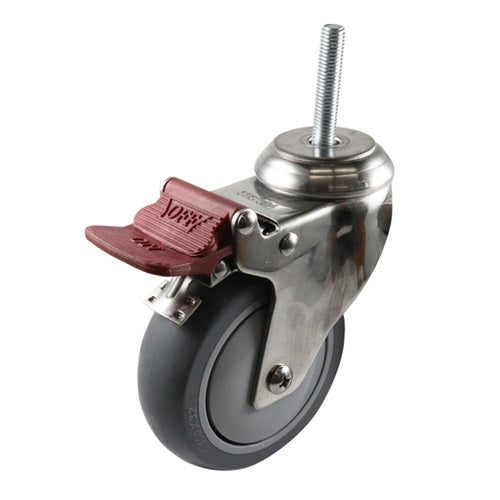

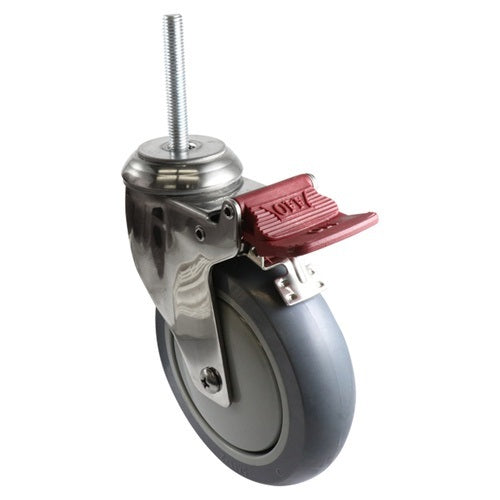

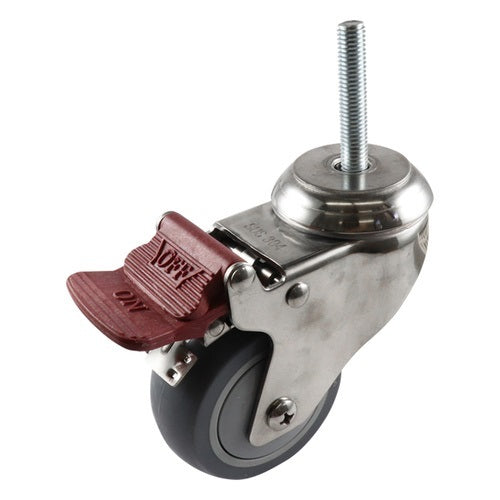

EasyRoll g7 series stainless swivel threaded stem castor
Out of stock
The EasyRoll G7 series swivel threaded stem castor with brake is fitted with a grey urethane wheel and is available in 75, 100 and 125mm wheel diameters. Load capacity is 80kg to 100kg per castor depending on the wheel size. It has a threaded stem (1/2" (M12)) fitted at the top.
The G7 series is suited to medical trolleys and equipment, hospital beds and medicine trolleys. It has double headset bearings, stainless steel precision wheel bearings.
Where this product is used
- Medical trolleys and equipment
- Hospital beds
- Medicine trolleys
- Food delivery trolleys
- Display and shopfitting equipment
- Commercial and domestic furniture
Features
- Grey urethane wheel in 75, 100 and 125mm
- Load capacity 80kg to 100kg per castor
- Total lock brake stops both swivel and wheel rotation
- Stainless steel version of the G6 institutional castor
- Double headset bearings for strength and a smooth swivelling action
- Headset seals and wheel guards protect the bearings from dust and foreign matter
- Glass-filled nylon brake assembly
- Non-marking rubber and urethane wheels with stainless steel precision bearings
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Series | G7 |
| Mounting | Swivel threaded stem |
| Brake | Total lock |
| Wheel | Grey Urethane wheel |
| Wheel diameter | 75, 100 and 125mm |
| Tread width | 32mm |
| Load capacity per castor | 80kg to 100kg |
| Overall height | 111mm to 161mm |
| Bolt size | 1/2" (M12) |
| Bearings | Double headset bearings, stainless steel precision wheel bearings |
| Finish | Stainless steel |
Choosing the right option
Check the bolt size and the mounting hole or tube in your equipment before you order. A total lock brake stops both the swivel action and the wheel rotation, which is the safest of all brake types. Polyurethane wheels: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. It is the best all-round choice and suited to all surfaces, including irregular ones. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
See also: EasyRoll G7 Series Stainless Steel Swivel Stem Castor - Urethane Wheel, Grey, EasyRoll G7 Series Stainless Steel Fixed Plate Castor - Urethane Wheel, Grey, EasyRoll G7 Series Stainless Swivel Bolt Hole Castor - Urethane Wheel, Grey, EasyRoll G7 Series Stainless Swivel Bolt Hole Castor with Brake - Urethane Wheel, Grey.
| Option | Part number | Wheel diameter (mm) | Tread width (mm) | Load capacity (kg) | Overall height (mm) |
|---|---|---|---|---|---|
| 75mm | G74TS63K75A | 75 | 32 | 80 | 111 |
| 100mm | G74TS63K100A | 100 | 32 | 100 | 135 |
| 125mm | G74TS63K125A | 125 | 32 | 100 | 161 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
EasyRoll G7 Series Stainless Swivel Stem Castor with Brake - Urethane Wheel, Grey: 75
SKU: A0049253 | Model: G74TS63K75A
EasyRoll G74TS63K75A: g7 series stainless swivel threaded stem castor with brake, wheel diameter (mm) 75. Load Capacity (kg): 80. Tyre/Wheel Material: Urethane.
